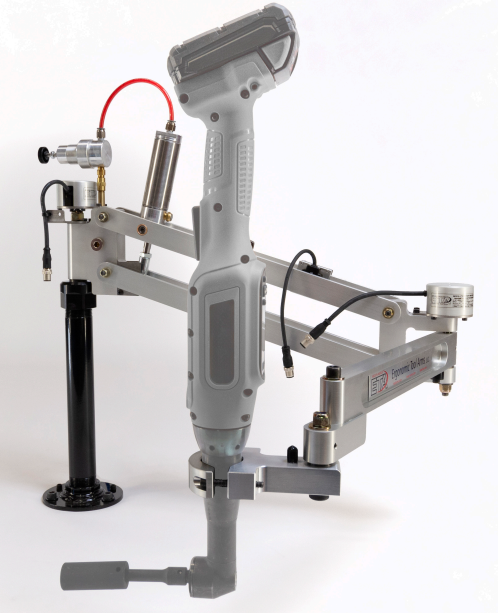

ETA Smart Arms: Products
Good Design, Precision Machining, and Careful Assembly make ETA the Smart-Arm solution for many years of efficient production.
All ETA Tool Arms are covered by a 5-Year Warranty against excessive wear and/or part breakage. This 5 Year Warranty includes all bearings, bushings, shafts, and float cylinder for an unlimited amount of use cycles! See SmartArms.com/warranty for details.
• Designed specifically, and priced economically for INTEGRATORS and MACHINE BUILDERS who provide their own controls.
• Feedback of X and Y position on all models.
• Z axis position analog feedback available with all models. This option is also available to quickly add on to any existing ETA Arm.
• Pitch and yaw analog feedback also available for driving fasteners at off-vertical angles.
• 7 Standard Frame Sizes Eliminate Torque Reaction
-up to 125 Nm (1,100 in-lbs), and Weight of DC Tools
-up to 25 lbs (11.4 Kg)
• 21 Standard Tool Holders.
• Also used with Rivet-Nut and Blind Rivet Tools.
• 4 Encoder Output Options offered; plus Encoder-Ready Models.
• Shipped Fully Assembled via UPS Ground, ready to install.
• Quick Delivery!
• Useful for error-proofing and integrating IIoT Connected Machines.
• Customized Arms also available.
• Made in U.S.A.
Tool Holders
UV- Universal Vertical
For fastening Vertically with any inline tool from 1-⅛″ (28.6mm) to 2.0″ (50.8mm) diameter. UV is 1.0" thick for stability. Weight 0.8 lbs (0.4 Kg)
TUV- Thin Universal Vertical
For fastening Vertically with any inline tool. Identical to UV except it is only 0.540” (13.7mm) thick for tools with less clamping area.
Weight 0.5 lbs (0.2 Kg)
RAV- Right Angle Vertical
For Right Angle tools driving fasteners downward or upward. Set Screw allows 12 different handle positions.
Weight 1.6 lbs (0.7 Kg)
PS- Pistol Spin
For pistol or Inline tool bodies held on the horizontal plane while allowing them to spin sideways for axial alignment.
Weight 1.5 lbs (0.7 Kg)
PT- Pistol Tilt
For pistol or Inline tools held in a basic horizontal attitude. Allows tool to tilt +/- 20 degrees from the horizontal plane, and spin sideways for axial alignment.
Weight 1.9 lbs (0.9 Kg)
SRA- Simple Right Angle
For right angle tools, fastening horizontally with handle upward. Allows tool to swing freely 280 degrees for easy axial alignment with your fasteners.
Weight 1.5 lbs (0.7 Kg)
RAH- Right Angle Horizontal
For Right Angle tools driving fasteners horizontally. Set screw allows 12 different handle positions.
Weight 2.3 lbs (1.0 Kg)
RAHV- Right Angle Horizontal and Vertical
For driving vertical fasteners and horizontal fasteners in the same work zone using the same right angle tool. Set screw allows 12 different handle positions.
Weight 3.75 lbs (1.7 Kg)
IPHV- Inline or Pistol Horizontal and Vertical
For driving vertical fasteners and horizontal fasteners in the same work zone using the same Inline or Pistol tool.
Weight 3.2 lbs (1.5 Kg)
FR- Flip and Rotate
2 axis swivel for Inline or Pistol tools fastening in any direction without torque reaction.
Weight 1.7 lbs (0.8 Kg)
FRS- Flip and Rotate with Stops
The same mechanics as the FR with the addition of stop plates on both axis allowing adjustment of rotational limits.
Weight 2.1 lbs (1 Kg)
EXUV- Extended Universal Vertical
For fastening Vertically with any inline tool. Similar to UV-TH with 3″ of additional reach.
Weight 1.3 lbs (0.6 Kg)
LDUV- Large Diameter Universal Vertical
For larger tools and other large components 2.0″ (50.8mm) to 4.0″(101.6mm) in diameter.
Weight 1.3 lbs (0.6 Kg)
NB/NBBR- Needle Bearing / Needle Bearing with Brake
For Inline, Inline offset, Crows Foot and Right Angle Tools; enabling them to rotate in place.
Weight: NB = 2.6 lbs (1.2 Kg)
NBBR = 3.6 lbs (1.6 Kg)
ASG- SP2500 Adapter
ETA adapter for Vertical Fastening with X-PAQ Tools. The mounting loop #ASG-AC2500-TML, purchased from ASG, fits directly onto this adapter.
Weight 0.6 lbs (0.3 Kg)
QXP- For IR QX DC Pistol
Handle and Comfort Trigger spin 360 degrees for improved ergonomics.
Works with QXC, QXX and QXN models.
Makes QX Pistol work like an inline for vertical fastening.
Weight 4.4 lbs (2 Kg)
QE4 / QE6 / QE8
For Vertical Fastening with IR Inline DC Tools that have 2-bolt Flanges
QE4 Flange holes on 55.6mm (2.19") Centers
QE6 Flange holes on 66.7mm (2.63") Centers
QE8 Flange holes on 76.2mm (3.0") Centers
Weight 0.8 lbs (0.4 Kg)
ST61- For Atlas Copco DC Inline Tools
For Vertical Fastening with Reaction Bar #420 234 02 typically included with applicable Atlas tools.
Weight 1.0 lbs (0.45 Kg)
Encoder Options
There are 2 encoders on each arm to provide X/Y position feedback.
One at the Shoulder pivot and one at the Elbow pivot.
Learn more about ETA Tool Arm Encoders Options Here
Z Axis Position Feedback
Most applications require only 2-axis position feedback ( X & Y) to error proof manual assembly operations; but sometimes the vertical or Z axis position is needed for location verification when fasteners are being driven horizontally. The Z axis can also be important if you are assembling components in layers, or fasteners are located at various heights or angles off-vertical.
ETA offers a simple solution for applications requiring Z axis feedback. The ZAM and ZAV sensors are electronic inclinometers that measure the tilt of the ETA Parallel Rack as the arm moves up and down. They can be ordered with a new smart arm, or purchased separately and added to any ETA arm at any time. The inclinometer simply clamps onto one of the parallel arms of any ETA model.*
ZAV- Z Axis 0.5-9.5 V Analog
Electronic Inclinometer for Z Axis position feedback. 0.5-9.5 V Analog. Accuracy is 0.3 degrees. Supply Voltage is 12-24 VDC. M12, 4 pin male connector matches AVSA encoder pin out.
ZAM- Z Axis 4-20 mA Analog
Electronic Inclinometer for Z Axis position feedback. 4-20 mA Analog. Accuracy is 0.3 degrees. Supply Voltage is 12-24 VDC. M12, 4 pin male connector matches AMSA encoder pin out.
Other Accessories and Options
OM- Overhead Mount
Any ETA arm can be built and shipped ready to be field mounted from overhead.
RS2- Shoulder Rotational Stop
Limit ETA Shoulder Block rotation with two movable stops that can be set in any of 24 stop points, allowing custom rotation ranges on any ETA Arm.
IRSH- In-Line Remote Start Handle
Enhance the ergonomics of an assembly station by providing more control than most standard inline tool levers provide. Handle grip and low-force Trigger Hat rotate 360°. Not for use on 306, 506, or 806 Frames. Weight 3.3 lbs (1.5 Kg)
B-250-0-Heavy Duty Mounting Base Kit
Heavy Duty Base Kit for floor or overhead mount. 8” diameter forged and welded base plate with three holes for ½” (12mm) bolts. Adds rigidity when mounting surface is more than 2 feet from the arm’s shoulder block. Uses 2-1/2 NPT black iron pipe and a short piece of 1-1/4 NPT black iron pipe, typically supplied by others.
ZF- Zero Fold Elbow
Ordered as a left hand or right hand fold, this option allows forearm to fold completely flat to the parallel rack and is passively held in that position between assembly cycles with adjustable magnetic park. Not for use on 306, 506, or 806 Frames.
