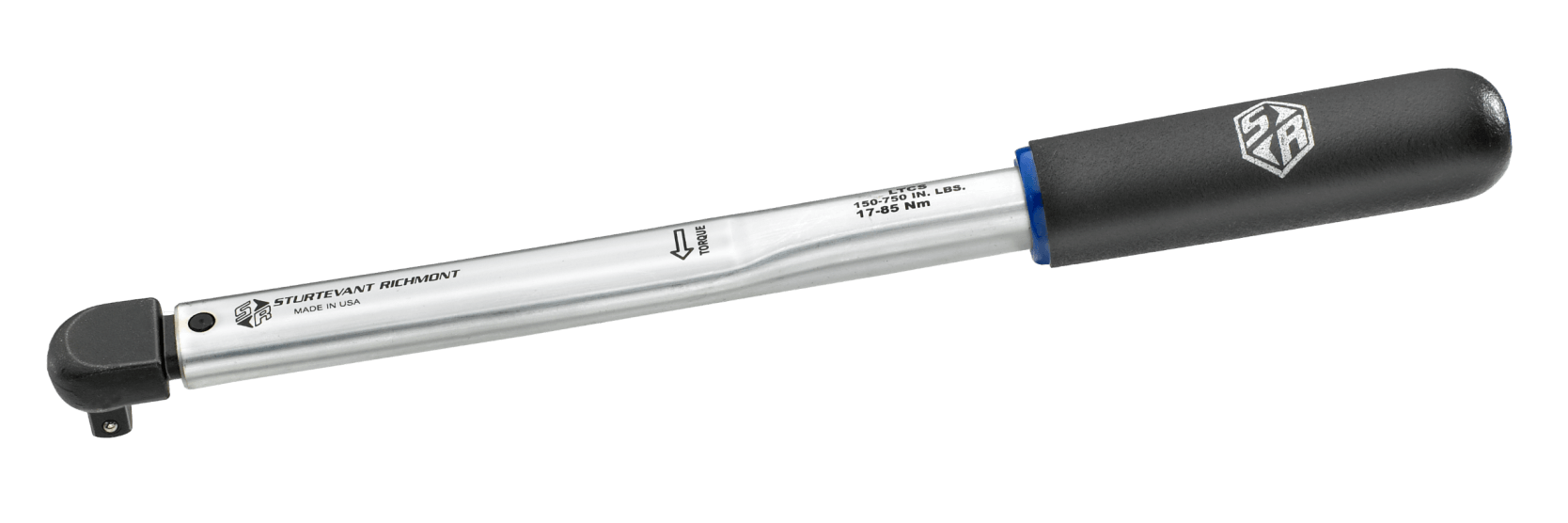

Sturtevant-Richmont LTCS Series
Square Drive Preset
- This wrench is identical to the LTCR wrench except it is built with a fixed square drive.
- Adjustments to torque settings can only be made with a Combination Adjusting and Release Tool (CART) to prevent tampering on the production line.
Wrenches:
| Model Number | Part Number | Description | Torque Range | Drive Type |
| Sturtevant Richmont LTCS 7200 I | 810153 | PRESET TORQUE CLICK WRENCH | 1400-7200 IN-LBS (163-813 NM) | 1400-7200 in-lb (163-813 Nm) | 3/4" Square Drive (Fixed Head) |
| Sturtevant Richmont LTCS 50 I | 810168 | PRESET TORQUE CLICK WRENCH | 10-50 IN-LBS (1.2-6 NM) | 10-50 in-lb (1.2-6 Nm) | 1/4" Square Drive (Fixed Head) |
| Sturtevant Richmont LTCS 150 I | 810170 | PRESET TORQUE CLICK WRENCH | 30-150 IN-LBS (3.4-17 NM) | 30-150 in-lb (3.4-17 Nm) | 3/8" Square Drive (Fixed Head) |
| Sturtevant Richmont LTCS 300 I | 810171 | PRESET TORQUE CLICK WRENCH | 60-300 IN-LBS (7-34 NM) | 60-300 in-lb (7-34 Nm) | 3/8" Square Drive (Fixed Head) |
| Sturtevant Richmont LTCS 750 I | 810172 | PRESET TORQUE CLICK WRENCH | 150-750 IN-LBS (17-85 NM) | 150-750 in-lb (17-85 Nm) | 3/8" Square Drive (Fixed Head) |
| Sturtevant Richmont LTCS 1800 I | 810174 | PRESET TORQUE CLICK WRENCH | 360-1800 IN-LBS (41-204 NM) | 360-1800 in-lb (41-204 Nm) | 1/2" Square Drive (Fixed Head) |
| Sturtevant Richmont LTCS 3600 I | 810485 | PRESET TORQUE CLICK WRENCH | 720-3600 IN-LBS (80-407 NM) | 720-3600 in-lb (80-407 Nm) | 3/4" Square Drive (Fixed Head) |
