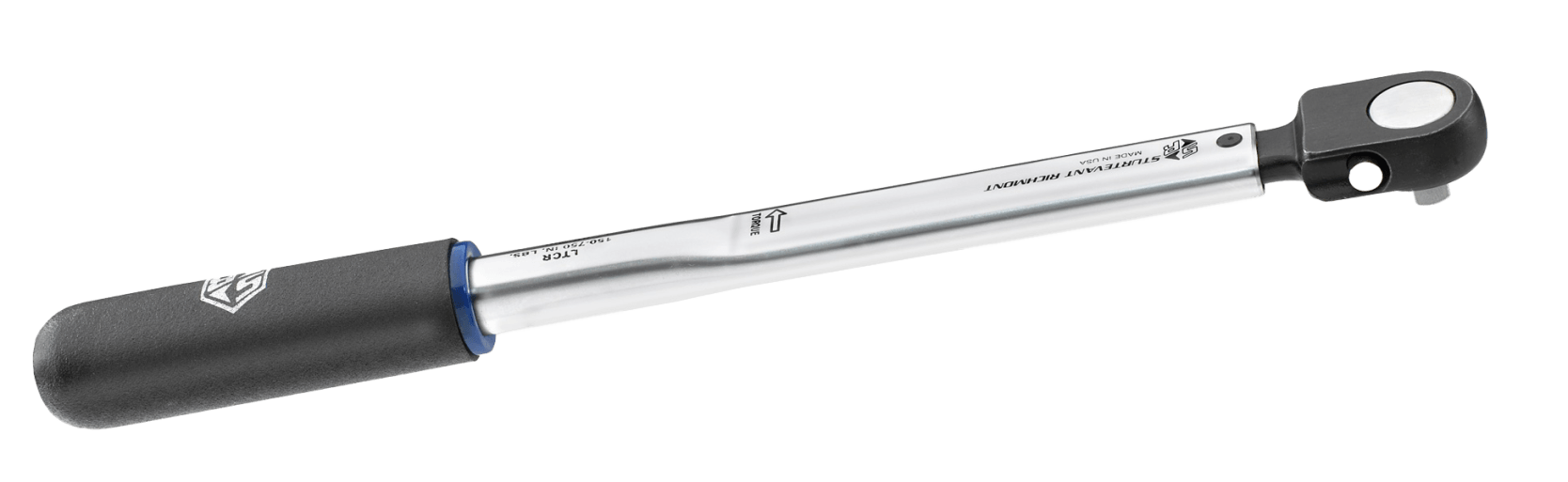

Sturtevant-Richmont LTCR Series
Square Drive Ratchet Preset
- Designed specifically for use on production lines where many fasteners are to be tightened to the same torque.
- For preset handle extension order PN 853601 for wrenches of 3000 in. lbs. or less.
- Light weight new comfort grip provides superior ergonomics, reducing operator fatigue.
- Accuracy of +/- 4% meets or exceeds ASME B107.300 - 2010 and ISO 6789, offering consistent assembly quality.
- Wrench can be calibrated using any unit of torque measure.
- Ball bearing rockover assembly assures smooth operation, enhances repeatability, increases cycle life of wrench, and helps control ownership costs.
- Excellent audible and tactile impulse when preset torque is achieved.
- Slide pin ratchet is extremely strong and durable.
- Torque tester must be used to set the torque value.
Wrenches:
| Model Number | Part Number | Description | Torque Range | Drive Type |
| Sturtevant Richmont LTCR 750 I | 810055 | PRESET TORQUE CLICK WRENCH | 150-750 IN-LBS (17-85 NM) | 150-750 in-lb (17-85 Nm) | 3/8" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 1800 I | 810056 | PRESET TORQUE CLICK WRENCH | 360-1800 IN-LBS (41-204 NM) | 360-1800 in-lb (41-204 Nm) | 1/2" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 300 I | 810058 | PRESET TORQUE CLICK WRENCH | 60-300 IN-LBS (7-34 NM) | 60-300 in-lb (7-34 Nm) | 3/8" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 3000 I | 810059 | PRESET TORQUE CLICK WRENCH | 600-3000 IN-LBS (68-339 NM) | 600-3000 in-lb (68-339 Nm) | 1/2" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 750 I | 810060 | PRESET TORQUE CLICK WRENCH | 150-750 IN-LBS (17-85 NM) | 150-750 in-lb (17-85 Nm) | 1/2" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 50 I | 810400 | PRESET TORQUE CLICK WRENCH | 10-50 IN-LBS (1.2-6 NM) | 10-50 in-lb (1.2-6 Nm) | 1/4" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 150 I | 810401 | PRESET TORQUE CLICK WRENCH | 30-150 IN-LBS (3.4-17 NM) | 30-150 in-lb (3.4-17 Nm) | 1/4" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 1200 I | 810402 | PRESET TORQUE CLICK WRENCH | 240-1200 IN-LBS (27-136 NM) | 240-1200 in-lb (27-136 Nm) | 3/8" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 3000 I | 810430 | PRESET TORQUE CLICK WRENCH | 600-3000 IN-LBS (68-339 NM) | 600-3000 in-lb (68-339 Nm) | 3/4" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 3600 I | 810138 | PRESET TORQUE CLICK WRENCH | 1200-3600 IN-LBS (81-407 NM) | 1200-3600 in-lb (81-407 Nm) | 3/4" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 7200 I | 810151 | PRESET TORQUE CLICK WRENCH | 1400-7200 IN-LBS (163-813 NM) | 1400-7200 in-lb (163-813 Nm) | 3/4" Square Drive (Ratchet Head) |
| Sturtevant Richmont LTCR 150 I | 810589 | PRESET TORQUE CLICK WRENCH | 30-150 IN-LBS (3.4-17 NM) | 30-150 in-lb (3.4-17 Nm) | 3/8" Square Drive (Ratchet Head) |
