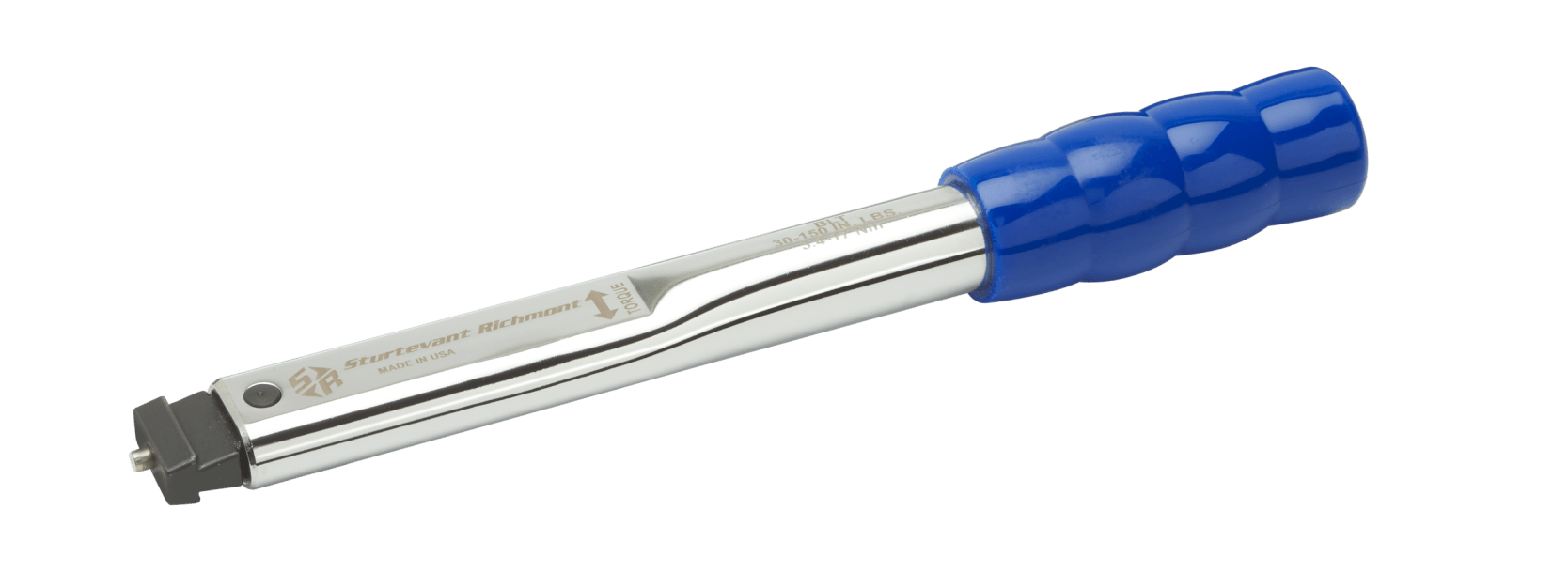

Sturtevant-Richmont BLT Series
Bidirectional Interchangeable Head Preset
Bi-directional preset interchangeable head torque wrenches are ideal for applications where clearance and fitment are an issue. The BLT gives you the versatility of turning the wrench over and using it in the ccw direction to achieve final torque.
These needs are common in assembly and standardized field maintenance operations, and the BLT-Series tools are superb for these types of applications.
- SR Dovetail Head connects to over 200 SR Interchangeable Heads. All of our interchangeable heads fit on all of our dovetail wrenches, meaning you don’t have to buy multiple wrenches and heads in the same torque range to cover all fastener sizes.
- BLT-Series torque wrenches have CW +/- 4% Indicated Value Accuracy and CCW +/- 6% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789.
- All of our tools provide torque measurement in the clockwise direction. The BLT preset click wrench measures torque in both clockwise and counterclockwise directions.
- LTC 300 | OHT features smaller dimensions for access in tighter spaces.
Wrenches
| Model Number | Part Number | Description | Torque Range | Drive Type | Additional Feature |
Additional Feature
|
| Sturtevant Richmont BLT 50 I | 847100 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 10-50 IN-LBS (1.2-6 NM) | 10-50 in-lb (1.2-6 Nm) | Interchangeable Head | Bidirectional | |
| Sturtevant Richmont BLT 150 I | 874011 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 30-150 IN-LBS (3.4-17 NM) | 30-150 in-lb (3.4-17 Nm) | Interchangeable Head | Bidirectional | |
| Sturtevant Richmont BLT 750 I | 874013 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 150-750 IN-LBS (17-85 NM) | 150-750 in-lb (17-85 Nm) | Interchangeable Head | Bidirectional | Ratchet |
| Sturtevant Richmont BLT 1800 I | 874014 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 360-1800 IN-LBS (41-204 NM) | 360-1800 in-lb (41-204 Nm) | Interchangeable Head | Bidirectional | Ratchet |
| Sturtevant Richmont BLT 300 I | 874016 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 60-300 IN-LBS (7-34 NM) | 60-300 in-lb (7-34 Nm) | Interchangeable Head | Bidirectional | |
| Sturtevant Richmont BLT 1800 I ERGO | 874054 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 360-1800 IN-LBS (41-204 NM) ERGO | 360-1800 in-lb (41-204 Nm) Ergo | Interchangeable Head | Bidirectional | Ratchet |
| Sturtevant Richmont BLT 4800 I | 874137 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 960-4800 IN-LBS (108-542 NM) | 960-4800 in-lb (108-542 Nm) | Interchangeable Head | Bidirectional | Ratchet |
| Sturtevant Richmont BLT 3600 I | 874334 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 720-3600 IN-LBS (81-407 NM) | 720-3600 in-lb (81-407 Nm) | Interchangeable Head | Bidirectional | Ratchet |
| Sturtevant Richmont BLT 300 I OHT | 874574 | BIDIRECTIONAL PRESET TORQUE CLICK WRENCH | 150-300 IN-LBS (17-34 NM) | 150-300 in-lb (17-34 Nm) | Interchangeable Head | Bidirectional |
