- Joint analysis
- Prototype
- Material studies
- Pre-series
- Onboard results analysis
- Onboard traces
- Results and traces analysis on PC with Explorer software

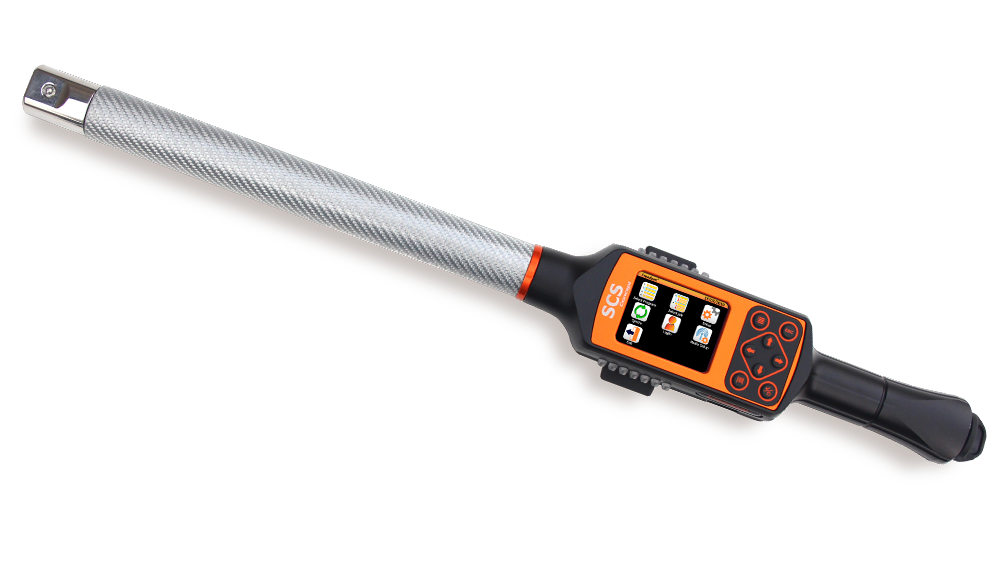

SCS Concepts: Freedom 4 Quality
Freedom4 Quality – Torque & Angle Wrench
Advanced solution for quality control from 0 to 1 200 N·m
Freedom4 is the perfect wrench for Quality Control of tightening processes, for joint analysis, for the determination of the joint stiffness, for production as a backup of power tools, or for small productions, thanks to the possibility to perform all the Torque/Angle tightening strategies.
Compared to the Freedom3, the wrench recognized by the market as the most advanced and intelligent tool, it features advanced features that no other competitors offer on their tightening tools:
-Obstacle detection: it the wrench body hits an obstacle during the tightening operation, the wrench automatically detects the problem and advice the operator with a corrective action.
-Automatic wrong handling recognition: Freedom4 wrench detects also if the operator is handling the wrench with the hand in the wrong position, providing a warning message in case of not correct handling.
These features, combined with all other connectivity functions already present in the Freedom3, bring the Freedom4 wrench as the new reference for error proof assembly and quality control on a production line.
The wrench hardware has been completely redesigned, as well as the main menu interface, with new colored icons. The extremely rigid Carbon extension reduces the weight and improves ergonomy.
It offers integrated barcode scanner to scan the production VIN (Vehicle Identification Number), integrated radio (WiFi or Bluetooth) to interface with the connected device.
End-fitting tool is provided, with improved connection system that strengthen the reliability.
LAB - Laboratory
SPC - Quality Control
- Residual torque check on a production line
- Route and job management via software (SQnet+ or QS torque)
- Onboard results analysis
- Data traceability
- VIN management
- Onboard traces
- Results, traces and statistic analysis on PC with SQNET + software
Features
- Hand position detection to ensure correct operation
- Obstacle detection “patented” eliminate damage of your parts and protect your wrench
- Light, robust and accurate
- Automatic obstacle detection & incorrect hand position
- Full quality check strategy
- Self diagnostic solution
- High memory capacity
SCS Explorer
- Test definitions
- Instrument programming
- Results & trace download
- Trace comparison
- Analytic function to find the right residual torque strategy
- Part Number: 102110025
Quality Strategy
- Smart breakaway
- Breakaway peak
- Breakaway angle
- Loosen/tighten
- Minimum torque
- Loose torque
- Intersection determination
Freedom4 fulfill the evaluation methods conforming to VDI/VDE 2645-3:2019
- Peak value measurement
- Torque at angle of rotation
- Minimum after breakaway
- Intersection determination
- Gradient change
Quality process manager for production line
- Data collection
- Operation management
- Statistic analysis
- Process control management
- SPC management
- Route definition
Freedom 4 Quality Models
| Model Number | Designation | Wireless Cradle | Capacity | Drive |
| 113 37 0015 | Freedom4 15 | 197 13 0049: 15 N·m | 1.5 - 15 | 9 x 12 |
| 113 37 0030 | Freedom4 30 | 197 13 0049: 30 N·m | 3 - 30 | 9 x 12 |
| 113 37 0050 | Freedom4 50 | 197 13 0049: 50 N·m | 5 - 50 | 9 x 12 |
| 113 37 0070 | Freedom4 70 | 197 13 0050: 70 N·m | 7-70 | 9 x 12 |
| 113 37 0100 | Freedom4 100 | 197 13 0050: 100 N·m | 10-100 | 9 x 12 |
| 113 37 0200 | Freedom4 200 | 197 13 0051: 200 N·m | 20-200 | 14 x 18 |
| 113 37 0300 | Freedom4 300 | 197 13 0052: 300 N·m | 30-300 | 14 x 18 |
| 113 37 0400 | Freedom4 400 | 197 13 0053: 400 N·m | 40-400 | 14 x 18 |
| 113 37 0600 | Freedom4 600 | 197 13 0054: 600 N·m | 60-600 | 14 x 18 |
| 113 37 0800 | Freedom4 800 | 197 13 0055: 800 N·m | 80-800 | 22 x 28 |
| 113 37 1000 | Freedom4 1000 | 197 13 0056: 1000 N·m | 100-1000 | Special |
| 113 37 1200 | Freedom4 1200 | 197 13 0063: 1200 N·m | 120-1200 | Special |
Accessories
| Part Numbers | Description |
| 197 14 0038 |
Option tool recognition for wrenches with 9x12 drive
|
| 197 14 0039 |
Option tool recognition for wrenches with 14x18 drive
|
| 333 51 0017 |
Direct battery charger to connect with your USB cable
|
| 197 14 0046 |
1D Barcode reader integrated
|
| 197 14 0044 |
2D Barcode reader integrated
|
| 197 14 0029 |
External battery charger
|
| 197 14 0040 |
Programming unit for recognition end fittin
|
| 323 19 0105 |
Rubber protection
|
| 313 11 0177 |
Rubber and display protection
|
| 323 19 0012 |
Display protection
|
