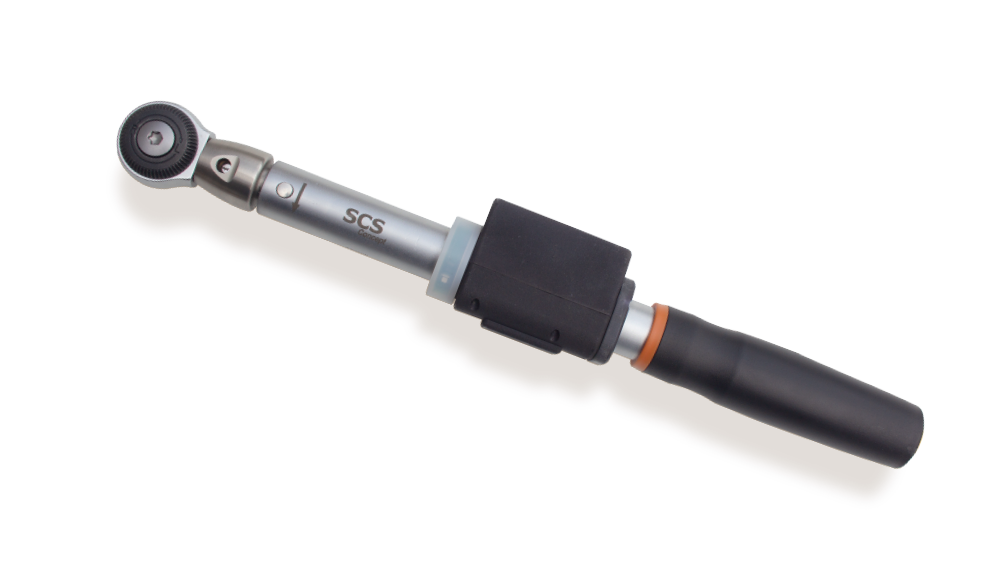

CL/CLS – Wireless Click Wrench

Error proofing management and data acquisition from 2 to 350 N·m

CLS is a torque wrench that combines the mechanical click with electronic control. It is suitable to replace those click wrench already used on production line, with a minimum effort in term of operator training, but giving a feedback (LED and report sent to the controlling device / software) and interfacing with the customer production system.

This solution is a first step in proof assembly. The torque wrench can be connected to the SCS Concept Visual Production Guide (VPG+), and works as any of the tools used in the production station. It gets programmed by the software and send the feedback in real time.

CLS wrench can be also integrated in the customer production system using one of the controllers: FIM EVO or Freedom Control Box (FCB). Both software are designed to be interfaced with the customer system, with I/O or a very wide set of different protocols.

Depending on the model, the CLS wrench can offer the following:

-Check if the click occurred or not
-Check if the click occurred within a certain angle (this function is used to detect if the operator is trying to work on a screw already tighten)
-Check if the click point is within a torque or torque / angle window
-Check if the peak point is within a torque or torque / angle window

The wrench communicates wirelessly. Also the internal battery is charged using wireless technology, so that the wrench get charged each time is placed on its support.

Features

• Small, light, ergonomic and robust
• Productivity of a click wrench with data traceability
• Accurate and repeatable
• Fulfill industry 4.0 with torque & angle value
• RF 868MHz or 915MHz to connect to a controller
• 360 degree ring report- Multi-color LED to manage tightening report
• Highly accurate click - 3° click
• Re-tighten detection untightening detection
• Standard end-fitting
• Torque and angle transducer (CLS Only)
• Ergonomic Handle- Soft grip
• Mechanical torque adjustment
• CL click wrench- CL click wrench is design for error proofing management, without any data traceability with SCS-FCB controller.
• CLS torque & angle click wrench- CLS torque & angle click wrench is design for error proofing and data traceability with FIM-EVO.

Feature differences between the 2 models

Specifications

• Autonomy: 9 hours to 18 hours (5 hours to charge)
• Click accuracy: 4% to fulfill ISO6789
• Untightening detection
• First peak and max torque applied send to the controller
• Bidirectional RF communication between the wrench and our controller
• Conform to ISO6789: 2017

Decrease maintenance - SCS Concept click mechanism reduces friction and mechanical wear and allows much longer working time without need for mechanical adjustment. It also allows for longer maintenance intervals, compared to competitors.

CL/CLS controllers

SCS FCB (Freedom Control Box) - SCS FCB can manage up to 4 CL/CLS wrench and is design for Error proofing management, No data store, but all report are available on the 8 input/8 output 24V.

FIM-EVO - FIM-EVO can manage up to 12 SCS Concept tools (CL/CLS, Freedom3, Freedom4, CDM, etc) and is designed to manage error proofing, data collection and communication protocol. A controller can manage 2 stations in same time. Please see the leaflet for more information.

VPG+ - VPG+ can manage SCS Concept tools (CL/CLS, Freedom3, Freedom4, CDM, etc) and is design to manage error proofing, data collection and communication protocol. Please see the leaflet for more information.

CL/CLS Models

Each wrench is delivered with the torque setting key*

Accessories

For more articles about SCS Concepts products Click Here
