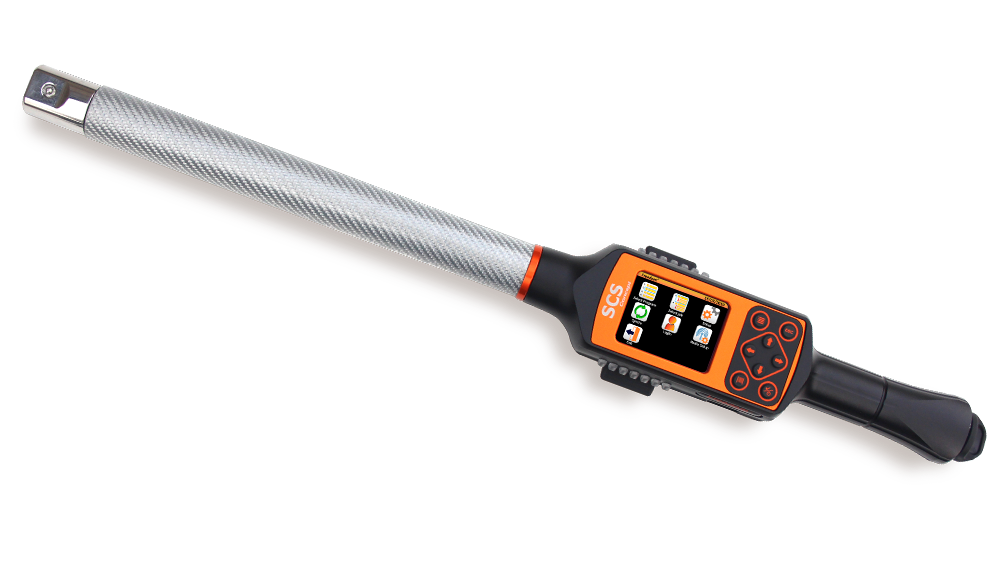

SCS Concepts: Freedom 4S Production

Freedom^4S Production – Torque & Angle Wrench

Advance solution for production from 0 to 1200 N·m

Freedom⁴ is the perfect wrench for Quality Control of tightening processes, for joint analysis, for the determination of the joint stiffness, for production as a backup of power tools, or for small productions, thanks to the possibility to perform all the Torque/Angle tightening strategies.
Compared to the Freedom³, the wrench recognized by the market as the most advanced and intelligent tool, it features advanced features that no other competitors offer on their tightening tools:
-Obstacle detection: it the wrench body hits an obstacle during the tightening operation, the wrench automatically detects the problem and advice the operator with a corrective action.
-Automatic wrong handling recognition: Freedom⁴ wrench detects also if the operator is handling the wrench with the hand in the wrong position, providing a warning message in case of not correct handling.

These features, combined with all other connectivity functions already present in the Freedom³, bring the Freedom⁴ wrench as the new reference for error proof assembly and quality control on a production line.
The wrench hardware has been completely redesigned, as well as the main menu interface, with new colored icons. The extremely rigid Carbon extension reduces the weight and improves ergonomy.
It offers integrated barcode scanner to scan the production VIN (Vehicle Identification Number), integrated radio (WiFi or Bluetooth) to interface with the connected device.
End-fitting tool is provided, with improved connection system that strengthen the reliability.

Features

• Hand position detection to ensure correct operation
• Guidance Solution: A large color touch screen help the operator during the assembly process.
• Obstacle detection “patented” eliminate damage of your parts and protect your wrench
• Compatible with FIM-EVO - Manage up to 12 assembly tools and 6 stations Fieldbus compatibility and data traceability Webserver application.
• Quick change wireless communication (WIFI/bt)
• Carbon extension
• USB connection for data traceability
• Large screen, 7 LEDs, vibration and buzzer to communicate with the operator
• Wireless charger
• Barcode reader in option
• Self diagnostic

Specifications

• Autonomy : up to 8 hours
• Torque accuracy : 0.5% of the read value
• Torque range : 10 to 100%
• Angle accuracy : +/-1° over 360°
• Memory 16 GB: >50 000 operations, traces and results
• Wireless communication WIFI/Bt
• WIFI 802.11 a/b/g/n
• Bluetooth V2
• Full security management
• WEP, WPA, WPA 2, EAP-TLS, LEAP, PEAP
• PRW functionalities
• LAB functionalities
• Untightening detection

PRW - Production

• Production tightening
• Wireless management
• Data traceability
• Barcode reader/VIN management
• LAB functionalities

LAB - Laboratory

• Joint analysis
• Prototype
• Material studies
• Pre-series
• Onboard results analysis
• Onboard traces
• Results and traces analysis on PC with Explorer software

Accessories

Standard end-fitting end fitting recognition

Rubber protection - PRW wrench is delivered with rubber protection wireless radio wings (Part Number: 313110177)
