ETA Tool Arms: Torque arms for fastening slightly off horizontal with inline or pistol air tools

Torque arms for fastening slightly off horizontal with inline or pistol air tools

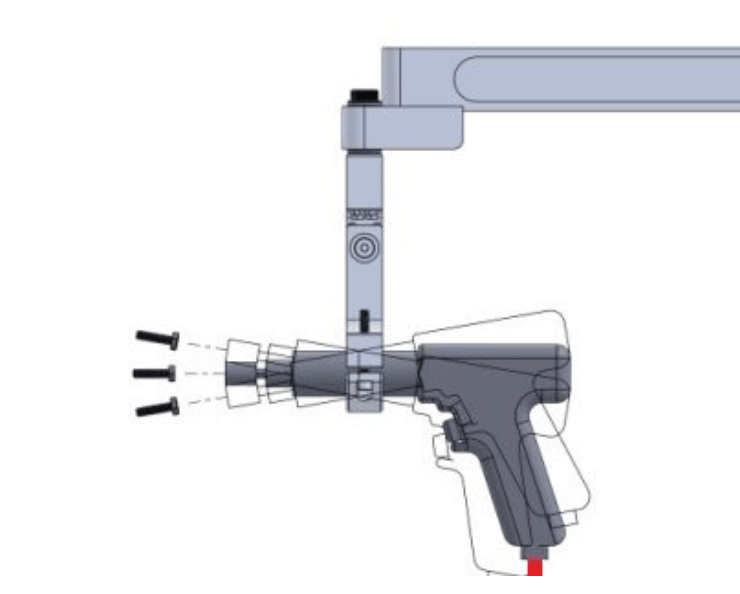

All arms on this page include PT-TH (Pistol Tilt-Tool Holder).  Some assembly applications have fasteners that are almost horizontal but still require a little slant. PT-TH is used for those applications requiring as much as 20 degrees below and above the horizontal plane and will clamp any air tool diameter from 1-1/8″ to 2.0″ (28.6 to 50.8mm). The tilt angle limits are adjustable from 0 to 20+ degrees above and below horizontal.

The models below will work with pneumatic pistol tools and inline tools only. They can also be used with air powered rivet tools. They will not stop the torque reaction of right angle tools.

PA-Series arms are meant to be used with air tools. For any other type of tool; electric, battery, hydraulic, and fixtures or gauges, you should review the EL-Series arms. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).
