ETA Tool Arms: Extra heavy duty arms
Extra heavy duty arms

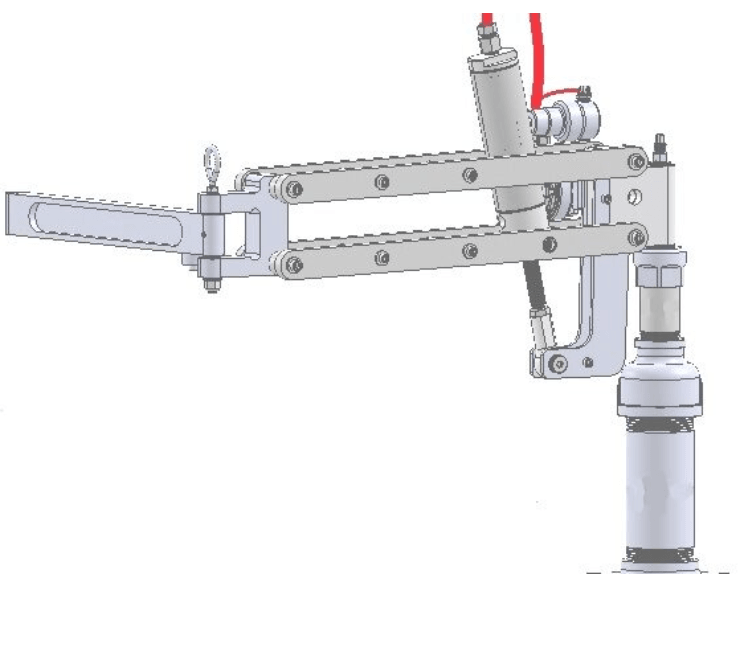

The models below are untooled like the EL-Series arms that end in “-N ” but with the addition of a Air Tool Supply hose . These can be used with custom holders for higher torque applications and air tools with higher weights up to 25+ lbs ! Consult with ETA or your distributor if you have an application for these Extra Heavy Duty Arms.
PA-Series arms are meant to be used with air tools. For any other type of tool; electric, battery, hydraulic, and fixtures or gauges, you should review the EL-Series arms. Our Air Cylinder gives you the smoothest float of any method and decades of life (more than 50,000,000 rundowns).
Pneumatic Arms
| Model Number | Description | Part Number |
| ETA PA1025-N | PNEUMATIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 25 lbs (11.4 kg) Max Reach: 36" (915 mm) | PA1025-N |
| ETA PA1015-N-B250 | PNEUMATIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) | PA1015-N-B250 |
| ETA PA1015-QA8 | PNEUMATIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | QA8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (975 mm) | PA1015-QA8 |
| ETA PA1015-QA8-B125 | PNEUMATIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | QA8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (975 mm) |
PA1015-QA8-B125
|
| ETA PA1015-N-B125 | PNEUMATIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) | PA1015-N-B125 |
| ETA PA1015-DF-B125 | PNEUMATIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | DOWN FORCE | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
PA1015-DF-B125
|
Electric Arms
| Model Number | Description | Part Number |
| ETA EL1015-N-B250 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) | EL1015-N-B250 |
| ETA EL1025-N | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 25 lbs (11.4 kg) Max Reach: 36" (915 mm) | EL1025-N |
| ETA EL1015-N-B125 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) | EL1015-N-B125 |
| ETA EL1015-ST61 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | ST61 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38" (965 mm) | EL1015-ST61 |
| ETA EL1015-QE8 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | QE8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) | EL1015-QE8 |
| ETA EL1025-N-OM | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 25 lbs (11.4 kg) Max Reach: 36" (915 mm) | EL1025-N-OM |
| ETA EL1015-QE8-B125 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | QE8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-QE8-B125
|
| ETA EL1015-N-0M-B125 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
EL1015-N-0M-B125
|
| ETA EL1015-N-OM-B250 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
EL1015-N-OM-B250
|
| ETA EL1015-ST61-B125 | ELECTRIC FOLDING REACTION ARM | EXTRA HEAVY DUTY | ST61 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38" (965 mm) |
EL1015-ST61-B125
|
| ETA EL1025-N-AVSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 25 lbs (11.4 kg) Max Reach: 36" (915 mm) |
EL1025-N-AVSA
|
| ETA EL1025-N-AMSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 25 lbs (11.4 kg) Max Reach: 36" (915 mm) |
EL1025-N-AMSA
|
| ETA EL1015-N-AMSA-B125 | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
EL1015-N-AMSA-B125
|
| ETA EL1015-N-GCSA-B125 | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
EL1015-N-GCSA-B125
|
| ETA EL1015-N-AVSA-B125 | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
EL1015-N-AVSA-B125
|
| ETA EL1015-ST61-GCSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | ST61 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38" (965 mm) |
EL1015-ST61-GCSA
|
| ETA EL1015-ST61-AVSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | ST61 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38" (965 mm) |
EL1015-ST61-AVSA
|
| ETA EL1015-QE8-GCSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | QE8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-QE8-GCSA
|
| ETA EL1025-N-GCSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 25 lbs (11.4 kg) Max Reach: 36" (915 mm) |
EL1025-N-GCSA
|
| ETA EL1015-QE8-AVSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | QE8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-QE8-AVSA
|
| ETA EL1015-QE8-AMSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | QE8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-QE8-AMSA
|
| ETA EL1015-ST61-AMSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | ST61 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38" (965 mm) |
EL1015-ST61-AMSA
|
| ETA EL1015-RAH-XXSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | RIGHT ANGLE HORIZONTAL | Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-RAH-XXSA
|
| ETA EL1015-RAH-AVSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | RIGHT ANGLE HORIZONTAL | Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-RAH-AVSA
|
| ETA EL1015-RAH-AMSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | RIGHT ANGLE HORIZONTAL | Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-RAH-AMSA
|
| ETA EL1015-RAH-GCSA | ELECTRIC FOLDING POSITIONING SMART REACTION ARM | EXTRA HEAVY DUTY | RIGHT ANGLE HORIZONTAL | Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-RAH-GCSA
|
Smart Electric Arms
| Model Number | Description | Part Number |
| ETA EL1025-N-XXSA | ELECTRIC FOLDING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 25 lbs (11.4 kg) Max Reach: 36" (915 mm) |
EL1025-N-XXSA
|
| ETA EL1015-ST61-XXSA | ELECTRIC FOLDING SMART REACTION ARM | EXTRA HEAVY DUTY | ST61 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38" (965 mm) |
EL1015-ST61-XXSA
|
| ETA EL1015-N-XXSA-B125 | ELECTRIC FOLDING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
EL1015-N-XXSA-B125
|
| ETA EL1015-QE8-XXSA | ELECTRIC FOLDING SMART REACTION ARM | EXTRA HEAVY DUTY | QE8 | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 38.5" (978 mm) |
EL1015-QE8-XXSA
|
| ETA EL1015-N-IOSA-B125 | ELECTRIC FOLDING SMART REACTION ARM | EXTRA HEAVY DUTY | Max Vertical Torque: 1,100 in-lb (125 Nm) Max Horizontal Torque: 600 in-lb (68 Nm) Max Tool Weight: 14 lbs (6.3 kg) Max Reach: 36" (915 mm) |
EL1015-N-IOSA-B125
|
