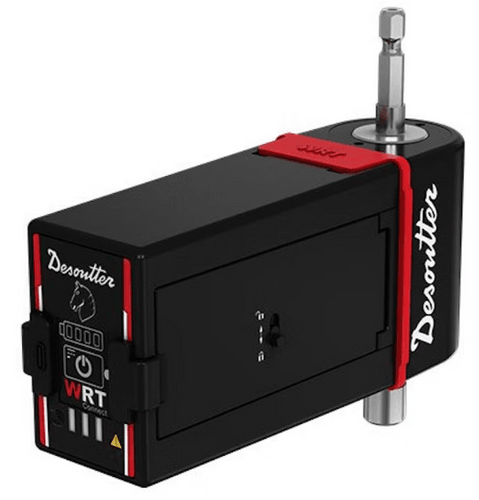

Desoutter: Wireless Rotary Torque Transducers
WRT new Wireless Rotary Torque Transducer
Desoutter has been working on a solution that will greatly simplify torque management, make data capture more reliable, and take quality control to a new level of efficiency. The result is our new Wireless Rotary Transducer (WRT), which offers a simpler way to achieve tool verification or calibration without the need for cabling or any software. Indeed, this little black box is all you will need to calibrate a whole range of tools, including click-wrenches, slip-wrenches, pneumatic tools, nutrunners and even Pulse tools.
Web Interface to captures torque & angle data
Communicating via an easy-to-use web interface, the WRT captures torque & angle data along with the traceability information required for reliable quality control. Its impressive memory can store up to 50,000 results and 5,000 curves, while it delivers a torque accuracy of +/- 0.5% of the reading, giving you total peace of mind.
Calibrate the tool, check machine capability (CM / CMK)
The WRT can be used to calibrate the tool, check machine capability (CM / CMK), and undertake a short test in “Demo mode”. It is equally useful in automatic stations (including screw feeder systems), in applications where access is a challenge, and with handheld tools.
How does it work?
How does it work? Well, without giving too much away, the WRT uses magnetic ring technology and a brushless optical transmission system. This is the first time that this technology has been used for a rotary transducer, so it’s a proud moment for the Desoutter technical team whose commitment to excellence drives them to create game-changing solutions for the industry.
Access tool data, view curves and download results in a matter of seconds
And how does all this clever technology translate into benefits for our customers? Put simply, the WRT allows quality and production managers to access tool data, view curves and download results in a matter of seconds using a device of their choice (computer, tablet or smartphone) – making tool verification and calibration so much easier. WRT guarantees that every tightening operation meets the highest standards, reducing errors, improving efficiency, and ensuring product reliability. With the WRT, manufacturers can confidently adhere to industry regulations and provide top-notch products.
Make your tool verification & calibration simple
User friendly wireless rotary torque transducer, communicates via an easy-to-use web user interface. Captures torque & angle data along with the trace for your quality control, across all models. No additional hardware required, making tool verification and calibration easy increasing your uptime. For use with a wide range of tools: click-wrenches, slip-wrenches, pneumatic tools, direct drive nutrunners and Pulse tools. The new design improves accuracy & durability. Battery duration is approximately 8 hours. Battery included.
Features and benefits
- Freedom to use on the line or in a station, no cable required. View the results on the chosen device (computer, tablet, etc.)
- No software required
- Fast and flexible connection: choose between the built-in access point, a connection to your network or via USB
- Intuitive web user interface: view results, curves, database, data download facility in a matter of seconds
- High torque accuracy: +/- 0.5% of the reading & high angle resolution thanks to magnetic ring technology
- Quick tool verification, especially in hard-to-reach applications as there is no cable to manage
- Peace of mind: memory storage of all torque & angle data with curves (50,000 results and 5,000 curves)
- Increased durability: new design uses optical transmission of all data (brushless system), especially for use with Pulse tools
Tools:
Model Number | Reference | Drive | Torque Range |
WRT4-Hex1/4 | 6152210510 | 1/4" Hexagonal | 0.4-4 Nm / 0.36-3.6 ft lb |
WRT10-Hex1/4 | 6152210520 | 1/4" Hexagonal | 1-10 Nm / 0.88-8.8 ft lb |
WRT20-Hex1/4 | 6152210530 | 1/4" Hexagonal | 2-20 Nm / 1.4714.7 ft lb |
WRT25-Sq3/8 | 6152210540 | 3/8” Square | 2.5-25 Nm / 1.84-18.4 ft lb |
WRT75-Sq3/8 | 6152210550 | 3/8” Square | 7.5-75 Nm / 5.53-55.3 ft lb |
WRT180-Sq1/2 | 6152210560 | 1/2” Square | 18-180 Nm / 13.27-132.7 ft lb |
WRT500-Sq3/4 | 6152210570 | 3/4” Square | 50-500 Nm / 36.87-368.7 ft lb |
