Delta Regis: Screw Counter and Dispenser
Delta Regis Screw Feeders provide an affordable way to increase productivity in your manual or robotic/automated screwdriving applications. Boost production by always having the next fastener ready to be picked up and installed. We offer several models of feeders, depending on your particular requirements including robotics applications.
Features:
• Turntable mechanism for accurate screw counting
• Dispenses up to 2 fasteners per second
• Digital display for monitoring counting status and programming functions
• Max 99 fasteners per batch
• High quality brushless motors
• Large 600cc (36.6 ci) capacity hopper
• Includes: AC adapter, grounding wires & setup tools
• Improve quality control – screws are dispensed for easy binning or bagging
• Easily program the number of screws you want to count for dispensing
• Clear plexiglass windows allow for viewing dispensed screws
• Precise programming controls allows feeding of many different screw types and sizes
• Adjustable drum rotation timer, vibration timer, and vibration intensity
• Individual driver motors for vibration, feeding and turntable operation
• Auto shut-off when not in use
• Quiet operation
• Simple service and set-up
• Great value – very cost effective way to increase productivity
Models:
| Model* | Dimensions (L x W x H) | Weight (w/o adapter) | Power Source | AC Adapter | Applicable Screw (Specify size when ordering) |
Max Screw Thread Length
|
| DRFF-630C | 308 x 162.5 x 202 mm | 5 kg / 11 lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 | 30 mm |

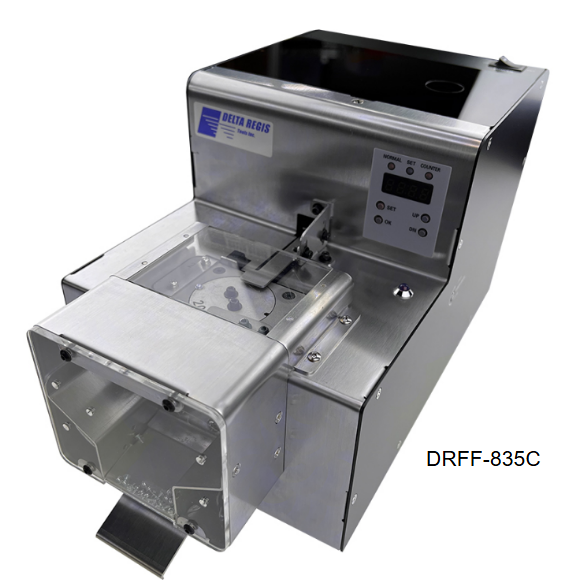

| DRFF-835C | 345 x 190 x 234 mm | 7 kg / 15.5 lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 / M8.0 / M9.0 | 35 mm |
*To order, add screw size to the model number as a suffix (eg.— for a DRFF-630C with M4.0 screws specify ‘DRFF-630C-4.0‘)
DRFF-630C Demo Video:
View the product flier for the DRFF Screw Counter and Dispenser
