Delta Regis: Manual Pickup Screw Presenters
Delta Regis Screw Feeders provide an affordable way to increase productivity in your manual or robotic/automated screwdriving applications. Boost production by always having the next fastener ready to be picked up and installed. We offer several models of feeders, depending on your particular requirements including robotics applications.
• Improve productivity — screw dispensed for easy pick-up
• Magnetic pick-up of ferrous screws
• Precise vibration control allows feeding of many different screw types and sizes
• Adjustable drum rotation timer, vibration timer, and vibration intensity
• Individual driver motors for vibration and feeding
• Auto shut-off of vibration/feed when not in use
• Quiet operation
• Simple service and set-up
• Great value — very cost effective way to increase productivity
• Small size — does not clutter work space
• Includes AC adapter, set-up tools and shims
•DRFF-519E- Extended fastener rail allows more fasteners to be lined up and ready for pick-up
•DRFF-530- Extra large 600cc hopper means less refilling
•DRFF-535- Extra large 500cc hopper means less refilling
Models:
| Model* | Dimensions (L x W x H) | Weight (w/o adapter) | Power Source | AC Adapter | Applicable Screw (Specify size when ordering) |
Max Screw Thread Length
|
| DRFF-520SS (Economic Model) | 182 x 126 x 147 mm | 2.49kg / 5.5lbs | 100–240VAC | 15VDC | M1.0–M5.0 (Adjustable) | 20 mm |
| DRFF-208* | 160 x 82 x 112 mm | 1.53kg / 3.3lbs | 100–240VAC | 12VDC | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 | 8 mm |
| DRFF-508* | 182 x 124 x 150 mm | 3.1kg / 6.8lbs | 100–240VAC | 12VDC | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 | 8 mm |
| DRFF-519E* (Extended Rail) | 216 x 126 x 150 mm | 3.1kg / 6.8lbs | 100–240VAC | 12VDC | M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 | 19 mm |
| DRFF-530* (600cc Hopper) | 249.5 x 162.5 x 175 mm | 5 kg / 11.0 lbs | 100–240VAC | 12VDC | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 | 30 mm |

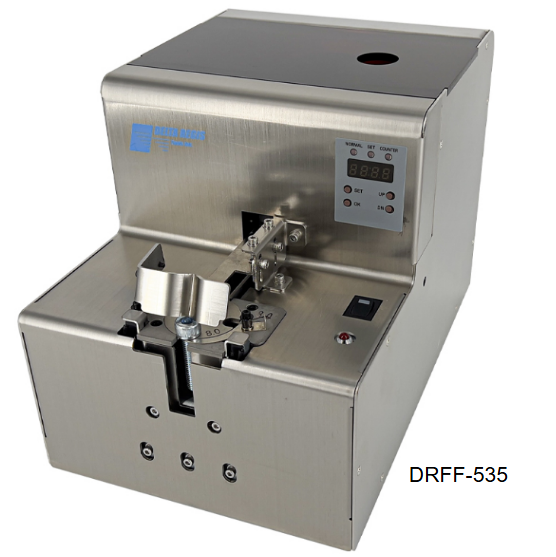

| DRFF-535* | 292.5 x 190 x 210 mm | 7 kg / 15.4 lbs | 100–240VAC | 12VDC | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 M4.0 / M5.0 / M6.0 / M8.0 / M9.0 | 35 mm |
*To order, add screw size to model number as a suffix (eg.— for a DRFF-519 with M1.4 screws specify ‘DRFF-519-1.4‘)
View the product flier for the DRFF Manual Pickup Screw Presenters
