Delta Regis: Robotic Screw Presenters
Delta Regis Screw Feeders provide an affordable way to increase productivity in your manual or robotic/automated screwdriving applications. Boost production by always having the next fastener ready to be picked up and installed. We offer several models of feeders, depending on your particular requirements including robotics applications.
• Ideal for robotic applications — magnetic or vacuum pick-up
• Signal output when screw is ready for pick-up/PLC counting
• Brushless driver motors for vibration and feeding
• Quiet operation
• Simple service and set-up
• Integrated screw counter with LED displays for assembly process feedback
• Includes AC adapter, set-up tools and shims
DRFF-508R and DRFF-519R
• Small size – does not clutter work space
DRFF-535R
•Extra large 500cc hopper means less refilling
DRFF-530R
•Extra large 600cc hopper means less refilling
Models:
| Model* | Dimensions (L x W x H) | Weight (w/o adapter) | Power Source | AC Adapter | Applicable Screw (Specify size when ordering) |
Max Screw Thread Length
|
| DRFF-208R* | 160 x 82 x 112 mm | 1.46kg / 3.2lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 | 8 mm |
| DRFF-508R | 182 x 124 x 150 mm | 3.1kg / 6.8lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M0.8 / M1.0 / M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 | 8 mm |
| DRFF-519R* | 182 x 124 x 150 mm | 3.1kg / 6.8lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 | 19 mm |

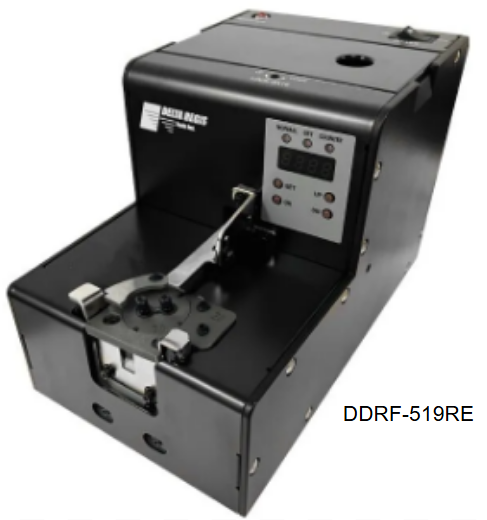

| DRFF-519RE* (Extended Rail) | 216 x 126 x 150 mm | 3.1kg / 6.8lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M1.2 / M1.4 / M1.7 / M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 | 19 mm |
| DRFF-530R* (600cc Hopper) | 249.5 x 162.5 x 175 mm | 5 kg / 11.0 lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 / M4.0 / M5.0 / M6.0 | 30 mm |
| DRFF-535R* | 292.5 x 190 x 210 mm | 7 kg / 15.4 lbs | 100–240VAC (50/60Hz) | 12VDC (2.0A) | M2.0 / M2.3 / M2.6 / M3.0 / M3.5 M4.0 / M5.0 / M6.0 / M8.0 /M9.0 | 35 mm |
*To order, add screw size to the model number as a suffix (eg.— for a DRFF-208R with M1.4 screws specify ‘DRFF-208R-1.4‘
