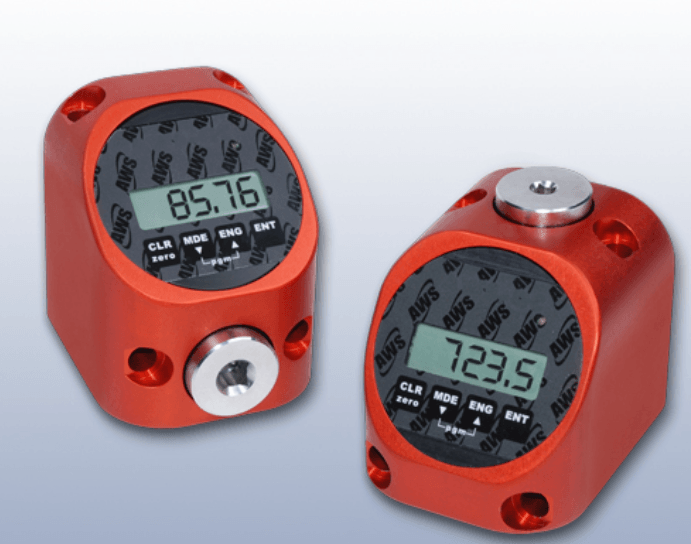

AWS: AWS-QC Desktop Torque Tester Quick Check Hand or Power Tool Validation
The AWS-QC series testers are an economical and easy-to-use choice for quick tool verification and mounting on a bench. These testers provide quality results at a low cost, making them a highly desirable entry-level device for checking manual, electric, and pneumatic torque screwdrivers, wrenches, and other tools (not for use with impact tools).
The integrated rotating display and dual-bolt pattern facilitate use in both horizontal and vertical positions, making it ideal for switching between pistol-grip and inline tool testing.
The QC takes just seconds to change test parameters, and works in either one button or automatic modes of operation.
Because of their low cost, high quality and ease of use, the AWS-QC series testers are our most popular entry level tester due to their great value. When used in conjunction with one of our PC applications, it's also capable of being used for tools test management, data archiving or printing.
Features
- Bidirectional capability to test torque in CW and CCW directions.
- Solid machined billet aluminum housing.
- Designed to facilitate vertical or horizontal tool testing.
- Intuitive user interface.
- Peak, First Peak and Track modes, upper and lower limits, memory and serial data output.
- Every model comes equipped with the proper size rundown fixture which acts as a joint simulator for power torque tools
Specifications
- Accuracy: ±1% of indicated reading, top 90% of range
- Multiple Engineering Units: Oz.in, Lb.in, Lb.ft, Nm, cNm, KgfCm, gfCm, Kgfm
- Batteries: Rechargable NiMH batteries provide 10-12 hours of continuous use
- Dimensions: 3.125"x3.25"x3.75"
- Weight: 2.5 lb.(approx.)
- Display: Segmented, four active digits with menus
Options
- Memory: Up to 999 readings stored internally.
- Transducer Orientation: The creative design of the housing provides for vertical or horizontal tool testing.
- Rundown Fixtures: 1/4" and 3/8" rundown fixtures (up to 1000 Lbf In) are included, 1/2", 3/4" and larger rundown kits are available but they are optional and priced separately. Rundown fixtures also double as joint simulators for power torque tools.
- Tool and Data Management Software: AWS offers several PC software applications for facilitating tools test management and data archiving or printing.
QCI Models
| Model | Capacity | Sq. Drive | Size (inches) |
| QCI-10 | 1 - 10 LbfIn | 1/4" | 3.125 x 3.25 x 3.75 |
| QCI-25 | 2.5 - 25 LbfIn | 1/4" | 3.125 x 3.25 x 3.75 |
| QCI-50 | 5 - 50 LbfIn | 1/4" | 3.125 x 3.25 x 3.75 |
| QCI-100 | 10 - 100 LbfIn | 1/4" | 3.125 x 3.25 x 3.75 |
| QCI-150 | 15 - 150 LbfIn | 1/4" | 3.125 x 3.25 x 3.75 |
| QCI-250 | 25 - 250 LbfIn | 3/8" | 3.125 x 3.25 x 3.75 |
| QCI-500 | 50 - 500 LbfIn | 3/8" | 3.125 x 3.25 x 3.75 |
| QCI-750 | 75 - 750 LbfIn | 3/8" | 3.125 x 3.25 x 3.75 |
| QCI-1000 | 100 - 1000 LbfIn | 3/8" | 3.125 x 3.25 x 3.75 |
QCF Models
| Model | Capacity | Sq. Drive | Size (inches) |
| QCF-100 | 10 - 100 LbfFt | 1/2" | 3.125 x 3.25 x 3.75 |
| QCF-150 | 15 - 150 LbfFt | 1/2" | 3.125 x 3.25 x 3.75 |
| QCF-250 | 25 - 250 LbfFt | 1/2" | 3.125 x 3.25 x 3.75 |
| QCF-500 | 50 - 500 LbfFt | 3/4" | 4.25 x 4.65 x 4.00 |
| QCF-600 | 60 - 600 LbfFt | 3/4" | 4.25 x 4.65 x 4.00 |
| QCF-750 | 75 - 750 LbfFt | 3/4" | 4.25 x 4.65 x 4.00 |
| QCF-1000 | 100 - 1000 LbfFt | 1" | 4.25 x 4.65 x 4.00 |
QCIO Models
| Model | Capacity | Sq. Drive | Size (inches) |
| QCIO-50 | 5 - 50 OzfIn | 1/4" | 3.125 x 3.25 x 3.75 |
| QCIO-100 | 10 - 100 OzfIn | 1/4" | 3.125 x 3.25 x 3.75 |
| QCIO-200 | 20 - 200 OzfIn | 1/4" | 3.125 x 3.25 x 3.75 |
Accessories
| Model | Part Number | Description | Sq. Drive | Hex Test Bolt |
| AWS-RDIOA-XXX | RDIOA-200 | 200 OzfIn rundown fixture | 1/4" Sq Drive |
1/4" x 20" : 3/16" hex
|
| AWS-RDIA-XXX | RDIA-150 | 150 LbfIn rundown fixture | 1/4" Sq Drive |
1/4" x 20" : 3/16" hex
|
| AWS-RDIA-XXX | RDIA-500 | 500 LbfIn rundown fixture | 3/8" Sq Drive |
3/8" x 16" : 5/16" hex
|
| AWS-RDFA-XXX | RDFA-250 | 250 LbfFt rundown fixture | 1/2" Sq Drive |
5/8" x 18" : 1/2" hex
|
| AWS-ICBL-USB | ICBL-USB | Serial communication cable 2.5mm x USB | N/A | N/A |
| AWS-CBL-RS232 | CBL-232 | Serial communication cable 2.5mm x DB 9 | N/A | N/A |
