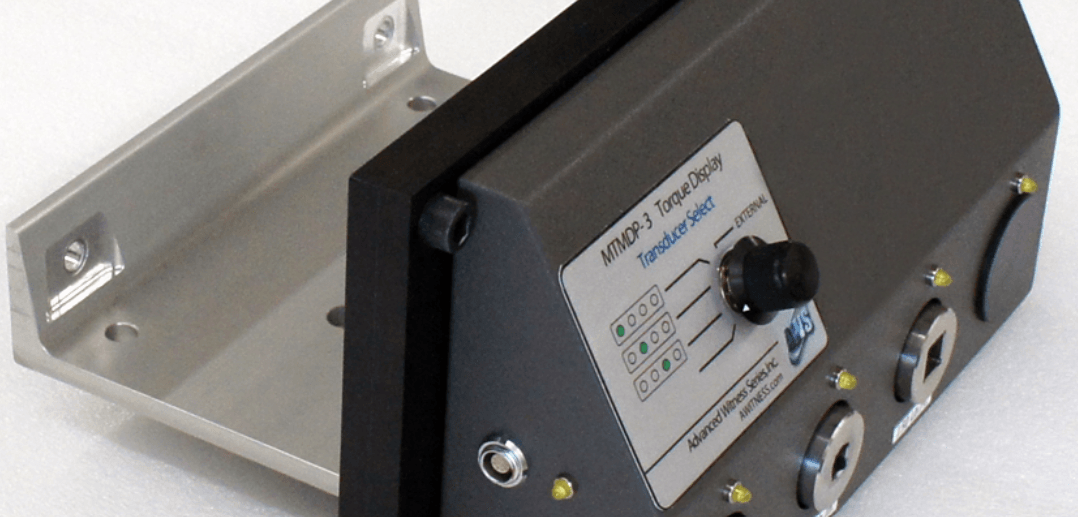

The AWS-MTM modules are designed to provide users with a very broad torque range, from 50 Ozf In to 750 Lbf Ft with one instrument. They are designed to test, validate and/or certify hand and most power tools, except pulse and impact type tools.

MTM-XXX
These instruments are available with two, three, or four internal transducers and an optional external transducer port to expand the testing range beyond 750 Lbf Ft.

Tool and data Management software and templates.
AWS offers several PC software applications for facilitating tool testing and test data management — archiving and printing. Please contact AWS for aid in selecting appropriate software for your application.

The AWS-MTM unit can be built with the transducers listed below. Both the MTM (no display) and the MTMDP (on board embedded display) can be equipped with two, three, or four internal transducers.

The MTM-2/MTMDP-2 is supplied with an external transducer connection standard. This external transducer port is available as an option for the MTM-3/MTMDP-3 and MTM-4/MTMDP-4.

The MTM models are designated as S or L which designates size or largest transducer capacity. A user can "mix & match" any two, three, or four transducer sizes that are within the specific model capacity.

The MTM-2S, MTMDP-2S, MTM-3S, MTMDP-3S, MTM-4S, MTMDP-4S limits the maximum internal transducer capacity to 1000 Lbf In. Any "mix" of transducers at or under 1000 Lbf In can be ordered.
Part Number Example: MTMDP-2S IO-100, I-50.

The MTM-2L, MTMDP-2L, MTM-3L, MTMDP-3L, MTM-4L, MTMDP-4L limits the maximum internal transducer capacity to 750 Lbf Ft. Any "mix" of transducers at or under 750 Lbf Ft can be ordered.
Part Number Example: MTMDP-4L I-50, I-500, F-150, F-750.

The external transducer port can support any size/capacity transducer that we manufacture - from 10 Ozf In to 50,000 Lbf Ft.

Features

• Welded steel housing.
• Designed to facilitate hand or power tool testing.
• Plug and play transducer modules require no setup by user.
• Bidirectional capability provides torque measurement in CW and CCW direction.
• Same feature set as our other AWS instruments; including Peak, First Peak and Track modes, upper and lower limits, memory and serial data output.
