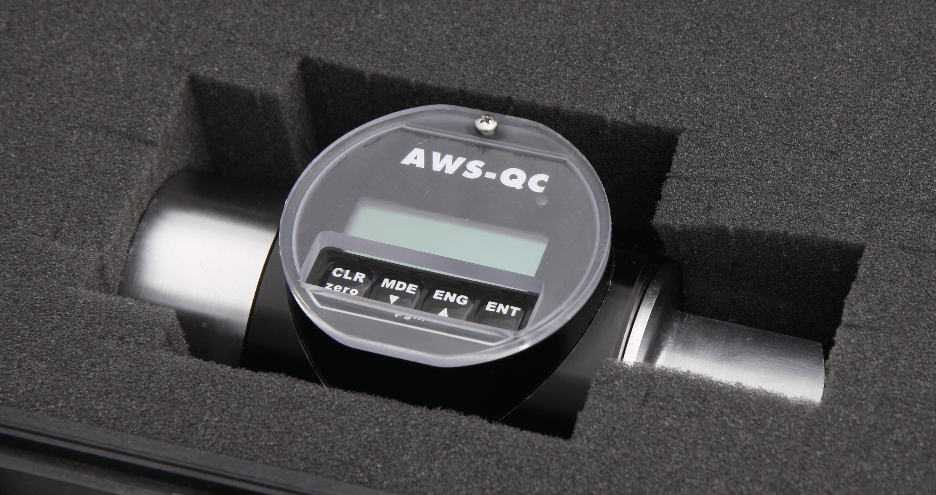

AWS: AWS-ICI/ICF Inline Torque Testers
The AWS-IC testers are designed to be extremely portable, capable of testing both hand and power tools, in the tool room, on the production floor or in a calibration lab. Rundown fixtures are available for power tool testing.
AWS inline torque testers, transducer, display and power are all self-contained.
The torque range of ICI instruments is from 50 Lbf In full scale to 10,000 Lbf Ft full scale.
Features
- Bidirectional use for CW and CCW torque measurement.
- Multiple torque modes.
- Multiple Engineering units.
- Battery and mains powered.
- Internal Memory for data storage.
- Communications via serial output.
- Overload capacity 150%.
- FIFO memory with storage of 999 torque values.
- Housing machined from solid billet aluminum, providing light weight and durability.
- Transducer is stainless steel and has internal by external square drives.
Specifications
Accuracy: ± 1% indicated reading top 90% of range
Multiple Engineering Units: Oz.in., Lb.in., Lb.ft., Nm, cNm, KgfCm, gfCm, Kgfm
Torque Modes: Track, Peak, First Peak
Housing: Machined from heavy duty billet aluminum
Batteries: Rechargeable NiMH batteries provide 10-12 hours of continuous use
Dimensions: 3.125" x 3.25" x 3.75"
Weight: 2.5 lbs. (approx.)
Display: Segmented LCD, four active digits
