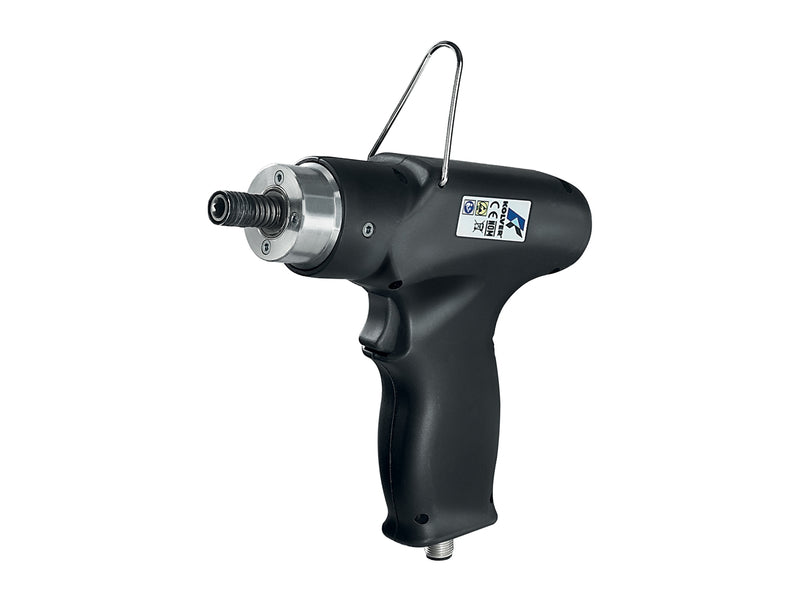

Kolver 130215/N | PLUTO15P/N | Current Control | Bottom Connector | Trigger Start | ESD | PLUTO Corded Pistol Screwdriver

SKU Kolver 130215/N
by Kolver
Original price $2,156.00 - Original price $2,156.00
Original price
$2,156.00
$2,156.00 - $2,156.00
Current price $2,156.00

Features

  • Current control: torque set and read on the control unit, ±5% precision across the range.
  • Coreless motor with planetary gearbox: very low inertia and friction for long life.
  • Multi-torque: up to 8 programs on an EDU2AE/TOP control unit.
  • ESD-safe housing.
Need Additional Information?



Kolver PLUTO15P/N (part 130215/N) is the 2–15 Nm (17.7–133 in-lb) model of the Kolver PLUTO Pistol Screwdriver (Bottom Connector, Trigger Start). Kolver PLUTO screwdrivers control torque through motor current. A coreless motor with planetary gearbox gives very low inertia and friction, for accurate, long-lasting torque from 4.4 to 620 in-lb across the range.

Works with an EDU2AE-series control unit (sold separately; see Accessories).

PLUTO15P/N specifications

Model PLUTO15P/N
Kolver part # 130215/N
Torque range 2–15 Nm Ā· 17.7–133 in-lb
Free speed 60-320 RPM
Size 6.3 Ɨ 6.9 Ɨ 1.8 in
Weight 1.1 lb
Start / connector Bottom connector
Control method Current control (torque set on the control unit)
Motor Coreless DC with planetary gearbox
Control unit EDU2AE/HPRO or EDU2AE/TOP/E (sold separately)
Accuracy ±5% across the torque range (with EDU2AE)
Housing ESD-safe

Also known as

130215/N Ā· PLUTO15P/N Ā· Kolver 130215/N Ā· Kolver PLUTO15P/N

Sizing tip

Kolver doesn't recommend continuous use above 80% of a model's range. For the PLUTO15P/N that means target torques up to about 12 Nm (106 in-lb).

Accessories that work with this tool and its control unit, grouped by type.

Item Part # Price
Connection cables
Standard 5 pin cable, 2.5 m (8 ft) 200063 $110.00
5 pin cable with strain relief, 2.5 m (8 ft) 200063/H $151.80
5 pin cable, 5 m (15 ft) 200563 $138.60
5 pin spiral cable, 5 m (15 ft) 200563/S $169.40
5 pin cable, 8 m (25 ft) 200863 $170.50
Cord Sets
5-Pin Screwdriver Cable, 8 ft, Right-Angle End 200063/A $203.50
5-Pin Screwdriver Cable, 15 ft, Right-Angle End 200563/A $218.90
5-Pin Screwdriver Cable, 15 ft, Strain Relief 200563/H $231.00
PLUTO Series Controllers
EDU2AE/HPro 032000/Hpro $1,164.90
EDU2AE/TOP/E 032000/TOP/E $2,657.60
Right Angle Heads
ANG HD10 90° Angle Head, 3/8" Square 010145 $1,047.20
ANG HD14 90° Angle Head, 1/4" Hex 010149 $1,047.20
ANG HD18 90° Angle Head, 1/4" Hex 010155 $1,047.20
ANG HD21 90° Angle Head, 1/2" Square 010158 $2,090.00
ANG HD22 90° Angle Head, 1/2" Square 010159 $2,462.90
Riveting heads
RIV HD1 010180 $361.90
RIV HD3 010182 $361.90
Robot Tool Holder
Epson SCARA Robot Tool Holder 010711/EPSCR $1,200.00
Tool Balancers
TECBA4 Tool Balancer, 4.4–8.8 lb 010314 $260.70
Tool holders and adaptors
Pistol FAB, RAF, KBL and PLUTO wall support 010175 $105.60
TECBA1 010300 $91.30
TECBA2 010312 $113.30
TECBA3 010313 $123.20
Vacuum attachments
A2 010111/1 $1,599.40
A3 010111/2 $1,599.40
ASP HD9 010121 $845.90
ASP HD9/UNI 010121/UNI $906.40
Accessories
USB Barcode Scanner Connector 010415 $108.90
Connection devices
SWBX88 Switchbox 020033 $542.30
CBS880 Socket tray 020042 $1,843.60
DOCK 04 020045 $312.40
BRCR90 Barcode reader 020050 $459.80
Ethernet device 020075 $143.00
UR Robot connection device 020077 $548.90
Data printer
PRNTR1 Serial printer 020026 $907.50
Remote start and reverse
Start / Reverse pedals 020070 $596.20
Visual signals
Light tower stack 020081 $596.20
Light tower stack 020080 $596.20

Compare PLUTO Pistol Screwdriver (Bottom Connector, Trigger Start) models

Model Part # Torque Nm Torque in-lb Speed RPM Size (in) Weight Price
PLUTO3P 130204 0.5–2.5 4.4–22.1 370-1300 6.3 Ɨ 6.9 Ɨ 1.8 1.1 lb $1,970.10
PLUTO6P 130207 1–6 8.8–53.1 200-850 6.3 Ɨ 6.9 Ɨ 1.8 1.1 lb $1,970.10
PLUTO10P/N 130210/N 1.5–10 13.3–88.5 110-600 6.3 Ɨ 6.9 Ɨ 1.8 1.1 lb $1,970.10
PLUTO15P/N 130215/N 2–15 17.7–133 60-320 6.3 Ɨ 6.9 Ɨ 1.8 1.1 lb $2,156.00

View all PLUTO Pistol Screwdriver (Bottom Connector, Trigger Start) models →
