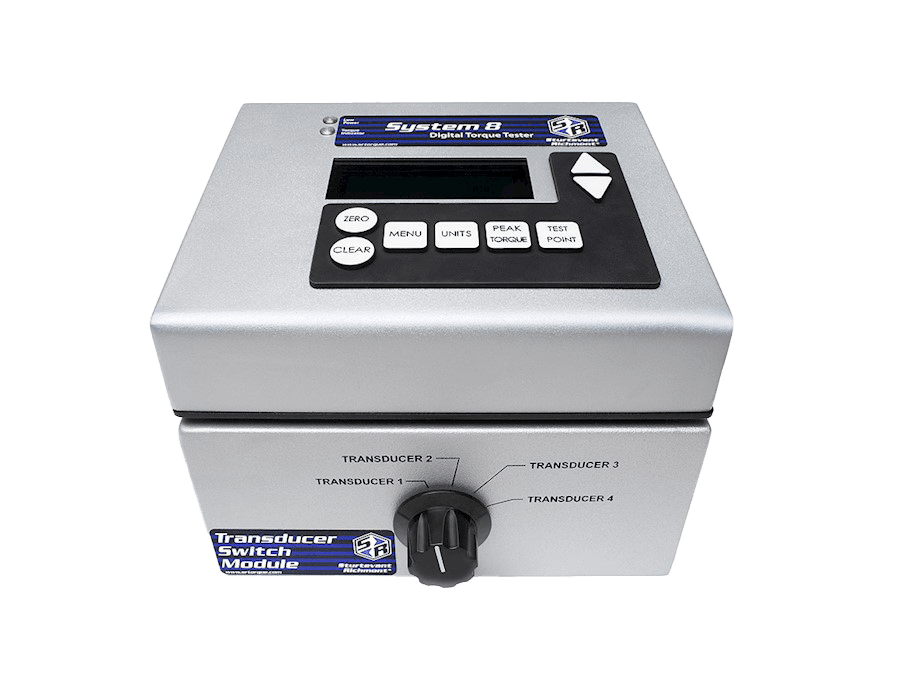

Sturtevant-Richmont System 8 Series

Digital Torque Tester

The SYSTEM 8 Digital Torque Tester is much more than a torque calibration unit. It is a well-designed system engineered to turn uncertainties into certainties with:

• Accuracy to +/- .25% of Indicated Value from 10% to 100% of capacity.
• A wide range of available transducers from 2.5 inch oz to 2000 ft. lbs.
• Floating decimal point, 6 digit display is easy to read
• Highly visible display with 6 digit floating decimal point provides superior resolution.
• Fail Safe Engineering over capacity and alert tracking.
• Greater accuracy and durability with simplicity and ease of operation
• Selectable operation modes for testing all but impact tools.

Like all Sturtevant Richmont products, the System 8 meets or exceeds the following standards:

• ASME B107.300 - 2010 Electronic Tester, Hand Torque Tools
• ISO 5393 Rotary tools for threaded fasteners- products test methods.
• ASME B107.4M Driving and Spindle Ends for Portable Hand, Impact, Air, and Electric Tools (Percussion Tools Excluded).
• ISO 1773 Assembly Tools for Bolts and Screws – Driving Squares for Power Socket Wrenches and Hand Socket Wrenches.
• ISO 1774-2 Assembly Tools for Bolts and Screws – Driving Squares for power socket tools

System 8 display has a floating point decimal resolution showing six digits throughout. Combine that with an accuracy of 0.25% (indicated value) from 10% to 100% and System 8 capabilities give you control of your torque testing program. The new System 8® line of Digital Torque Testers is ideal for interim or daily torque testing programs for clicker torque wrenches, camover torque tools, torque screwdrivers, and nonimpact power tools.

Features and Characteristics:

• Tests in both clockwise and counterclockwise directions.
• Four modes of operation - Track, Peak, Initial Peak and Power Tool - provide excellent versatility.
• Units of measure include English, Standard International and Metric.
• 999 records that can be downloaded
• Works with Torque Tool Manager 4 for calibration/ documentation.
• Red/Green LED indicates whether a measurement is within the target torque value.
• Includes FREE certificate of calibration from our ISO/IEC 17025 Accredited Laboratory!
• Includes 120-240 VAC to 6 VDC screw on power supply for security during power tool testing.
• Has the option to run on four AA NiMH rechargeable batteries. Batteries sold separately. Quick charge units are available.
• Includes a rugged protective case for storage and transit.
• Power Tool mode has ten filters and will accurately test all clutch type and pulse tools.

Torque Tester:
