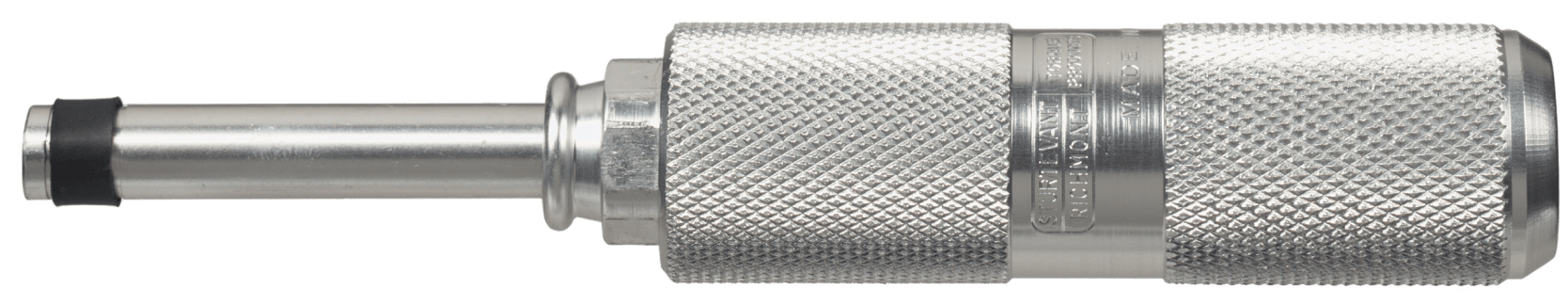

Sturtevant-Richmont PM Series
Preset Screwdriver
- Perfect for assembly of electronic components and precision mechanical products!
- Ideal for use in field maintenance kits - electro-static discharge compliant when ESD practices are used.
- Clutch releases automatically when preset torque is attained - no over torquing.
- Anti-backlash design for repeatability.
- Long shaft allows operators to reach limited-access applications.
- Accuracy of +/- 6% (from 20% to 100% of capacity) meets or exceeds ASME B107.300 - 2010 and ISO 6789 requirements.
- Bi-directional versatility - CW and CCW operation.
- Uses standard bits, adapters, and sockets.
- Torque value can be set using any unit of torque measure.
Screwdrivers:
| Model Number | Part Number | Description | Torque Range | Drive Type | Weight (grams) |
| Sturtevant Richmont PM-5 | 810007 | SLIP CLUTCH | PRESET TORQUE SCREWDRIVER | 20-100 IN-OZ (14-71 CNM) | 20-100 in-oz (14-71 cNm) | 1/4” Hex Drive | 114 |
| Sturtevant Richmont PM-15 | 810064 | SLIP CLUTCH | PRESET TORQUE SCREWDRIVER | 3-15 IN-LBS (34 CNM - 1.7 NM) | 3-15 in-lbs (34 cNm - 1.7 Nm) | 1/4” Hex Drive | 136 |
| Sturtevant Richmont PM-36 | 810563 | SLIP CLUTCH | PRESET TORQUE SCREWDRIVER | 7.2-36 IN-LBS (81 CNM - 4.1 NM) | 7.2-36 in-lbs (81 cNm - 4.1 Nm) | 1/4” Hex Drive | 227 |
