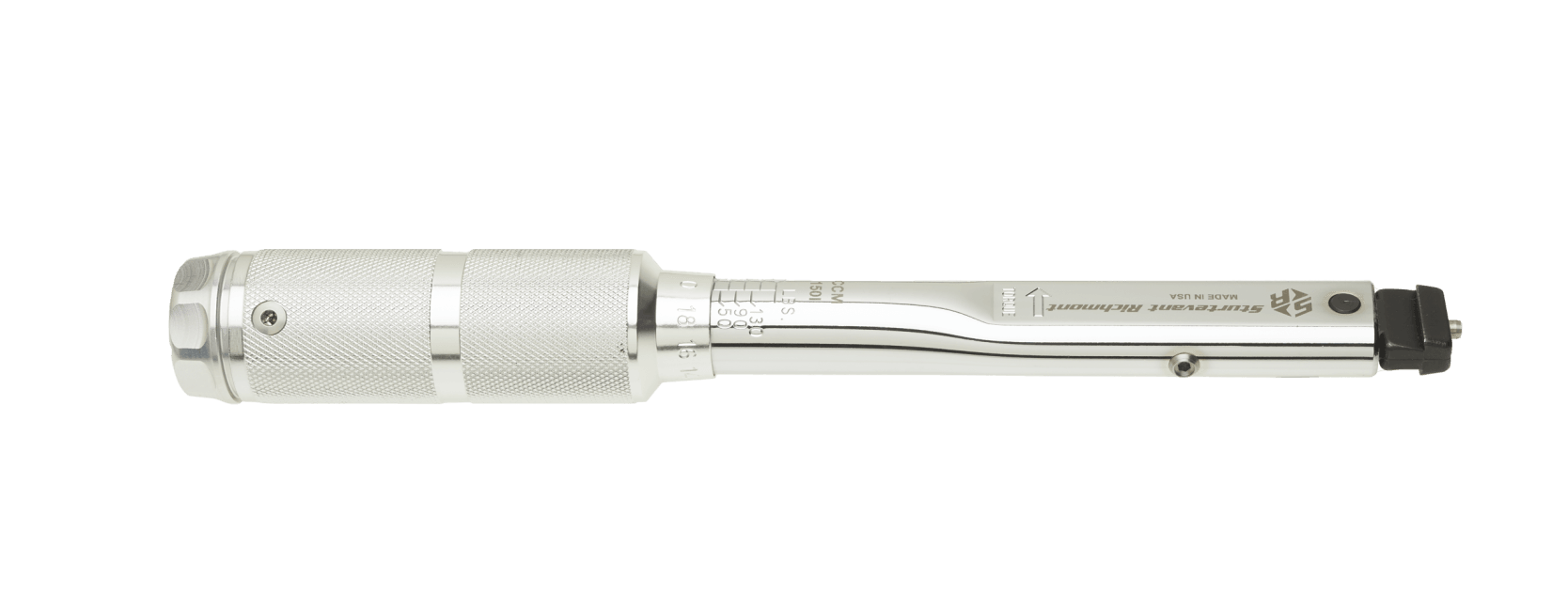

Sturtevant-Richmont CCM Series
Interchangeable Head Micrometer Adjustable
- Incredible Versatility! Accepts well over 200 interchangeable heads, as well as custom heads and extensions, and offers micrometer torque adjustment!
- The +/- 4% Indicated Value Accuracy meets or exceeds ASME B107.300 - 2010, AS 28431 and ISO 6789.
- Fast adjustment–takes the fewest rotations of any tool to reach full scale!
- Excellent audible and tactile impulse when set torque achieved.
Features
Sturtevant-Richmont CCM | Click-Type Micrometer Torque Wrench with Interchangeable Head | In-Lb Graduations:
| Model Number | Part Number | Torque Range | Graduation |
| Sturtevant Richmont CCM 50 I MG | 869769 | 10-50 in-lb | 1 in.lb. |
| Sturtevant Richmont CCM 150 I MG | 869765 | 30-150 in-lb | 2 in.lb. |
| Sturtevant Richmont CCM 200 I MG | 869773 | 40-200 in-lb | 2in.lb. |
| Sturtevant Richmont CCM 600 I MG | 869763 | 100-600 in-lb | 5 in.lb. |
| Sturtevant Richmont CCM 750 I MG | 869766 | 150-750 in-lb | 5in.lb. |
| Sturtevant Richmont CCM 1200 I MG | 869764 | 200-1200 in-lb | 10in.lb. |
| Sturtevant Richmont CCM 1800 I MG | 869762 | 300-1800 in-lb | 10 in.lb. |
Sturtevant-Richmont CCM | Click-Type Micrometer Torque Wrench with Interchangeable Head | Ft-Lb Graduations:
| Model Number | Part Number | Torque Range | Graduation |
| Sturtevant Richmont CCM 75 MG | 869770 | 15-75 ft-lb | 1/2 ft.lb. |
| Sturtevant Richmont CCM 150 MG | 869771 | 30-150 ft-lb | 1 ft.lb. |
| Sturtevant Richmont CCM 300 MG | 810335 | 50-300 ft-lb | 2 1/2 ft.lb. |
| Sturtevant Richmont CCM 400 MG | 810772 | 80-400 ft-lb | 5 ft.lb. |
Sturtevant-Richmont CCM | Click-Type Micrometer Torque Wrench with Interchangeable Head | NM Metric Graduations:
| Model Number | Part Number | Torque Range | Graduation |
| Sturtevant Richmont CCM 6 NM MG | 869784 | 1-6 Nm | 0.1 Nm |
| Sturtevant Richmont CCM 20 Nm MG | 869785 | 4-20 Nm | 0.2 Nm |
| Sturtevant Richmont CCM 100 Nm MG | 869786 | 20-100 Nm | 0.5 Nm |
| Sturtevant Richmont CCM 200 Nm MG | 869787 | 40-200 Nm | 1 Nm |
| Sturtevant Richmont CCM 400 Nm MG | 810788 | 75-400 Nm | 2.5 Nm |
| Sturtevant Richmont CCM 600 Nm MG | 810794 | 100-600 Nm | 5 Nm |
