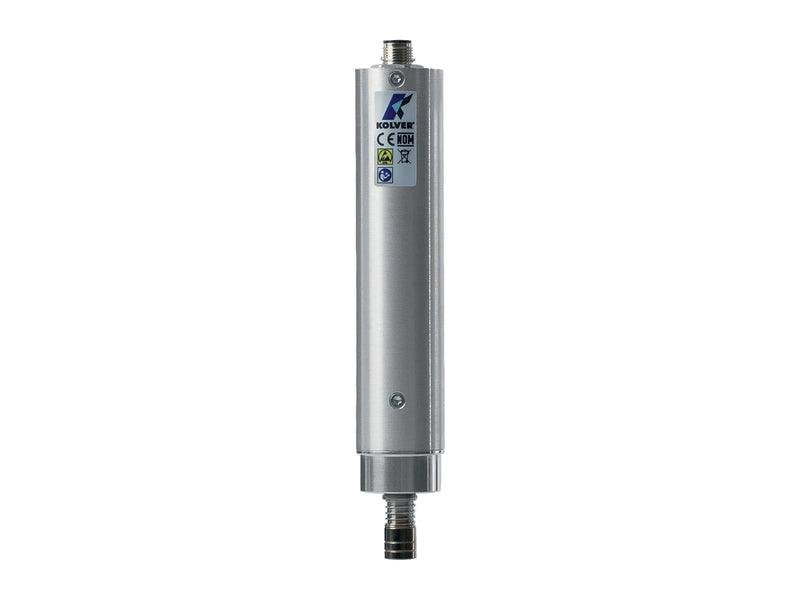

Kolver: PLUTO Series Fixture Mount Screwdrivers
PLUTO Screwdrivers for Automation | Torque range 4.4 − 443 in-lb
PLUTO CA screwdrivers are designed for automated and fitted applications. Whether you’re working with a robot or adapting your assembly line to Industry 4.0 standards, we have the right solution for automation in all its forms.
Long-lasting quality
PLUTO Screwdrivers feature an innovative coreless motor with low inertia and friction and absence of iron losses for extreme efficiency and extended life. Planetary gearboxes are made of high-quality composite materials for excellent accuracy and repeatability throughout the wide 4.4 – 443 in-lb torque range.
Perfect for automatic machines
PLUTO CA are supplied in an aluminum body for a quick and easy integration with automatic machines and screw feeding systems. PLUTO tools in CA/FN version are equipped with a flange mount and reciprocating spindle for high volume/high duty applications.
Robotic applications
Our PLUTO CA screwdrivers can be easily interfaced with robots. The EDU2AE screwdriver controller connects to robots to determine screw speed, torque and time out. The controller sends a signal to the robot when the screw reaches the specified torque.
Industry 4.0 ready
Simply connect the screwdriver controller to your PLC, robot or machine through the proper connectors to manage input/output signals such as start, stop, error and more. You can also get data reports of the full tightening procedure on advanced control units like EDU2AE/TOP/E and EDU2AE/TOP/TA.
Available Housings
- ALUMINUM BODY (PLUTO CA and PLUTO CA/N) – Specifically designed for automation. Easy to install on any machine or robot.
- ALUMINUM BODY WITH FLANGE MOUNT (PLUTO CA/FN and PLUTO CA/FN2) – Ideal for automated high volume/high duty applications. Flange and telescopic spindle available together or separately.
Models:
| Model | Torque (in-lb) | RPM | Drive | Part Number |
| PLUTO20CA/SR | 26.6 - 177 | 50 - 200 | Sq 3/8" | 133221/SR |
| PLUTO35CA/SR | 26.6 - 310 | 40 - 140 | Sq 3/8" | 133236/SR |
| PLUTO50CA/SR | 44.3 - 443 | 20 - 90 | Sq 1/2" | 133250/SR |
| PLUTO20CA/SR/TA | 26.6 - 177 | 50 - 200 | Sq 3/8" | 133221/SR/TA |
| PLUTO35CA/SR/TA | 26.6 - 310 | 40 - 140 | Sq 3/8" | 133236/SR/TA |
| PLUTO50CA/SR/TA | 44.3 - 443 | 20 - 90 | Sq 1/2" | 133250/SR/TA |
| PLUTO3CA | 4.4 - 22.1 | 370 - 1300 | Hex 1/4” | 130303 |
| PLUTO6CA | 7.5 - 53.1 | 200 - 850 | Hex 1/4” | 133206 |
| PLUTO10CA/N | 13.3 - 88.5 | 110 - 600 | Hex 1/4” | 133211/N |
| PLUTO15CA/N | 17.7 - 133 | 60 - 320 | Hex 1/4” | 133216/N |
| PLUTO20CA | 26.6 - 177 | 50 - 200 | Sq 3/8" | 133221 |
| PLUTO35CA | 26.6 - 310 | 40 - 140 | Sq 3/8" | 133236 |
| PLUTO50CA | 44.3 - 443 | 20 - 90 | Sq 1/2" | 133250 |
| PLUTO3CA/FN2 | 4.4 - 22.1 | 370 - 1300 | Sq 3/8" | 130303/FN2 |
| PLUTO3CA/FN2/1-4 | 4.4 - 22.1 | 370 - 1300 | Hex 1/4” | 130303/FN2/1-4 |
| PLUTO6CA/FN2 | 7.5 - 53.1 | 200 - 850 | Sq 3/8" | 133206/FN2 |
| PLUTO6CA/FN2/1-4 | 7.5 - 53.1 | 200 - 850 | Hex 1/4” | 133206/FN2/1-4 |
| PLUTO10CA/FN2 | 13.3 - 88.5 | 110 - 600 | Sq 3/8" | 133211/FN2 |
| PLUTO10CA/FN2/1-4 | 13.3 - 88.5 | 110 - 600 | Hex 1/4” | 133211/FN2/1-4 |
| PLUTO15CA/FN2 | 17.7 - 133 | 60 - 320 | Sq 3/8" | 133216/FN2 |
| PLUTO20CA/FN | 26.6 - 177 | 50 - 200 | Sq 3/8" | 133221/FN |
| PLUTO35CA/FN | 26.6 - 310 | 40 - 140 | Sq 3/8" | 133236/FN |
| PLUTO50CA/FN | 44.3 - 443 | 20 - 90 | Sq 1/2" | 133250/FN |
| PLUTO3CA/TA | 4.4 - 22.1 | 370 - 1300 | Hex 1/4” | 130303/TA |
| PLUTO6CA/TA | 7.5 - 53.1 | 200 - 850 | Hex 1/4” | 133206/TA |
| PLUTO10CA/TA | 13.3 - 88.5 | 110 - 600 | Hex 1/4” | 133211/TA |
| PLUTO15CA/TA | 17.7 - 133 | 60 - 320 | Hex 1/4” | 133216/TA |
| PLUTO20CA/TA | 26.6 - 177 | 50 - 200 | Sq 3/8” | 133221/TA |
| PLUTO35CA/TA | 26.6 - 310 | 40 - 140 | Sq 3/8” | 133236/TA |
| PLUTO50CA/TA | 44.3 - 443 | 20 - 90 | Sq 1/2” | 133250/TA |
| PLUTO3CA/FN2/TA | 4.4 - 22.1 | 370 - 1300 | Sq 3/8” | 130303/FN2/TA |
| PLUTO3CA/FN2/TA/1-4 | 4.4 - 22.1 | 370 - 1300 | Hex 1/4” |
130303/FN2/TA/1-4
|
| PLUTO6CA/FN2/TA | 7.5 - 53.1 | 200 - 850 | Sq 3/8” | 133206/FN2/TA |
| PLUTO6CA/FN2/TA/1-4 | 7.5 - 53.1 | 200 - 850 | Hex 1/4” |
133206/FN2/TA/1-4
|
| PLUTO10CA/FN2/TA | 13.3 - 88.5 | 110 - 600 | Sq 3/8” | 133211/FN2/TA |
| PLUTO10CA/FN2/TA/1-4 | 13.3 - 88.5 | 110 - 600 | Hex 1/4” |
133211/FN2/TA/1-4
|
| PLUTO15CA/FN2/TA | 17.7 - 133 | 60 - 320 | Sq 3/8” | 133216/FN2/TA |
| PLUTO20CA/FN/TA | 26.6 - 177 | 50 - 200 | Sq 3/8” | 133221/FN/TA |
| PLUTO35CA/FN/TA | 26.6 - 310 | 40 - 140 | Sq 3/8” | 133236/FN/TA |
| PLUTO50CA/FN/TA | 44.3 - 443 | 20 - 90 | Sq 1/2” | 133250/FN/TA |
