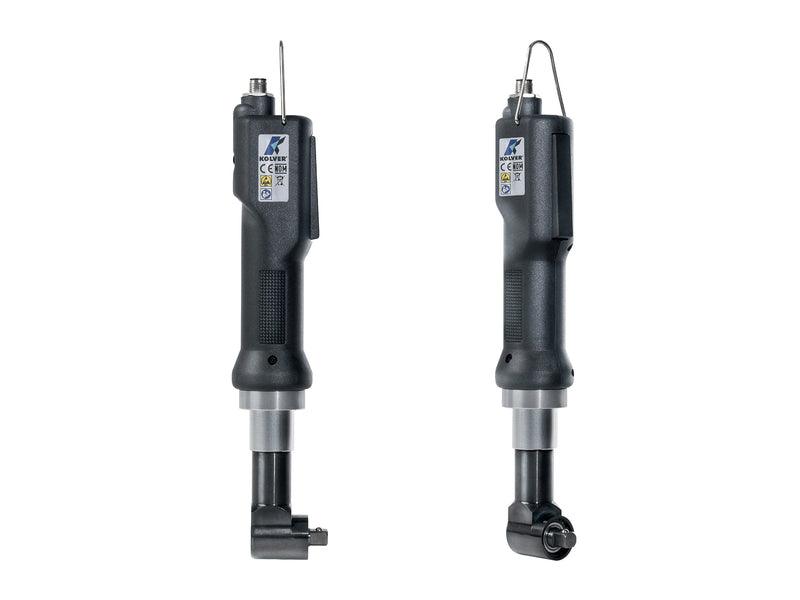

Kolver: Automation Fixture Mount Screwdrivers

Current-controlled Screwdrivers for Automation | Torque range 0.18 − 443 lbf-in

Kolver's CA screwdrivers are designed for automated and fixtures applications. Whether you’re working with a robot or adapting your assembly line to Industry 4.0 standards, we have the right solution for automation in all its forms.

Perfect for automatic machines

Our CA screwdrivers are supplied in an aluminum body for a quick and easy integration with automatic machines and screwfeeding systems. PLUTO and MITO tools in CA/FN version are equipped with a flange mount and reciprocating spindle for high volume/high duty applications.

Robotic applications

Our CA screwdrivers can be easily interfaced with robots. The controller connects to robots to determine screw speed, torque and time out, and sends a signal to the robot when the screw reaches the specified torque.

The Torque/Angle Models

Automation requires accurate torque controlling techniques. TA automated systems feature advanced monitoring strategies such as torque and rotation angle of the screw, for precise torque and angle control on all automated operations.

Plenty of options

PLUTO, MITO and NATO automated torque & angle screwdrivers cover a wide torque range of 0.18-443 lbf-in; choose the tool that best suits your application! You can set 8 independent programs either directly on the control unit or remotely.

Industry 4.0

Interconnection, automatic control and continuous monitoring are fundamental aspects of Industry 4.0. Simply connect the screwdriver controller to your PLC, robot or machine through the proper connectors to manage input/output signals such as start, stop, error and more. You can also get data reports of the full tightening procedure on advanced control units like EDU2AE/TOP/E, EDU2AE/TOP/TA and EDU2AE/TOP/NT/TA.

Torque Mode

It’s the most common mode. If the final torque and angle values are within the preset minimum and maximum values, the screw is tightened correctly and the controller will give an OK message. If the torque and/or angle are outside the pre-set values, the screw will be considered incorrectly tightened and the controller will give an error message.

Angle Mode

This mode gives priority to the angle to be reached. Starting from the pre-set threshold torque, the system will start counting the degrees and when the pre-set angle is reached the screwdriver will stop. The control unit will give an OK or NOK message depending on whether the screw is tightened correctly or not. It is also possible to set minimum and maximum values within which the set angle must be reached.

Models:
