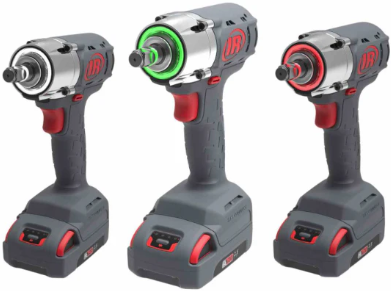

Ingersoll Rand: Responsive Tightening System (RTS) Mechanical Pulse Tool

Elevate your Assembly Line's Precision and Efficiency with Cordless Mechanical Pulse Tools

Responsive action meets torque control in the new RTS Connect. Infused with the Ingersoll Rand® proprietary torque control algorithm, this mechanical pulse tool sets a new standard for quality in your assembly operations.

The responsive tightening system perfectly blends responsive action and torque control. The Ingersoll Rand® proprietary torque control algorithm powers the simple and flexible tightening system, changing the game in reliable fastening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, 7 flush levels, dual speed non-contact trigger, and a 360° status beam LED ring light. Featuring a lightweight and ergonomic design, the cordless impact wrench enables sustained performance in continuous production environments. With reactionless performance, robust wireless connectivity, and programmable settings, the RTS Connect is the ultimate mechanical pulse tool for those who demand perfection.

SIMPLE

• An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the user.
• The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the user on the cycle status.
• 3 programming methods provide faster and smarter configuration.
  • Basic setup via the tool display
  • Advanced setup via INSIGHT™ Connect mobile app
  • Expert setup via INSIGHTqcx MTC Controller

FLEXIBLE

• Up to 8 Pset configurations reduce the need for multiple tools for different applications on the assembly line.
• Compatible with IQV20™ battery and charger platform, providing flexibility and reducing costs in operations.
• 4 communication options available to adapt to evolving connectivity requirements.
     o   Wi-Fi 2.4 and 5 Ghz
     o   Radio (802.15.4)
     o   Bluetooth
     o   USB-C

CAPABLE

• Proprietary torque control algorithm that delivers consistent, repeatable fastening every time.
• 40 torque settings and 7 flush detection levels to adapt to various application types.
• Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC Controller, reduces the hardware footprint.

ERGONOMICS

• Eliminates torque reaction
• Best-in-class tool balance and ergonomic grip design
• Lightweight design significantly reduces operator fatigue

TRANSFORM YOUR PRODUCTION WITH RTS CONNECT

Experience effortless operations with the user-friendly interface of the RTS Connect. Featuring 40 distinct torque levels, 7 flush levels, and a dual-speed non-contact trigger, and its 360° status beam LED ring light, it is tool of choice for those who demand perfection at every turn.

CONNECT SEAMLESSLY, WORK SMARTLY

RTS Connect is about making connections that count. The precision pulse tool integrates seamlessly into your assembly line with the INSIGHTqcx Multi-Tool Controller, offering complete control and security through its advanced programming parameters and multiple communication options.

Cordless Mechanical Pulse Tools that Elevate Assembly Lines

360° Status Beam Headlight: illuminates the work area and provides cycle-status feedback

Color LCD Display: with buttons for quick setup and key insights on the tool

Program 8 PSets: to eliminate the need for multiple tools on the assembly line

IQV20™ Battery Platform: Reduces the need for multiple batteries, lowering the operation costs

Advanced Features Configured in Seconds

Rehit Detection Mode: immediately stops the tool upon detection of a re-hit

Cross-Thread Reduction: reduces the risk of errors by piloting the first threads in the joint

Soft-Start: offers more control to the operator to ensure better bolt seating

Flush Detection Delay: improves accuracy when there are loads on the fastener before seating

Rehit Prevention: disables the trigger to improve quality during rapid tightening series

Reverse Disable: helps maintain control as the tool only operates in the tightening direction

One Speed: maximizes repeatability when fasteners are tightened with no variation

Illuminate the Work Area. Instant Cycle Status Feedback

The 360-degree status beam headlight on the mechanical pulse tool is a multi-color LED ring light that helps to enhance accuracy and efficiency on the assembly line. It illuminates the work area and provides clear feedback to the user on cycle status: a green light indicates OK tightening, and a red light indicates NOK tightening.

Simple Set Up with Key Insights

The integrated LCD display on the mechanical pulse tool enhances the user experience in tool operations and diagnostics by effortlessly providing key insights to the operator on the tool display. This intuitive full-color display simplifies the setup and allows users to set the tool up 2X faster than the completion.

Eliminate Tools from the Assembly Line

The 360-degree status beam headlight on the mechanical pulse tool is a multi-color LED ring light that helps to enhance accuracy and efficiency on the assembly line. It illuminates the work area and provides clear feedback to the user on cycle status: a green light indicates OK tightening, and a red light indicates NOK tightening.

Models:

Kits w/ Tool, (2) 2.5 Ah Batteries, and Charger:

Kits w/ Tool, (2) 5.0 Ah Batteries, and Charger:

The INSIGHT™ Connect App

The INSIGHT™ Connect app helps you stay productive, mobile, and in control of your fastening processes. When you use the INSIGHT™ Connect app, you can program any Ingersoll Rand® RTS Connect Series or QX Connect Series™ via smartphone or tablet. This eliminates the need for additional technical training, special software, or plant network permissions. Operators can use the app to quickly program basic or advanced tightening parameters. Once installed, the INSIGHT™ Connect app can operate offline, making it functional in large facilities or other locations, where Internet connectivity may be unreliable, increasing uptime and maximizing ease of use. The INSIGHT™ Connect app is the perfect companion to the RTS Connect and QX Connect Series™ tools, connecting to each tool wirelessly via Bluetooth®.
