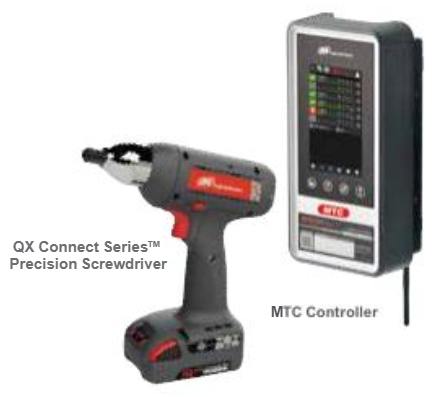

Ingersoll Rand: QX Connect

Take Total Control

Taking total control of your fastening process doesn’t have to be complicated. Our comprehensive QX Connect Series™ family of fastening systems deliver simple, flexible and capable solutions for all of your assembly requirements. No matter the industry or application, you can count on Ingersoll Rand as a trusted partner to help you get the job done right.

Simply Productive with Connectivity

The innovative QX Connect Series™ is simple for anyone to use. It offers flexibility because of its feature-rich configurations, and can manage everything from data and fast programming to modifications on your line. The QX Connect Series™ increases productivity and lowers costs — all at a price you can afford.

SIMPLE

-Multi-function display module for quick setup and feedback

-Compact, lightweight and ergonomically balanced so the operator can work without restraints

-The intuitive INSIGHT Connect app will help you stay productive & mobile on the plant oor via Bluetooth or wired connection

FLEXIBLE

-Provides up to 32 fully programmable configurations on a single tool, reducing costs and workspace clutter

-Fast and intuitive programming makes the tool easily adaptable to any needed changes on your assembly line

-Cordless and portable, allowing for effortless movement around your facility

CAPABLE

-At the heart of every tool is the closed-loop transducer control that delivers precise torque and accurate, traceable results

-Available in a variety of configurations, including pistol grip, angle wrench, multiplied, and ETS

-Wireless & Bluetooth communication options enable flexible line integration, remote monitoring and simple system programming across a plant-wide network

-Manage cycle data, control the process, receive system status alerts and implement configuration adjustments in real time with INSIGHTqcx™ using Ethernet, Fieldbus and digital I/O

How to Select the Right Tool

When it comes to fastening, non-transducerized tools don’t stand a chance. The QX Connect Series™ line of products give you closed-loop control of your fastening process, and the ease of mobility with different connectivity options. Each and every tool allows for programmable tightening strategies to deliver higher quality fastened joints and a level of control that is unmatched by other solutions. The diversity of the QX Series™ lineup offers a simple, flexible and capable solution for any fastening need.

Features:

Models	QXFN	QXFD	QXBN	QXBD	QXXN	QXXD	QXWD
Display & Keyboard	NO	YES	NO	YES	NO	YES	YES
Bluetooth	NO	NO	YES	YES	YES	YES	YES
Wireless Radio Connectivity to INSIGHTqcx	NO	NO	NO	NO	YES	YES	YES**
Programmable with INSIGHT Connect via Bluetooth	NO	NO	YES	YES	YES	YES	YES
Programmable with INSIGHT Connect and INSIGHTqcx via USB	YES	YES	YES	YES	YES	YES	YES
ETS Optional	YES	YES	YES	YES	YES	YES	YES
Number of PSETs	32*	32*	32	32	32*	32*	32*

*Note: For QXFN, QXBN, QXXN models, uses can program and select PSETs using the INSIGHT Connect App

**Note: Upgraded to Wi-Fi 6 instead of the standard Wi-Fi 5

QXFN SERIES CORDLESS TOOLS

QXFN offers superior transducerized control and operator feedback in a way that is easy to use and simple to setup. This unique series features 32 tightening configuration that can be programmed via USB using the INSIGHT Connect app. All QXFN tools have no wireless communication and can only be programmed via USB using the INSIGHT Connect app.

Features

-32 tightening configuration

-Transducerized for precise torque measurement

-Closed-loop control of torque, speed and degrees of rotation

-Simple to program via USB using the INSIGHT Connect app

-Visual operator feedback using green, yellow and red lights

-Programmable preventative maintenance alarms

-Maintenance indicator for troubleshooting and diagnostics

-1200 cycles of data storage – accessible via the INSIGHT Connect app

QXFD, QXBN & QXBD SERIES CORDLESS

The versatile QXFD, QXBN/QXBD series feature 32 tightening configurations, offering the ability to consolidate the number of tools needed in your bag or bench. The series also enhances the feedback provided from the tool by displaying the measured torque or angle results to the operator. The QXBN & QXBD models further add Bluetooth connectivity & program the tools via wireless using the INSIGHT Connect app.

Features

-Flexibility to utilize the same tool on multiple applications

-Program 32 PSETs configurations into one tool

-Visual torque validation on display

-Transducerized for precise torque measurement

-Closed-loop control of torque, speed and degrees of rotation

-Flexible Connectivity options with Bluetooth for simple programming using the INSIGHT Connect app or back of tool programming.

-Visual operator feedback using green, yellow and red lights

-Programmable preventative maintenance alarms

-Maintenance indicator for troubleshooting and diagnostics

-1200 cycles of data storage

QXXD, QXXN CORDLESS

The easy to use QXXD and QXXN, have the unique ability to integrate with line control systems for error proofing and data collection. The series also allows remote monitoring and integration with standard fastening system accessories.

Features

-With INSIGHTqcx™, complete integration into plant wide Ethernet network, for increased productivity and control

-Remote access and integrated data collection capability

-Use of INSIGHTqcx™ enables transmission of tightening data and line control integration via Ethernet, Fieldbus or I/O

-Flexibility to utilize the same tool on multiple applications

-Program 32 configurations into one tool

-Visual torque validation on display

-Transducerized for precise torque measurement

-Closed-loop control of torque, speed and degrees of rotation

-Simple to program via USB cable or back of tool programming

-Visual operator feedback using display screen and green and red lights

-Programmable preventative maintenance alarms

-Maintenance indicator for troubleshooting and diagnostics

QX ERGONOMIC TIGHTENING SYSTEM

Reducing the torque reaction in your fastening process doesn’t have to be complicated. Control and ergonomics, not compromise - that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Connect Series™ platform, with less the torque reaction.

Features

-Ergonomically enhanced motor control algorithm significantly reduces the average force experienced by the operator during the tightening process

-Red foot label provides clear indication of ETS tool identity vs standard QX tool

-Continuously flashing purple light above keypad provides operator assurance that ETS is ACTIVE

-All the capability of the QX platform, without the torque reaction

-Common software and battery platform for simple integration

-ETS features are available for all QX Connect models and available in pistol grip, low torque angle and high torque angle

-Onboard ‘pulse’ counter supports proper optimization and application of ETS tools on ideal applications (10 pulses or less per cycle)

QXM CORDLESS TORQUE MULTIPLIER

The innovative QX Series™ Cordless Torque Multiplier will reduce your fastening time and cost, while ensuring repeatable accuracy for all torque-critical joints. Designed with a premium gearbox and an efficient, time-tested closed-loop transducer, the Torque Multiplier is world-class in quality, control and programmable configurations to maximize your productivity.

Features

-A multi-function display module allowing for quick setup and feedback on every QX Series™ tool

-User-programmable parameters such as torque, angle and batch count reduce the number of tools needed when multiple applications are required

-Maintenance indicator for troubleshooting and diagnostics

-Simple programming methods make the tool easily adaptable for various applications

-Pistol and angle congurations available

Reaction Arms

Ingersoll Rand® offers the following variety of reaction arms for different applications. Reaction arms are available in both 52 mm and 72 mm spline drives, depending the on the size of the gearbox.

SYSTEM ACCESSORIES

We offer a wide range of accessories that offer ease of use and flexibility to meet your specific application needs. QX Precision Fastening Systems are compatible with a variety of plug and play accessories to maximize productivity for your manufacturing line.
