(Note: Are you here for help identifying and understanding the difference between the different INSIGHTqcx™ Controller options? Scroll down to our table at the bottom of this blog for a guide on what everything in the model number means.)

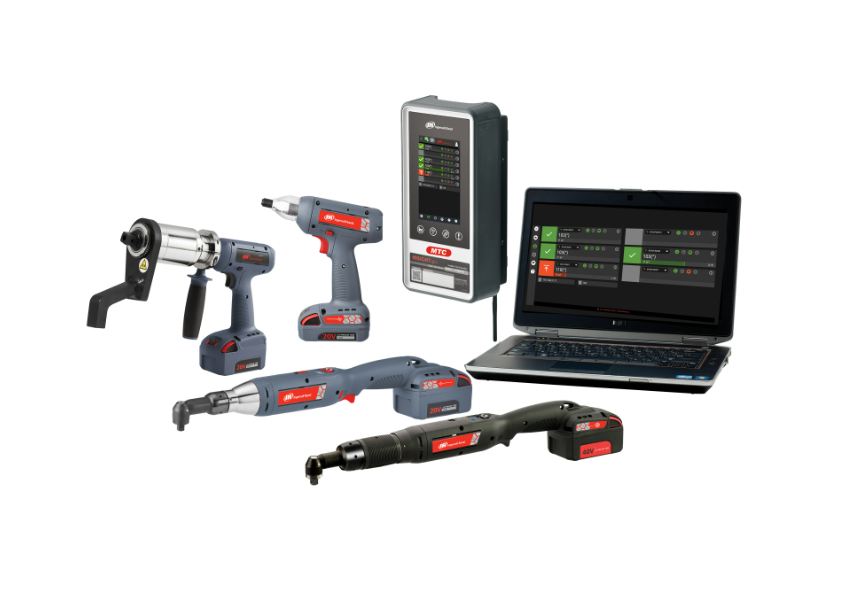

INSIGHTqcx™ Cordless Multi-Tool Controller (MTC)

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. The new Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the new Multi Tools Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller. Ingersoll Rand’s innovative solution with our QX Series™ & INSIGHTqcx MTC controller provides some of the best value available on the market, with one of the lowest total costs of ownership & cost per spindle available.

Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand® proprietary torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, 7 flush levels and dual speed non-contact trigger, and a 360° status beam LED ring light.

The INSIGHT™ Connect app helps you stay productive, mobile, and in control of your fastening processes. When you use the INSIGHT™ Connect app, you can program any Ingersoll Rand® RTS Connect Series or QX Connect Series™ via smartphone or tablet. This eliminates the need for additional technical training, special software, or plant network permissions. Operators can use the app to quickly program basic or advanced tightening parameters. Once installed, the INSIGHT™ Connect app can operate offline, making it functional in large facilities or other locations, where Internet connectivity may be unreliable, increasing uptime and maximizing ease of use. The INSIGHT™ Connect app is the perfect companion to the RTS Connect and QX Connect Series™ tools, connecting to each tool wirelessly via Bluetooth®.

Choose between multiple user-friendly PRODUCT communication options for easy integration.

• All models are equipped with 5 communication options: 2.4 GHz Wi-Fi, 5 GHz Wi-Fi, 802.15.4 Radio, Bluetooth®, and USB-C
• The RTS Connect seamlessly integrates with the INSIGHTqcx™ Controller and the INSIGHT™ Connect mobile app through a variety of communication options. The tools easily adapt to changing customer requirements with multiple communication.

The Power to Reduce Costs and Increase Flexibility

When trying to achieve simple manufacturing goals in a complex manufacturing world, understanding the fastening process doesn’t have to be complicated. The new Ingersoll Rand® INSIGHTqcx™ is different, by design. This cordless controller is designed to be easy to use and integrate, while providing a common platform to meet your assembly requirements worldwide. With the new Multi Tools Controller (MTC) software option, you also have the ability to control up to 6 tools with just one INSIGHTqcx controller. Ingersoll Rand’s innovative solution with our QX Series™ & INSIGHTqcx MTC controller provides some of the best value available on the market, with one of the lowest total costs of ownership & cost per spindle available.

CONNECT SEAMLESSLY, WORK SMARTLY

RTS Connect is about making connections that count. The precision pulse tool integrates seamlessly into your assembly line with the INSIGHTqcx™ Multi-Tool Controller, offering complete control and security through its advanced programming parameters and multiple communication options.

Features:

The controller’s web-based software eliminates device dependencies and enables full programming capability with any device that can run an internet browser, including smartphones, tablets, or computers. The INSIGHTqcx™ Cordless Controller for QXX tools is easy to integrate with the manufacturing line, provides flexible logic controls for job sequencing, and helps reduce line re-balancing costs through a simple and intuitive user interface.

Simple- Expertise not required:

• Save on selection, training & installation costs
• Reduce errors and downtime
• Remove user dependencies
• Intuitive, visual programming interface
• Plug and play accessories and protocols
• Integrated backup and recovery
• Bundled controller options
• Easy Wireless Pairing (up to 6 tools with MTC options)

Flexible- Easily implement change:

• Reduce line re-balancing costs
• Easy line integration
• Remove device dependency
• Web-based programming, use any operating system via any browser
• Meets current industry communication needs
• Integrated logic controls
• Easy hardware and software upgrades
• Onboard wireless energy scan

Capable- Meet your requirements:

• Get the job done right, every time
• Assurance via traceability
• Optimize your productivity
• Touch screen interface
• Industry-leading cycle data storage (500,000 with MTC options)
• Robust audit and system logs
• Advanced tightening strategies and features
• Onboard diagnostics
• Integrated statistical process controls

SIMPLY INSIGHTFUL The controller’s web-based software eliminates device dependencies and enables full programming capability with any device that can run an internet browser, including smart phones, tablets or computers. The INSIGHTqcx™ controller is easy to integrate with the manufacturing line, provides flexible logic controls for job sequencing and helps reduce line rebalancing costs through a simple and intuitive user interface.

INSIGHTqcx™ Cordless Controller with MTC (Multi Tool Controller) Option:

If you have received an MTC Activation card, please click on this link to activate and receive the MTC license file. As part of the activation process, you will need to provide the SATA ID # of the targeted INSIGHTqcx™ controller.

Controllers:

How to read the different Ingersoll Rand QCX Controller model options:

QCX: Series

D: Display

First M: No Display

First 1: North American Power Cord Hardware

Second 1: Standard Hardware.

2: Profibus Hardware.

3: DeviceNet Hardware.

5: CC-Link Hardware

F: Fieldbus

Second M: MES

FM: Fieldbus + MES
