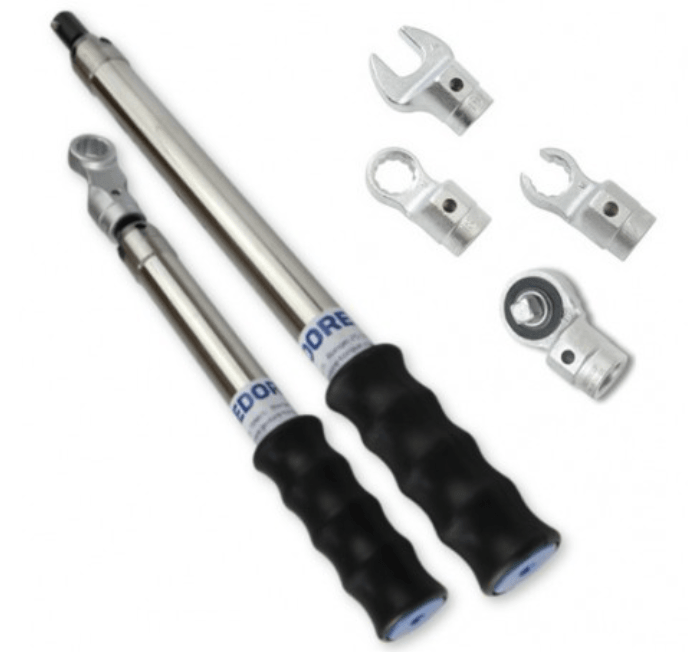

Gedore: Torque Tool Accessories
Open end fitting 16 Z metric
› For solving difficult assembly problems
› Journal holder diameter 16 mm
-------------------------------------------------
Open end fitting 16 Z inch
› For solving difficult assembly problems
› Journal holder diameter 16 mm
-------------------------------------------------
Ring end fitting 16 Z metric
› For solving difficult assembly problems
› Journal holder diameter 16 mm
-------------------------------------------------
Ring end fitting 16 Z inch
› For solving difficult assembly problems
› Journal holder diameter 16 mm
-------------------------------------------------
Flared end fitting 16 Z metric
› For solving difficult assembly problems
› Journal holder diameter 16 mm
-------------------------------------------------
End fitting 16 Z
› For solving difficult assembly problems
› Journal holder diameter 16 mm
-------------------------------------------------
8754
Ratchet head 16 Z
› Ratchet in 3/8" or 1/2"
› Journal holder diameter 16 mm
› 3/8" = 135 Nm continuous load capacity
› 1/2" = 340 Nm continuous load capacity
-------------------------------------------------
Fixed square head 16 Z
› solid square
› Journal holder diameter 16 mm
› 3/8" to 135 Nm continuous load capacity|
› 1/2" to 340 Nm continuous load capacity
-------------------------------------------------
Open end fitting 22 Z metric
› For solving difficult assembly problems
› Journal holder diameter 22 mm
-------------------------------------------------
Ring end fitting 22 Z metric
› For solving difficult assembly problems
› Journal holder diameter 22 mm
-------------------------------------------------
Fixed square head 22 Z
› Solid square
› 3/4" to 850 Nm continuous load capacity
› Journal holder diameter 22 mm
-------------------------------------------------
8794
Ratchet head 22 Z
› For solving difficult assembly problems
› Journal holder diameter 22 mm
› 3/4" max continuous load 850 Nm
-------------------------------------------------
Open end fitting 28 Z metric
› For solving difficult assembly problems
› Journal holder diameter 28 mm
› Special sizes available on request
-------------------------------------------------
Ring end fitting 22 Z metric
› For solving difficult assembly problems
› Journal holder diameter 28 mm
› Special sizes available on request
-------------------------------------------------
8794
Ratchet head 28 Z
› For solving difficult assembly problems
› Journal holder diameter 28 mm
› 3/4" up to 1000 Nm continuous load capacity
-------------------------------------------------
Rectangular open end fitting 9x12 metric
› For solving difficult assembly problems
› SE recording 9x12
-------------------------------------------------
Rectangular ring end fitting 9x12 metric
› For solving difficult assembly problems
› SE recording 9x12
-------------------------------------------------
Rectangular flared end fitting 9x12 metric
› For solving difficult assembly problems
› SE recording 9x12
-------------------------------------------------
Rectangular reversible ratchet head 9x12
› For solving difficult assembly problems
› SE recording 9x12
› Return angle 5°
› 1/4" to 30 Nm continuous load capacity
› 3/8" to 135 Nm continuous load capacity
|› 1/2" to 150 Nm continuous load capacity
-------------------------------------------------
Rectangular fixed square head 9x12
› For solving difficult assembly problems
› SE recording 9x12
› 1/4" to 30 Nm continuous load capacity
› 3/8" to 135 Nm continuous load capacity
› 1/2" to 150 Nm continuous load capacity
-------------------------------------------------
Rectangular-bit-holder 9x12
› For solving difficult assembly problems
› SE recording 9x12
-------------------------------------------------
Weld-on plug-in piece 9x12
› For solving difficult assembly problems
› Bear the depth gauges in mind
-------------------------------------------------
Rectangular ring ratchet spanner reversible 9x12
› UD profile, fine toothed
› Switch lever for right/ left rotation
› To operate with a 9x12 mm torque wrench or rectangular handle 9x12 mm
-------------------------------------------------
Plug-in pick-up handle SE 9x12
› For insert tools 9x12
› Without torque function
› Max. Continuous load capacity 150 Nm
-------------------------------------------------
Rectangular open end fitting 14x18 metric
› For solving difficult assembly problems
› SE recording 14x18
-------------------------------------------------
Rectangular ring end fitting 14x18
› For solving difficult assembly problems
› SE recording 14x18
-------------------------------------------------
Rectangular reversible ratchet head 14x18
› For solving difficult assembly problems
› SE recording 14x18
› Return angle 7°
› 1/2" to 340 Nm continuous load capacity
› 3/4" to 400 Nm continuous load capacity
-------------------------------------------------
Rectangular fixed square head 14x18
› For solving difficult assembly problems
› SE recording 14x18
› 1/2" to 340 Nm continuous load capacity
› 3/4" to 400 Nm continuous load capacity
-------------------------------------------------
Weld-on plug-in piece 14x18
› For solving difficult assembly problems
› SE recording 14x18
› For special tools observe the gauge
