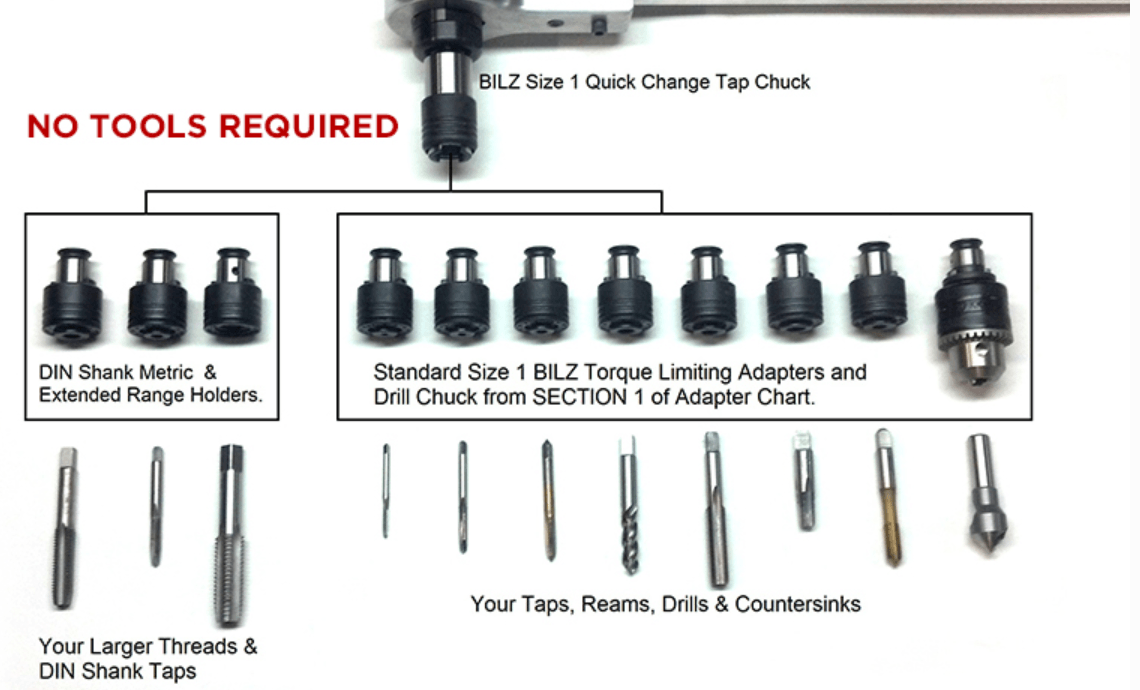

For TAxx-A5 Package Chose any 5 Adapters or 4 Tap Adapters and 1 Drill Chuck Adapter from this section
|
 |
Size 1 Torque Limiting Tap Adapters
(clutch reduces tap breakage) |
 |
Size 1 Drill Chuck Adapter |
|
| |
TAP SIZE |
|
| ETA Part No. |
American Inch Taps |
US Shank Metric Taps |
Bilz Designation |
Shank Diameter |
Drive Square |
| TLA-006 |
#0 thru #6 |
M1.6 thru M3.5* |
WES1B #0 - #6 |
0.141 |
0.110 |
| TLA-008 |
#8 |
M4 |
WES1B #8 |
0.168 |
0.131 |
| TLA-010 |
#10 |
M4.5, M5* |
WES1B #10 |
0.194 |
0.152 |
| TLA-012 |
#12 |
|
WES1B #12 |
0.220 |
0.165 |
| TLA-250 |
1/4 |
M6, M6.3 |
WES1B 1/4 |
0.255 |
0.191 |
| TLA-312 |
5/16 |
M7, M8 |
WES1B 5/16 |
0.318 |
0.238 |
| TLA-375 |
3/8 |
M10 |
WES1B 3/8 |
0.381 |
0.286 |
| TLA-438 |
7/16 |
|
WES1B 7/16 |
0.323 |
0.242 |
| TLA-500 |
1/2 |
M12, M12.5 |
WES1B 1/2 |
0.367 |
0.275 |
| TLA-562 |
9/16 |
M14 |
WES1B 9/16 |
0.429 |
0.332 |
| TLA-1PSS |
1/8 npt |
|
WES1B 1/8-SS |
0.3125 |
0.234 |
| TLA-1PLS |
1/8 npt |
|
WES1B 1/8-LS |
0.437 |
0.328 |
| TCA-520 |
Chuck Adapter Only |
WE1 A36 1/2-20 |
1/2 - 20 Threads |
| TCA-50C |
Adapter with Drill Chuck Included |
Jacobs |
1/2" Capacity Keyed Chuck |
Size 1 Posi-Drive Tap Adapters
(direct drive without torque limiting clutch) |
 |
|
| |
TAP SIZE |
|
| ETA Part No. |
American Inch Taps |
US Shank Metric Taps |
Bilz Designation |
Shank Diameter |
Drive Square |
| TPD-006 |
#0 thru #6 |
M1.6 thru M3.5* |
WES1B #0 - #6 |
0.141 |
0.110 |
| TPD-008 |
#8 |
M4* |
WES1B #8 |
0.168 |
0.131 |
| TPD-010 |
#10 |
M4.5, M5* |
WES1B #10 |
0.194 |
0.152 |
| TPD-012 |
#12 |
|
WES1B #12 |
0.220 |
0.165 |
| TPD-250 |
1/4 |
M6, M6.3 |
WES1B 1/4 |
0.255 |
0.191 |
| TPD-312 |
5/16 |
M7, M8 |
WES1B 5/16 |
0.318 |
0.238 |
| TPD-375 |
3/8 |
M10 |
WES1B 3/8 |
0.381 |
0.286 |
| TPD-438 |
7/16 |
|
WES1B 7/16 |
0.323 |
0.242 |
| TPD-500 |
1/2 |
M12, M12.5 |
WES1B 1/2 |
0.367 |
0.275 |
| TPD-562 |
9/16 |
M14 |
WES1B 9/16 |
0.429 |
0.332 |
| TPD-625 |
5/8 |
M16 |
WEK 5/8 |
0.480 |
0.360 |
| TPD-1PSS |
1/8 npt |
|
WES1B 1/8-SS |
0.3125 |
0.234 |
| TPD-1PLS |
1/8 npt |
|
WES1B 1/8-LS |
0.437 |
0.328 |
Size 1 Extended Range Tap Adapters
( LIGHT DUTY USE ONLY )
|
| ETA Part No. |
American Inch Taps |
Drive Type |
Designation |
Shank Diameter |
Drive Square |
| TXL-625 |
5/8 |
Torque Clutch |
WESK1B 5/8 |
0.480 |
0.360 |
| TXD-688 |
11/16 |
Direct Drive |
51-011 |
0.542 |
0.406 |
| TXD-750 |
3/4 |
Direct Drive |
51-012 |
0.590 |
0.442 |
| TXD-813 |
13/16 |
Direct Drive |
51-013 |
0.652 |
0.489 |
| TXD-875 |
7/8 |
Direct Drive |
51-014 |
0.697 |
0.523 |
| TXD-2P |
1/4 npt |
Direct Drive |
51-2040 |
0.563 |
0.421 |
| TXD-3P |
3/8 npt |
Direct Drive |
51-2060 |
0.700 |
0.531 |
| TXD-4P |
1/2 npt |
Direct Drive |
51-2080 |
0.688 |
0.515 |
Size 1 METRIC Torque Limiting Adapters
(clutch reduces tap breakage)
DIN Standard Shanks |
 |
|
| ETA Part No. |
Tap Size |
Bilz Part Number |
Bilz Designation |
Shank Diameter |
Drive Square |
| TLA-M3 |
M3 |
21201017 |
WES1B M3 |
3.5MM |
2.7MM |
| TLA-M4 |
M4 |
21201030 |
WES1B M4 |
4.5MM |
3.4MM |
| TLA-M5 |
M5 |
21201054 |
WES1B M5 |
6.00MM |
4.9MM |
| TLA-M6 |
M6 |
21201054 |
WES1B M6 |
6.0MM |
4.9MM |
| TLA-M8A |
M8 |
21201086 |
WES1B M8 |
8.00MM |
6.2MM |
| TLA-M10A |
M10 |
21201115 |
WES1B M10 |
10.0MM |
8.0MM |
| TLA-M8B |
M8 |
21201054 |
WES1B M8 |
6.0MM |
4.9MM |
| TLA-M10B |
M10 |
21201068 |
WES1B M10 |
7.0MM |
5.5MM |
| TLA-M12 |
M12 |
21201099 |
WES1B M12 |
9.0MM |
7.0MM |
| TLA-M14 |
M14 |
21201123 |
WES1B M14 |
11.0MM |
9.0MM |
Size 1 METRIC Posi- Drive Tap Adapters
(without torque limiting clutch)
DIN Standard Shanks |
|
|
| ETA Part No. |
Tap Size |
Bilz Part Number |
Bilz Designation |
Shank Diameter |
Drive Square |
| TDP-M3 |
M3 |
21201017 |
WE1 M3 |
3.5MM |
2.7MM |
| TDP-M4 |
M4 |
21201030 |
WE1 M4 |
4.5MM |
3.4MM |
| TDP-M5 |
M5 |
21201054 |
WE1 M5 |
6.00MM |
4.9MM |
| TDP-M6 |
M6 |
21201054 |
WE1 M6 |
6.0MM |
4.9MM |
| TDP-M8A |
M8 |
21201086 |
WE1 M8 |
8.00MM |
6.2MM |
| TDP-M10A |
M10 |
21201115 |
WE1 M10 |
10.0MM |
8.0MM |
| TDP-M8B |
M8 |
21201054 |
WE1 M8 |
6.0MM |
4.9MM |
| TDP-M10B |
M10 |
21201068 |
WE1 M10 |
7.0MM |
5.5MM |
| TDP-M12 |
M12 |
21201099 |
WE1 M12 |
9.0MM |
7.0MM |
| TDP-M14 |
M14 |
21201123 |
WE1 M14 |
11.0MM |
9.0MM |
