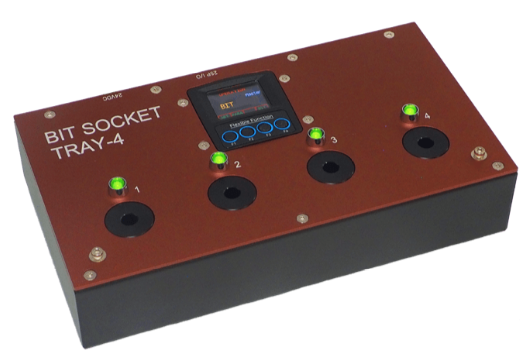

Doga: Bit Tray BST-LCD
Bit tray BST LCD
Ranging from 4 to 16 slots, and with different bit holder diameters, the BST-LCD bit tray works with all electric screwdrivers and other devices using 24 VDC inputs/outputs. It will ensure you an incomparable quality of work.
Benefits
Large capacity
• 4 models from 4 to 16 slots, lay on workbench.
• Small footprint.
• Small footprint.
Easy adjustment
• Screen for easy set-up of the bit tray.
• Bits can be linked directly to a tightening program (1 to 1 selection) or freely according to a matching table.
• Bits can be linked directly to a tightening program (1 to 1 selection) or freely according to a matching table.
Compatibility
• Suitable for all types of steel bits and all screwdrivers.
Ergonomics
• All bit trays feature an AMOLED color display for easy access to the various menus.
Product description
How does it work?
It could not be easier!
Two working modes are available:
1. «Master» mode: selection of a bit by the operator activates a program.
2. «Slave» mode: the operator picks up the correct bit by activated LED (selecting the wrong bit locks the screwdriver).
The BST-LCD uses inductive sensors to detect the presence of the bits.
Features
Supplied without bit holder.
Included 230 VAC / 24 vdc, 1A power supply.
Models
| Model | Code | Length | Height | Depth |
| BST-4 LCD bit tray | P101335 | 220 mm | 55 mm | 120 mm |
| BST-8 LCD bit tray | P100637 | 220 mm | 55 mm | 120 mm |
| BST-12 LCD bit tray | P104924 | 320 mm | 55 mm | 120 mm |
| BST-16 LCD bit tray | P105704 | 420 mm | 55 mm | 120 mm |
