Desoutter: E-Lit Premium Electronic Motor Speed Setting

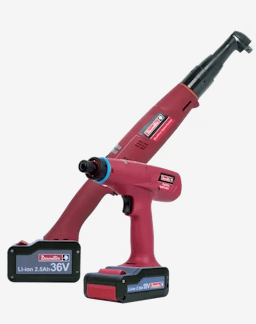

Accurate and durable, Desoutter’s ELS Dual Speed battery clutch tool is available in both pistol or angle-head, providing high repeatability, low maintenance and excellent ergonomics. Featuring a brushless motor, speed setting, two battery positions and LED operator feedback, the ELS is the perfect choice for standard tightening applications.
-
Brushless motor and long-life gears provide reliability and low maintenance costs.
-
Dual speed setting for increased clamp load quality, boosting your productivity whilst reducing your cycle time & quality costs.
-
Plug and play speed setting accessory for a maximum flexibility and quick setup to lower indirect labor cost.
-
Rehit prevention to prevent the operator from re-tightening the assembly
-
Direct operator feedback with the 3 colored LED’s reducing your cycle time and potential quality costs.
-
Exceptional ergonomics with finger support and 2 battery positions to reduce operator fatigue, and boost your productivity.
-
Easy reverse mode and buzzer setting for operator comfort reducing your cycle time and operating costs.
-
Front LED to guide the operator even in reduced visibility applications, reducing your cycle time and potential quality costs.
-
Accurate torque repeatability ensuring the quality of each tightening and reducing your potential warranty costs
Models:
| Model | Part Number | Torque Range | Drive | RPM |
| ELS8-400-P | 6151656050 | 3-8 Nm | 1/4" Hex | 400 |
| ELS7-360-A4S | 6151657250 | 2.5-7 Nm | 1/4: Hex | 360 |
| ELS7-880-A | 6151656280 | 2.5-7 Nm | 1/4: Hex | 880 |
| ELS7-880-A10S | 6151658880 | 2.5-7 Nm | 3/8" Square | 880 |
| ELS8-800-P | 6151654210 | 3-8 Nm | 1/4" Hex | 800 |
| ELS6-1000-P | 6151654200 | 2-6 Nm | 1/4" Hex | 1000 |
| ELS8-400-P4S | 6151658250 | 3-8 Nm | 1/4" Hex | 400 |
| ELS60-160-A | 6151656320 | 25-60 Nm | 1/2" Square | 160 |
| ELS15-480-A | 6151656290 | 5-15 Nm | 3/8" Square | 480 |
| ELS12-600-P | 6151654220 | 5-12 Nm | 1/4" Hex | 600 |
| ELS2.5-1550-P | 6151654190 | 0.8-2.5 Nm | 1/4" Hex | 1550 |
| ELS45-180-A | 6151656310 | 20-45 Nm | 3/8" Square | 180 |
| ELS30-300-A | 6151656300 | 14-30 Nm | 3/8" Square | 300 |
| ELS12-400-P4S | 6151658260 | 5-12 Nm | 1/4" Square | 400 |
| ELS15-480-A4S | 6151658390 | 5-15 Nm | 1/4" Square | 480 |
