Cleco: Torque Analyzer (CTA)

Cleco: Torque Analyzer (CTA)

Torque Analyzer

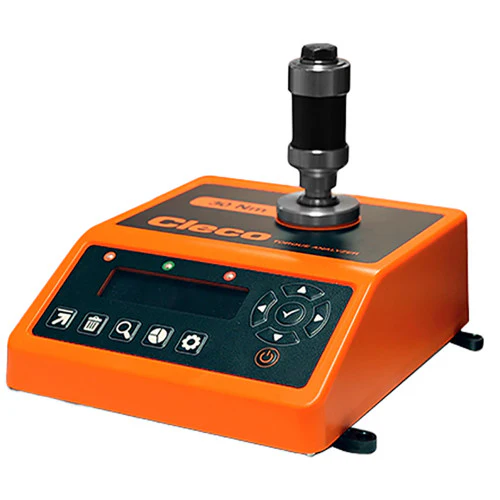

Cleco CTA3038 Torque Analyzer is a versatile and precise tool designed for measuring torque in various industrial applications. With a torque range spanning from 2.2 to 22 ft-lbs, this analyzer offers accurate and reliable torque measurement capabilities across a wide spectrum of torque values. Engineered with advanced sensing technology, the CTA3038 provides precise torque readings, enabling users to ensure proper fastener tightening and assembly integrity. Its wide torque range makes it suitable for a diverse range of applications, from delicate electronic components to heavier machinery and equipment. Built to withstand the demands of industrial settings, the CTA3038 Torque Analyzer boasts a durable construction that ensures reliability and longevity. Its robust design makes it suitable for use in challenging work environments, providing accurate torque measurement results consistently over time. The Cleco CTA3038 Torque Analyzer offers an indispensable solution for precise torque measurement needs across a wide range of industrial applications.

Up to 68Nm/50 ftlbs use with Electric, Pneumatic Clutch Stall and Pulse and Manual Electronic and Click Torque Wrenches


Features

  • Choice of measurement modes including track, peak, pulse, and click
  • Memory for 999 date- and time-stamped readings for complete traceability
  • 3-color LED indication of torque measurement status
  • Easy-to-operate for fast and accurate torque readings and assembly tool auditing
  • Automatically switches to highest voltage power source (main/USB/battery)
  • Clear, easy-to-read white OLED screen for basic torque data readings and alerts
  • Analyzer supplied with either 4Nm or 30Nm rundown joint
  • Range can be expanded with optional 68Nm transducer and rundown kit - suitable for 4Nm and 30Nm analyzer (more information below)

Models

Model Torque Range
CTA0414 3.5-35 in-lb (0.4-4 Nm)
CTA3038 2.2-22 ft-lb (3-30 Nm)



Optional 68Nm Stationary Transducer Kit

Model Description
CST6838
68 Nm Stationary Transducer
CJK38
Female Stationary Joint Kit 3/8"





Accessories

Model Description
CJK0004
Dynamic Joint Kit 4Nm for use with CTA0414
CJK0030
Dynamic Joint Kit 30Nm for use with CTA3038
