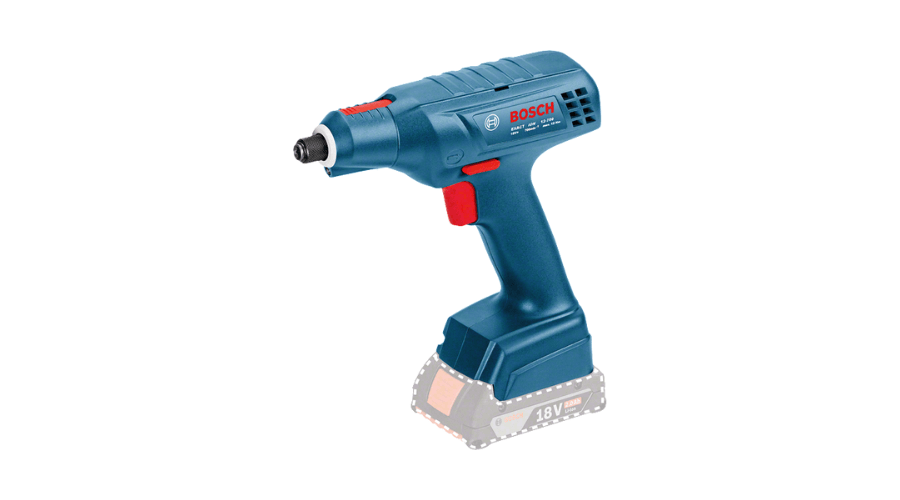

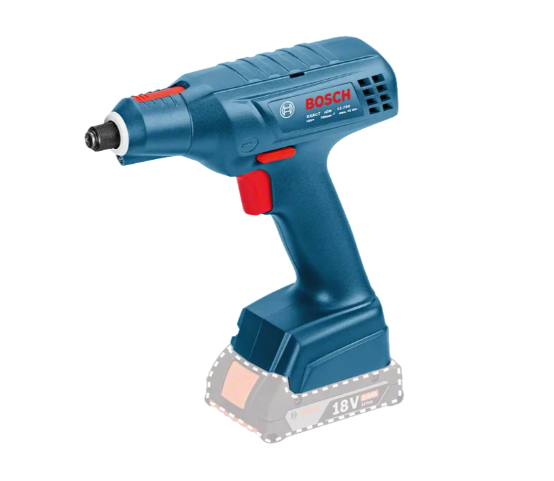

Bosch Production: Exact Ion Pistol
The handy Bosch cordless shut-off screwdrivers in the EXACT range are now more powerful and efficient than ever before. Enabling the highest repeatability, they are especially suitable for driving rows of screws and completing assembly applications with maximum performance while meeting very high quality demands. Thanks to Bosch lithium-ion battery technology, they deliver maximum power for high torques and speeds. They are also extremely resilient with minimal energy loss, so they additionally reduce your costs with their superior life-
time. Their low weight of only 1.3 kg (2.9 lbs)[EXACT ION] also ensures impressively comfortable working in shift operations.
time. Their low weight of only 1.3 kg (2.9 lbs)[EXACT ION] also ensures impressively comfortable working in shift operations.
Precise and accurate shut-off
The EXACT clutch ensures high torque repeatability and accuracy. Whether in a hard screwdriving application of 30 degrees or a soft screwdriving application of 720 degrees, the clutch guarantees an extremely low mean value offset and consistent torque. Shut-off meets ISO 5393 requirements.
User-friendly features
The EXACT clutch offers 15% more torque in left-hand rotation for loosening screws. Specified torque is always reached regardless of battery voltage. The electronics prevent the tool from running if the battery falls below a minimum voltage. The clutch is adjusted using a special tool. If the adjustment tool is stored
in a location inaccessible to the user, the torque cannot be adjusted unintentionally. Color marking rings enable quick identification of different screwdrivers in the assembly line.
Precise and stable under load
Bosch quality testing for the EXACT family is extremely rigorous. The shut-off clutch of the EXACT tools must survive 500,000 cycles* without failure before being released for production. During continuous operation, they must maintain an ISO 5393 standard Cmk value greater than 1.67 with a tolerance of ± 10%.
A proven module
The shut-off clutch used in the EXACT cordless screwdriver family is the identical clutch used in our line ofproduction air tools. This clutch has been used in many applications over the years and has proven itself a million times over at many of our customers’ facilities.
- Capable of Multi-Step Tightening Processes!
- Speed and direction can be programmed as needed.
- The clear Bosch advantage = improved joint quality, reduced assembly times and better worker ergonomics.
- Precision shut-off clutch with Cmk > 1.67 (at a tolerance of ± 10% in accordance with ISO 5393)
- Multi-stage screwdriving process, adjustable to your individual application via USB interface
- Bosch Premium lithium-ion technology for long lifetime and runtime
- Brushless (EC) motor for 30% more efficiency (compared to conventional DC motors) and extremely long lifetime
- New ergonomic design and lower weight for more comfort
- Higher rotational speeds (compared to SEC-EXACT) and the screwdriving stages reduce production times and improve quality
- USB interface for configuring speed of screwdriving stages, adjustable to your specific application
- New switch module and new handle design, for more ergonomic use
- Visual and audible indication of screwdriving results and battery status, for the greatest process reliability
- 1/4" quick-release chuck, for fast bit changes
- Lighting LED, for optimum illumination of the work area
- The proven Bosch shut-off clutch is adjustable with a special tool, for the highest accuracy
- New type of modular electronics, for easier maintenance
- The safest 18 volt Li-Ion battery pack, with extremely long lifetime
- Lighting LED adjustable, for optimum illumination of the work area
| Model | Part Number | Description |
| Exact Ion 2-700 | 0602494410 | Torque-Range 0.6-2 Nm / 70-700 rpm |
| Exact Ion 4-2000 | 0602494411 | Torque-Range 1-4 Nm / 200-2000 rpm |
| Exact Ion 6-1500 | 0602494412 | Torque-Range 1-6 Nm / 150-1500 rpm |
| Exact Ion 8-1100 | 0602494413 | Torque-Range 1.5-8 Nm / 110-1100 rpm |
| Exact Ion 12-700 | 0602494414 | Torque-Range 1.5-12 Nm / 70-700 rpm |
| Exact Ion 12-450 | 0602494415 | Torque-Range 1.5-12 Nm / 45-450 rpm |
Accessories:
- BATTERY PROTECTOR CLEAR (6AH) 5-PACK PROFESSIONAL - 0602496010
- BODY PROTECTOR 10-PACK PROFESSIONAL - 0602494010 Clear, Red, Blue & Clear
- 18V BATTERY OPTIONS: 2.0Ah, 5.0Ah, 4.0Ah, 3.0Ah, 8.0Ah, 6.2Ah
