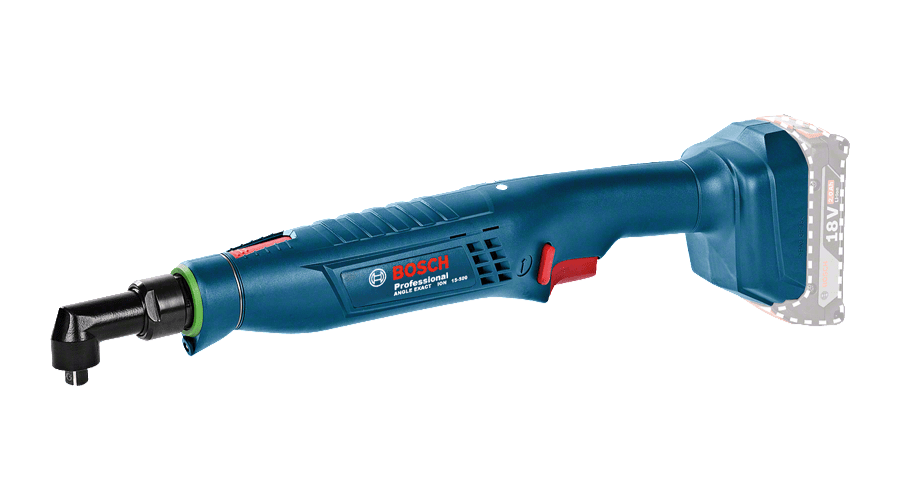

Bosch Production: Angle Exact Ion Tool

Precise and accurate shut-off
The EXACT clutch ensures high torque repeatability and accuracy. Whether in a hard screwdriving application of 30 degrees or a soft screwdriving application of 720 degrees, the clutch guarantees an extremely low mean value offset and consistent torque. Shut-off meets ISO 5393 requirements.

User-friendly features
The EXACT clutch offers 15% more torque in left-hand rotation for loosening screws. Specified torque is always reached regardless of battery voltage. The electronics prevent the tool from running if the battery falls below a minimum voltage. The clutch is adjusted using a special tool. If the adjustment tool is stored
in a location inaccessible to the user, the torque cannot be adjusted unintentionally. Color marking rings enable quick identification of different screwdrivers in the assembly line.

Precise and stable under load
Bosch quality testing for the EXACT family is extremely rigorous. The shut-off clutch of the EXACT tools must survive 500,000 cycles* without failure before being released for production. During continuous operation, they must maintain an ISO 5393 standard Cmk value greater than 1.67 with a tolerance of ± 10%.

A proven module
The shut-off clutch used in the EXACT cordless screwdriver family is the identical clutch used in our line ofproduction air tools. This clutch has been used in many applications over the years and has proven itself a million times over at many of our customers’ facilities.

Greater process reliability: Via multi-step tightening process, adjustable via USB interface.

Increased efficiency: Via higher speed and Bosch EC motor technology

Improved comfort: Via reduced weight and new slim grip design

Reduce production costs: Production times are reduced via faster speeds & programmable tightening steps

USB interface for configuring speed of screwdriving stages, adjustable to your specific application
New switch module and new handle design, for more ergonomic use
Visual and audible indication of screwdriving results and battery status, for the greatest process reliability
Lighting LED, for optimum illumination of the work area
The proven Bosch shut-off clutch is adjustable with a special tool, for the highest accuracy
New type of modular electronics, for easier maintenance
The safest 18 volt Li-Ion battery pack, with extremely long lifetime
Lighting LED adjustable, for optimum illumination of the work area
Angle head adjustable, for even more ergonomic use
Precision shut-off clutch with Cmk > 1.67 (at a tolerance of ±10% in accordance with ISO 5393)
Multi-stage screwdriving process, adjustable to your individual application via USB interface
Bosch Premium lithium-ion technology for long lifetime and runtime
Brushless (EC) motor for 30% more efficiency (compared to conventional DC motors) and extremely long lifetime
New ergonomic design and lower weight for even more comfortable working
Higher rotational speeds (compared to SEC-EXACT) and the screwdriving stages reduce production times and improve quality

Model	Part Number	Description
ANGLE EXACT ION 3-500	0602494608	Torque-Range 0.7-3 Nm / 50-520 rpm
ANGLE EXACT ION 8-1100	0602494610	Torque-Range 2-8 Nm / 110-1100 rpm
ANGLE EXACT ION 15-500	0602494611	Torque-Range 2-15 Nm / 50-500 rpm
ANGLE EXACT ION 23-380	0602494612	Torque-Range 8-23 Nm / 38-380 rpm
ANGLE EXACT ION 30-300	0602494613	Torque-Range 10-30 Nm / 30-300 rpm
ANGLE EXACT ION 30-290	0602494617	Torque-Range 10-30 Nm / 29-290 rpm
ANGLE EXACT ION 40-220	0602494614	Torque-Range 10-40 Nm / 22-220 rpm
ANGLE EXACT ION 50-200	0602494615	Torque-Range 15-50 Nm / 20-200 rpm
ANGLE EXACT ION 60-120	0602494616	Torque-Range 20-60 Nm / 12-120 rpm

Looking for smaller 12V Bosch Pistol and Angle Tools? Click Here

Looking for 18V Exact Ion Pistol Tools? Click Here

Looking for a Pistol Tool that you can add Custom and Specialty Tightening Attachments? Click Here

Need the Bosch Configuration Software to set up your new Bosch Exact tool? Click Here

Need to know how to Calibrate your Bosch Exact tools? Watch our Tutorial!

Accessories:

ANGLE HEAD 1/4" SQUARE DRIVE - 0607453617
ANGLE HEAD 1/4'' INTERNAL HEXAGON DRIVE - 0607453618
ANGLE HEAD 3/8" SQUARE DRIVE - 0607453620
ANGLE HEAD 1/4" QUICK CHANGE HEX (POWER BIT) - 0607453630
STRAIGHT (INLINE) HEAD 1/4" QUICK CHANGE HEX (POWER BIT) - 0607453631
ANGLE HEAD HD 3/8" SQUARE DRIVE FOR 30Nm TOOLS - 0607451618
ANGLE HEAD PROTECTIVE CAP PROFESSIONAL - 3605500171
BODY PROTECTOR PROFESSIONAL - 0602494010 Clear, Red, Blue & Clear
SNAP RINGS COLOR CODED FOR IDENTIFICATION - 3600106027
18V BATTERY OPTIONS: 2.0Ah, 5.0Ah, 4.0Ah, 3.0Ah, 8.0Ah, 6.2Ah
Download the Bosch Exact Config 2024

Custom and Specialty Angle Heads

Bosch's Angle EXACT ION tools are built around a separate angle head rather than a fixed one, which means that head can be swapped out for a custom version from a manufacturer, like Jemms and Leubbering,instead of sticking with Bosch's stock options. That opens up the ability to build the angle, reach, and torque handling around the specific fastening job rather than forcing the job to fit a standard head. This comes in handy in tight assembly spaces where the stock geometry doesn't quite line up with the fastener location, since a custom head can be engineered to match those exact clearance and access needs.

Here are some examples of those custom heads:
