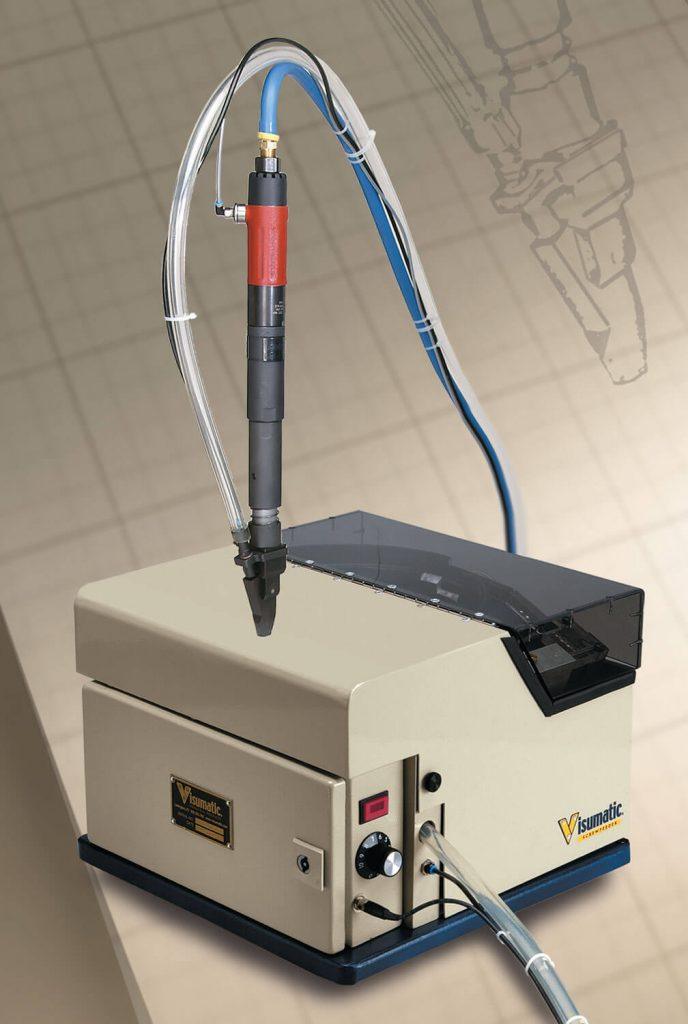

Visumatic VLB-900 Locking Bit with Screwfeeder

Locking Bit with Screwfeeder

Application:

Engages screw in the nosepiece tooling tip so operators can align mating parts for vertical applications.

Visumatic invented the Locking Bit Handheld System, with over 20 years of research and development. It’s the simplest, most reliable driving system on the market.

Our exclusive design:

• Keeps the bit and screw engaged in the nosepiece
• The operator can align the parts prior to fastening, using the screw to feel the joint
• Allows vertical, horizontal and inverted applications, with Inline or Pistol Grip assemblies

Using the VLB Locking Bit the operator can ‘ice pick’ the assembly ensuring proper alignment; maximum productivity. It’s become the most preferred screwdriving system when compared side-by-side with other brands.

The Visumatic Advant-Edge

Visumatic systems are designed for your part, with the best choice of:

• Drive Motor: Pneumatic, AC or DC Electric Torque Control
• Nosepiece: Jaw, Finder-Jaw, Mini
• Feeder Escapement: Standard, Cam, or Finger, Orientor

Locking Bit

• As the screw is blown from the automatic feed system, the Locking Bit assembly retracts the bit, allowing the screw into
• Once the screw reaches the nosepiece, the Locking Bit assembly spring -returns to the fully -extended locked -in -place position, engaging the driver bit and
• With the Locking Bit and screw engaged, the operator is able to positively locate the driving position, putting the screw into the hole before initiating the drive cycle.
