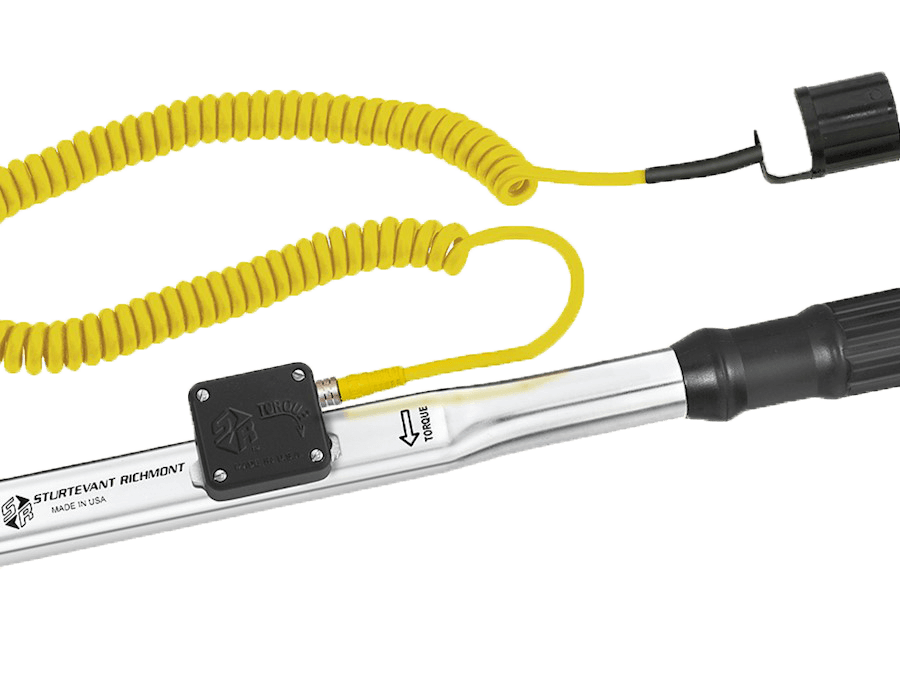

Sturtevant-Richmont SLTC Hardwired Series
Our Hardwired Preset Clicker-Type Torque Wrenches are based on our industry favorite LTC/LTCR/LTCS line of preset torque wrenches. The SLTC Hardwired wrenches can be connected to a PLC or DC Controller.
- Accuracy of +/- 4% of preset value from 20% to 100% of capacity.
- Meets or exceeds requirements of ASME B107.300-2010 and ISO 6789.
- Five of seven models use the incredibly strong SR dovetail and can be used with any of over 200 SR Interchangeable Heads.
- Tamper-resistant torque setting mechanism design facilitates setting and discourages unauthorized torque setting changes.
- Excellent audible and tactile impulse when preset torque is achieved.
- Light weight and cushion grip provide excellent ergonomics.
- Slender body facilitates use in constrained-access applications.
- Microswitch closes when the tool clicks and opens immediately when pressure is released.
- Separate cable with connector (required) facilitates replacement if damaged.
- Rated at 60 VAC/75 VDC at 3 Amperes maximum
Features
- Wired
- Interchangeable Heads
Wrenches
| Model Number | Part Number | Description | Torque Range | Drive Type | Weight (g) |
Additional Feature
|
| Sturtevant Richmont SLTC 150 I | 810854 | CLICK | PRESET | HARDWIRED SIGNAL TORQUE WRENCH | 30-150 IN-LBS (3.4-17 NM) | 30-150 in-lb (3.4-17 Nm) | Interchangeable Head | 284 | Dovetail |
| Sturtevant Richmont SLTC 300 I | 810855 | CLICK | PRESET | HARDWIRED SIGNAL TORQUE WRENCH | 60-300 IN-LBS (7-34 NM) | 60-300 in-lb (7-34 Nm) | Interchangeable Head | 284 | Dovetail |
| Sturtevant Richmont SLTC 750 I | 810856 | CLICK | PRESET | HARDWIRED SIGNAL TORQUE WRENCH | 150-750 IN-LBS (17-85 NM) | 150-750 in-lb (17-85 Nm) | Interchangeable Head | 284 | Dovetail |
| Sturtevant Richmont SLTC 1800 I | 810857 | CLICK | PRESET | HARDWIRED SIGNAL TORQUE WRENCH | 360-1800 IN-LBS (41-204 NM) | 360-1800 in-lb (41-204 Nm) | Interchangeable Head | 647 | Dovetail |
| Sturtevant Richmont SLTC 3600 I | 810858 | CLICK | PRESET | HARDWIRED SIGNAL TORQUE WRENCH | 720-3600 IN-LBS (51-408 NM) | 720-3600 in-lb (51-408 Nm) | Interchangeable Head | 2557 | Dovetail |
| Sturtevant Richmont SLTCS 7200 I | 810859 | CLICK | PRESET | HARDWIRED SIGNAL TORQUE WRENCH | 1440-7200 IN-LBS (163-813 NM) | 1440-7200 in-lb (163-813 Nm) | 3/4" Square Drive (Fixed Head) | 3807 | |
| Sturtevant Richmont SLTCR 7200 I | 810860 | CLICK | PRESET | HARDWIRED SIGNAL TORQUE WRENCH | 1440-7200 IN-LBS (163-813 NM) | 1440-7200 in-lb (163-813 Nm) | 3/4" Square Drive (Ratchet Head) | 4602 |
