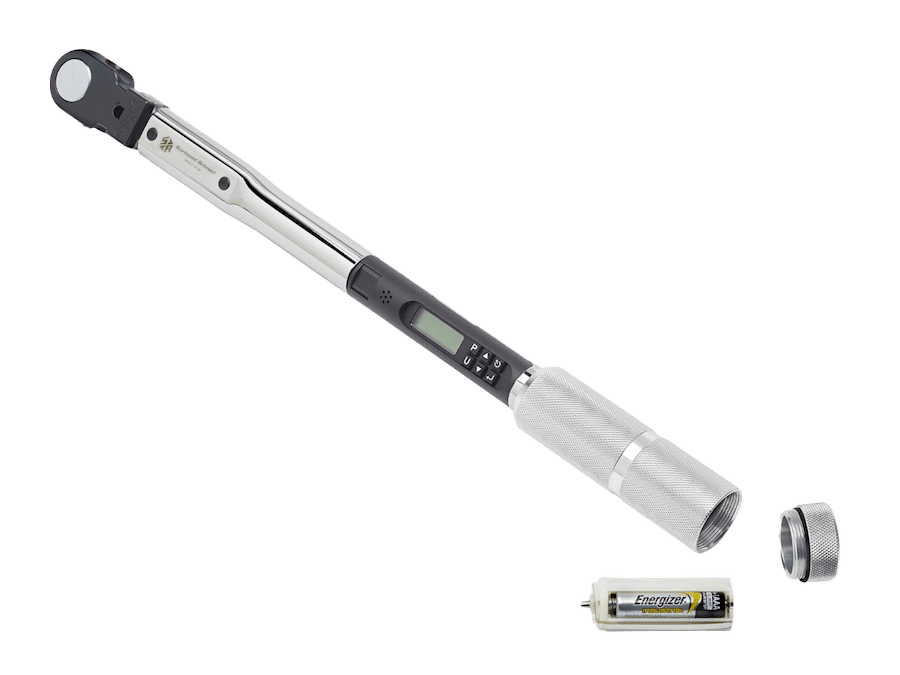

Sturtevant-Richmont DTC Series
Interchangeable Head Digital Torque and Angle Wrench
- Meets/exceeds ASME B107.300-2010 and ISO 6789 requirements
- Bi-directional +/- 2% Indicated Value from 20% to 100% of tool capacity.
- All torque and angle settings can be set using buttons on wrench or DTC Connect Freeware.
- Built around our traditional pin/spring Dovetail you have access to over 200 interchangeable heads.
- SDRT head included with wrench.
- Head length is adjustable via keypad. Uses 1 7/16” (36.5 mm) or 3 7/8” (98.4 mm) and maintains common centerline.
- Visible from any angle, light bands on both sides of the wrench turn yellow, then green, the wrench beeps, and the handle vibrates when target torque is achieved.
- Three AAA batteries included with a wrench. Works with rechargeable NiMH, Lithium Ion, or alkaline batteries.
- Target, minimum, and maximum torque entered via wrench keypad or DTC Connect Freeware.
- Lockable settings (and presets), via 4-digit password.
- Torque units: in.lb., ft.lb., Nm, cNm, cmkg, mkg. • 99 presets, numbered 01-99, optionally named via serial command with up to 16-character names.
- Results log large enough for even the busiest assemblies. Download results in csv. format via mini-USB port.
- New, smaller profile fits in more places with a light-weight, rugged design.
Five Modes of Operation:
- TAM (torque and angle monitoring – double hit protection and identifies changing joint conditions)
- T2A (torque to angle – for highly engineered assemblies)
- Track Mode (displays torque value as torque is applied. No angle measurement)
- Residual (measures existing torque on previously tightened fasteners)
- Peak (all torque, no angle measurement)
All models come with our traditional Pin and Spring Dovetail which gives you access to using more than 200 SR one-piece, interchangeable heads. Wrenches calibrated for use with heads having 1 7/16” (36.5mm) common centerline. On request wrenches can be calibrated for 3 7/8” (98.4mm) centerline. The DTC can change the common centerline head length in the software setting and not have to recalibrate the tool.
DTC Connect
When you connect your DTC with DTC Connect Software you can:
- Set unit of measure, torque mode, and torque values directly from your Windows PC.
- Set, change, name and save parameters
- Download the results log from the wrench and upload the CSV formatted file to Excel or another program.
- Say goodbye to terminal emulator programs with this Windows PC-based software
Features
- Torque & Angle
- Interchangeable Head
- Shear Beam Technology
- DTC Connect Software
Torque Wrenches:
| Model Number | Part Number | Description | Torque Range | Drive Type | Weight | Additional Feature |
Additional Feature
|
| Sturtevant Richmont DTC-4 | 10680 | DTC DIGITAL TORQUE WRENCH | 10-50 IN-LBS (1.1-6 NM) | 10-50 in-lb (1.1-6 Nm) | Interchangeable Head (Locking Pin) | 1 Lb. |
Dovetail Pin/Spring*
|
|
| Sturtevant Richmont DTC-25 | 10681 | DTC DIGITAL TORQUE WRENCH | 60-300 IN-LBS (7-34 NM) | 60-300 in-lb (7-34 Nm) | Interchangeable Head (Locking Pin) | 1.2 Lb. |
Dovetail Pin/Spring*
|
|
| Sturtevant Richmont DTC-75 | 10682 | DTC DIGITAL TORQUE WRENCH | 180-900 IN-LBS (20-102 NM) | 180-900 in-lb (20-102 Nm) | Interchangeable Head (Locking Pin) | 1.3 Lb. |
Dovetail Pin/Spring*
|
|
| Sturtevant Richmont DTC-150 | 10683 | DTC DIGITAL TORQUE WRENCH | 360-1800 IN-LBS (41-203 NM) | 360-1800 in-lb (41-203 Nm) | Interchangeable Head (Locking Pin) | 1.5 Lb. | Dovetail Pin/Spring* | Bidirectional |
| Sturtevant Richmont DTC-250 | 10684 | DTC DIGITAL TORQUE WRENCH | 600-3000 IN-LBS (68-339 NM) | 600-3000 in-lb (68-339 Nm) | Interchangeable Head (Locking Pin) | 2.2 Lb. | Dovetail Pin/Spring* | Bidirectional |
| Sturtevant Richmont DTC-5 | 10685 | DTC DIGITAL TORQUE WRENCH | 12-60 IN-LBS (1.4-7 NM) | 12-60 in-lb (1.4-7 Nm) | Interchangeable Head (Locking Pin) | 1 Lb. | Dovetail Pin/Spring* | Bidirectional |
| Sturtevant Richmont DTC-80 | 10686 | DTC DIGITAL TORQUE WRENCH | 192-960 IN-LBS (22-108 NM) | 192-960 in-lb (22-108 Nm) | Interchangeable Head (Locking Pin) | 1.3 Lb. | Dovetail Pin/Spring* | Bidirectional |
