SCS Concepts: Test Benches

SCS Concepts: Test Benches

SCS Concept produces a complete range of test benches for control and calibration of all kind of tools (hydraulic, electronic, impulse, torque wrenches). With wheels and battery powered, they are the best instruments to be easily managed along the production line.

Test of all power tools and wrenches on the production line (Cm-Cmk and statistical control), with test functions (manual or automatic) and calibration, according to ISO 6789 and ISO 5393. Measurement of torque and angle produced by power tools. Results and traces are saved and transferred to remote databases. The bench FTY reproduces the real joint behavior, testing the tool in the same real condition of use.

Power tools test Benches

-They provide data traceability, statistical reports, tests scheduling and results analysis.
-They can be used as stand-alone benches or interfaced with software and database for the management of the quality control of the production line from the office desk.
-Capacity and number of transducers, as well as accessories for special applications, can be customized to meet the specific customer needs.

These benches can also be referred to as Calibration Carts, Calibration Benches, Torque Carts and Torque Benches

Benches for Tool Test:

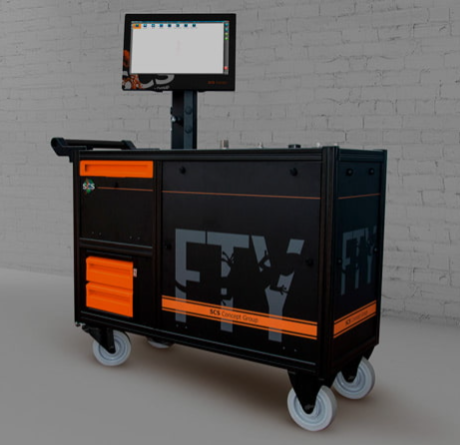

  • FTY - Joint simulator bench
  • MSB - Static transducers bench
  • Microbench - Static transducers micro bench (Maximum 250 Nm)

Benches for Automatic Test for Torque Wrenches:

  • AWT - Bench for automatic test of torque wrenches, especially for click wrenches
  • FTA - Automatic torque/angle wrench tester, especially developed for digital torque and torque/angle wrenches

Benches Hybrid:

  • FTS - Power tools and automatic wrench certification

Production and Rework Stations:
