High Torque Mechanical Pulse Tools
Panasonic EYFA31B | Remote Control

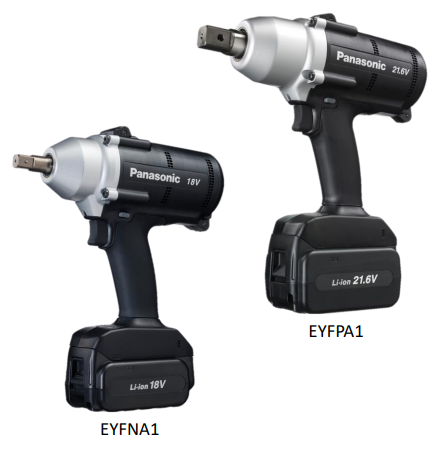

Quick Programming Guide with Remote for EYFNA1 | EYFPA1
| Button | # of Pushes | Setting Mode | Tool Display | Description |
| A | 0 times | Torque setting | 1~30: Shut-off F: Non-shut off |
Select stage with ＋/－button. Initial setting is 「F」.
|
| A | 1 time | Flush (Snug torque) detection mode setting | L1: Stage1 L2: Stage2 |
Select stage with ＋/－button. Initial setting is 「L1」.
L1: For applications with no pulses before the flush point (fragile material) L2: For applications when the tool pulses before achieving flush point |
| A | 2 times | Buzzer setting | b0: No buzzer b1: Buzzer with OK b2: Buzzer with NOK |
Select stage with ＋/－button. Initial setting is 「b0」.
|
| B | 1 time | LED light | d1: by LED button (for 5min) d2: by trigger switch |
Select stage with ＋/－button. Initial setting is 「d1」.
|
| B | 2 times | Rundown error detecting | 0～30 = Off 1～3.0 = .1 to 3.0 sec |
Select stage with ＋/－button. Initial setting is 「0」.
If the clutch is activated before the programmable minimum runtime, the tool alerts the operator to a NOK fastening. (0.1sec. per stage) |
| B | 3 times | Variable speed control | P0: Variable speed (ON) P1: Single speed (OFF) |
Select stage with ＋/－button. Initial setting is 「P0」
Speed can be controlled by use of the trigger. |
| C | 1 time | Restore Factory Default | F |
All settings return to initial setting. On "F" press the "Save" (Blue Button)
|
| C | 2 times | Maintenance interval alarm | 0～99= Off 1-99 = 10,000-990,000 Run Downs |
Select stage with ＋/－button. Initial setting is 「0」
When total fastening times are within 1 hour of preset maintenance interval, tool’s display blinks notifying the operator. Once tool reaches the preset interval, the tool is looked out from further use. |
| C | 3 times | Out of range disable function | C0: OFF C1: ON |
Select stage with ＋/－button. Initial setting is 「C0
In the event that wireless communication cannot be completed between the tool and the qualifier, the tool will be disabled and cannot be operated. |
| C | 4 times | Communication Mode | 90: One-Way 91: Two-Way |
Only Availble with models that support 2-way communication
Toggle between 1-way mode and 2-way mode |
| D | 1 time | Cross thread reduction | R0: Off R1:360°reverse (ON) |
Select stage with ＋/－button. Initial setting is 「R0」
Tool first reverses 360 degree, aligning the threads, greatly reducing the possibility of cross threads. |
Step 1 Select Tool & Initial Torque Setting Step 2 Flush Detection Level Adjustment
1. Choose correct tool and fastener size from the chart above
2. Set tool torque stage according to the chart, using default L1 flush detection
3. Rundown fastener and audit with torque wrench
4. If parts are not flush proceed to Step 2
5. If parts are flush and torque is not reached proceed to Step 3
Step 2 Flush Detection Level Adjustment
1. Adjust L mode from L1 to L2
2. Rundown the fastener and confirm the parts
are flush by VISUAL Check.
3. Proceed to Step 3
Step 3 Set Final Torque StagE
1. Perform static audit on fastener with a digital
torque wrench
2. Adjust target torque 1-30 until target torque
is achieved
3. Test and verify repeatability
4. Record setting in the Tool Setup Work Sheet
Setting Up High Torque Mechanical Pulse Tools On New Applications
Method for New Installations
- Obtain Application Specifications
- Determine tool for application
- Set up tool on application
- verify tool on application
- Record to worksheet
- Verify tool in Calibration Lab
- Record to worksheet
Setting Up High Torque Mechanical Pulse Tools On New Applications Guide
1. Obtain Application Specifications
• Specs – Obtain the target torque, tolerance, extensions and sockets used for the application.
• Joint Type – Determine the joint type (Hard 30°, Medium-Hard 60°, Medium-Soft 180°, Soft 360°. Angle declared by rotating the fastener from flush (50%) to target torque (100%)
➢ Dry Loctite, Lock Nuts, etc. will possibly cause a medium-soft or soft joint.
2. Determine Tool For Application
• Look Up The Tool – Use the torque curve graphs to select the tool and be sure to use the joint type determined from the torque charts .
• Select Tool – On the torque graph, locate the target torque on the left column; follow the line to the right to select the tool
Follow the chart directly down to obtain an estimated starting point to program the tool.
➢ Suggestion – If more than one tool can be used in the torque range then consider using a larger tool on Medium-Soft/Soft joints and a smaller tool on Hard/Medium Hard joints.
3. Program The Tool Settings
• Set the Torque – Adjust the tools torque setting (Program Setting)(1~30) to the desired torque from the torque charts.
• Flush Detection – Start with the default L1 flush detection (L1-L2)
4. Run The Tool On The Application
• Run The Tool - Run the tool on the application and be sure to hold the trigger until the tool shuts off.5. Audit The Fastener - Conduct a static/residual audit of the fastener to verify accuracy.
• Flush Point Mode – If the tool pulses before achieving the flush point or parts are not
pulled together, set the tool to next “Flush Point” L1 – L2 until parts are flush
• Adjust Torque - If the torque isn’t achieved and parts are pulled together, adjust the tool’s Program Setting (1-30) to increase or decrease the torque until the residual audit target torque are the same
➢ If unable to achieve the required specifications, consider using a larger tool on Medium- Soft/Soft joints and a smaller tool on Hard/Medium Hard joints.
6. Record / Tool History
• Worksheet – Document the above information on the “Panasonic Assembly Tool Set Up
Worksheet”.
• Save Data – Record the Tools Model, Program Setting, Flush Point, Joint Type, Analyzer Settings, Sockets and Extensions.
7. Verify The Tool In The Calibration Lab
• Set Up Transducer – Set up the Analyzer/Software per manufacturers suggested settings.
• Adjust Simulator – Adjust the Joint Simulator per the transducer quick start guide.
• Transducer – Warm up the Joint Simulator and Tool before testing. Run 10 cycles on
the joint simulator to get the components warmed up and grease moving.
• Run The Tool – Run the tool on the Transducer with the Joint Simulator.
➢ Wait 5 seconds in between rundowns.
8. Record / Tool History
• Worksheet – Document the above information on the “Panasonic Assembly Tool Set Up
Worksheet”.
• Save Data – Record the Tools Model, Program Setting, Flush Point, Joint Type, Analyzer Settings, Sockets and Extensions.
Reinstating High Torque Mechanical Pulse Tools On Applications
Method For Reinstating Tools
1. Look up applications settings on worksheet
2. Set up from worksheet or "Replace" for 2-way mode
3. Verify tool in Calibration Lab
4. Run tool on application
5. Verify tool on application
6. Update Worksheet
Reinstating High Torque Mechanical Pulse tools
1. Look Up Application Setting On Worksheet
• Worksheet – Look up the application information on the “Panasonic Assembly Tool Set Up Worksheet”.
2. Set Up Replacement Tool
• Obtain Tool & Attachments – Obtain the tool, extensions and sockets for the application.
➢ 1-Way Wireless or Stand-alone– Referring to the worksheet, program the tool to the same settings as recorded previously, confirming the torque, flush detection and other features used with the previous tool using the remote control. Then, if connected to a controller, select “Replace”.
➢ 2-Way Wireless (90-91) - Change the tool from 1-way to 2-way with the remote control. Then, on the controller, select the tool from the menu in the controller to be replaced.
Select “Replace”. The previous parameters will be saved to the new tool of same model number.
3. Verify The Tool In The Calibration Lab
• Set Up Transducer – Set up the Analyzer/Software per the settings recorded in the worksheet.
• Adjust Simulator – Adjust the Joint Simulator per the recorded washer thickness in the worksheet.
• Transducer – Warm up the Joint Simulator and Tool before testing. Run 10 cycles on the joint simulator to get the components warmed up and grease moving.
• Run The Tool – Run the tool on the Transducer with the Joint Simulator.
➢Wait 10 seconds in between rundowns.
4. Run The Tool On The Application
• Run The Tool - Run the tool on the application and be sure to hold the trigger until the tool shuts off.
• Audit The Fastener - Conduct a static/residual audit of the fastener to verify accuracy.
• Adjust Torque - If the torque is out of specification, adjust the tool’s Program Setting (1-30) to increase or decrease the torque until the residual audit is within specification.
➢ If unable to achieve the required specifications, double check the tools set up (settings & attachments) for any inconsistences.
5. Record / Tool History
• Worksheet – Update the worksheet with the above information if any changes were made to the tool, settings or attachments. Update Torque Analyzer setting, washers, filters and pulse tool compensation
