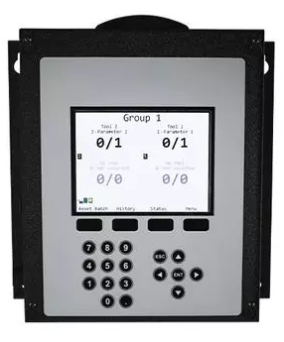

Panasonic: Assembly Tool Controllers

Panasonic: Assembly Tool Controllers

Ensure high-level error proofing while improving productivity and quality control on your assembly line. Panasonic Multi-Tool and Single-Tool assembly controllers provide expansion capability so you can program up to 16 power tools, simultaneously or sequentially with EYFR03 and EYFR04 series. Gain the versatility your production process demands. Deliver advanced error-proofing, quality control and increased productivity for any assembly line while eliminate assembly errors for good.

Key Features

  • 1, 2 & 16 Tool versions available
  • Error proofing with multiple Panasonic wireless programmable tools
  • Program up to 16 Panasonic tools simultaneously or sequentially with 2-way communication
  • Multi communication protocols included for data collection: Open Protocol, Ethernet IP, Toolsnet, ProfiNet, Digital I/O, PFCS
  • Operator visual and audio feedback
  • Secure 802.15.4 wireless communication with a range of up to 33 ft (10m)
  • All controllers have networking capability
  • Enable/Disable tools
  • Torque & Angle Data Collection
  • 2-way communication allows for parameter selection from controller

Controllers:

Models Graphics display Multiple Interfaces Number of Tool Connectivity Number Of Tools Simultaneously Tool Sequencing 2-Way Radio Communication
Discrete Inputs/Outputs
EYFR02-1 No N/A 1 (Option to upgrade to 2 tools with additional fee) Yes Yes Yes 2/4

EYFR02-2

 No N/A 2 Yes Yes Yes 2/4
EYFR03A Yes N/A 16 16 16 Yes 8/12
EYFR03B
 Yes N/A 16 16 16 Yes N/A
EYFR04A Yes Yes 16 4 4 Yes 8/12



Compatible Tools:
EYFGA1NR, EYFGA2NR, EYFGA3NR- More Info
EYFNA1CRT, EYFNA1PRT, EYFPA1JRT, EYFNA1CR,  EYFNA1JR, EYFNA1PR, EYFPA1JR- More Info
EYFLA7AR, EYFLA8AR, EYFLA8CR, EYFLA8PR, EYFLA9CR, EYFLA9PR, EYFMA2CR, EYFMA2PR- More Info
EYFMH1RC, EYFMH1RP, EYFMH2RC, EYFMH2RP, EYFNH1RC, EYFNH1RP- More Info
EYFLF1RA, EYFLF1RC, EYFLF1RP, EYFLF2RA, EYFLF2RC, EYFLF2RP- More Info



For more articles about Panasonic products Click Here


Click the link here to view and download the entire Panasonic Assembly Tools Catalog


Contact us with any questions or for more information
