Panasonic: Accessories for Low Torque Assembly Tools
Below is a compatibility table built to explain, depending on which tool or kit you have, which chargers, batteries and in some cases clutch covers are needed. Not all tools were built to use a clutch over, those tools have different clutch adjustment mechanisms.
| TOOL KIT | BARE TOOL | BATTERY | CHARGER |
CLUTCH COVER
|
| EY6220N | EY6220 | EY9221B | EY0L11B | No options |
| EY6220NQ | EY6220 | EY9221B | EY0L11B | Not options |
| EY7410LA2S | EY7410 | EY9L10B | EY0L11B | EY9X007E |
| EY7410LA1C | EY7410 | EY9L10B | EY0L11B | EY9X007E |
| EY7411LA1S | EY7411 | EY9L10B | EY0L11B | EY9X007E |
| EY7420LA2J | EY7420X | EY9L20B | EY0L20B |
WEYFEA1N3137
|
| EYFEA1N | EYFEA1N | EY9L20B | EY0L20B |
WEYFEA1N3137
|
| EYFEA1N2S | EYFEA1N | EY9L20B | EY0L20B |
WEYFEA1N3137
|
Reference Picture for Accessories
Bare Tool
EY6220N & EY6220NQ (2.4V Ni-MH Battery)

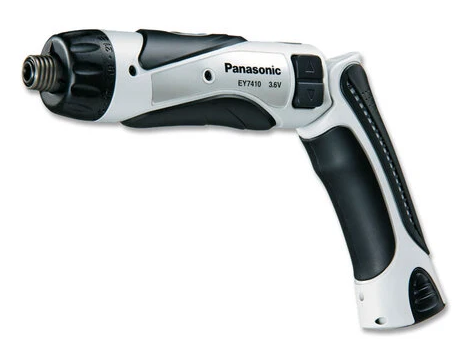

EY7410LA2S & EY7410LA1C (3.6V Li-ion Battery)
EY7411LA1S (3.6V Li-ion Battery)
EY7420LA2J & EY7420X (7.2V Li-ion Battery)
EYFEA1N2S & EYFEA1N (7.2V Li-ion Battery)
Batteries
Chargers
Clutch Covers
EY9X007E
WEYFEA1N3137
To view the brochure for the Best Practices and Setup Guides Click Here
For more articles about Panasonic products Click Here
Click the link here to view and download the entire Panasonic Assembly Tools Catalog
Contact us with any questions or for more information
