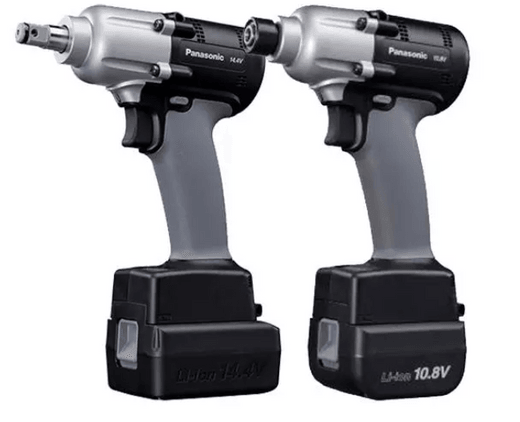

Panasonic: AccuPulse® HR Series
AccuPulse tools are ergonomically designed with worker safety top of mind. Compact and balanced with virtually no torque reaction to create a healthier, more productive work environment. Offering a full line of tools featuring a torque controlled range of 3-120Nm and a choice of 1/4”, 3/8” and 1/2” drives. A modern cordless design allows total freedom of movement for greater production efficiency.
KEY FEATURES
- 3-120Nm torque control range
- Available with wireless 2-way communication for advanced error proofing
- Can function like a virtual socket tray with wireless version
- High resolution encoder ensures precise fastening
- Innovative proprietary drive mechanism provides high torque while minimizing vibration on higher torque models
- 7 flush point detection levels for increased accuracy on varying joint types
- Advanced programmable features for higher worker productivity and plant automation
Panasonic AccuPulse HR Shut-off Torque Driver Models:
| Model | Torque Range | Communication | Drive Size | Battery |
| EYFLA7A | 3-22Nm in Shut-off mode | None | 1/4” Hex Quick Change (A) | 10.8V |
| EYFLA7AR | 3-22Nm in Shut-off mode | 2 Way Radio (R) | 1/4” Hex Quick Change (A) | 10.8V |
| EYFLA8A | 6-30Nm in Shut-off mode | None | 1/4” Hex Quick Change (A) | 10.8V |
| EYFLA8AR | 6-30Nm in Shut-off mode | 2 Way Radio (R) | 1/4” Hex Quick Change (A) | 10.8V |
| EYFLA8C | 6-30Nm in Shut-off mode | None | 3/8" Square Drive C-Ring W/ Through Hole (C) | 10.8V |
| EYFLA8CR | 6-30Nm in Shut-off mode | 2 Way Radio (R) | 3/8" Square Drive C-Ring W/ Through Hole (C) | 10.8V |
| EYFLA8P | 6-30Nm in Shut-off mode | None | 3/8" Square Drive Pin Detent (P) | 10.8V |
| EYFLA8PR | 6-30Nm in Shut-off mode | 2 Way Radio (R) | 3/8" Square Drive Pin Detent (P) | 10.8V |
| EYFLA9C | 20-60Nm in Shut-off mode | None | 1/2" Square Drive C-Ring W/ Through Hole (C) | 10.8V |
| EYFLA9CR | 20-60Nm in Shut-off mode | 2 Way Radio (R) | 1/2" Square Drive C-Ring W/ Through Hole (C) | 10.8V |
| EYFLA9P | 20-60Nm in Shut-off mode | None | 1/2" Square Drive Pin Detent (P) | 10.8V |
| EYFLA9PR | 20-60Nm in Shut-off mode | 2 Way Radio (R) | 1/2" Square Drive Pin Detent (P) | 10.8V |
| EYFMA2C | 25-120Nm in Shut-off mode | None | 1/2" Square Drive C-Ring W/ Through Hole (C) | 14.4V |
| EYFMA2CR | 25-120Nm in Shut-off mode | 2 Way Radio (R) | 1/2" Square Drive C-Ring W/ Through Hole (C) | 14.4V |
| EYFMA2P | 25-120Nm in Shut-off mode | None | 1/2" Square Drive Pin Detent (P) | 14.4V |
| EYFMA2PR | 25-120Nm in Shut-off mode | 2 Way Radio (R) | 1/2" Square Drive Pin Detent (P) | 14.4V |
