Nexonar: Motion Capture

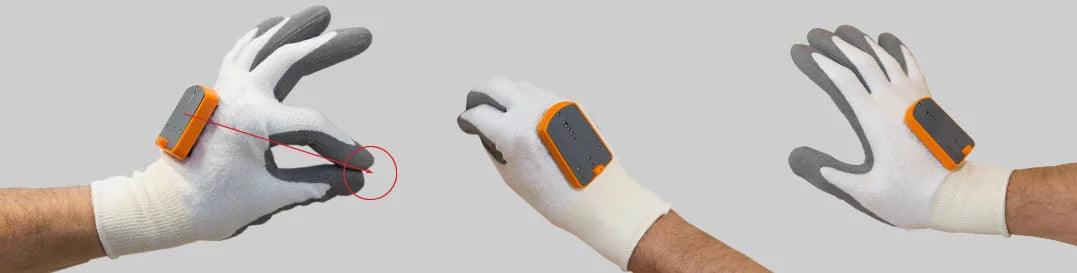

The nexonar Assembly Scout is connected with a nexonar Single Camera. This is adjusted in the direction of the intervention areas. A nexonar Tracker is located on the glove or on the arm of the worker. The camera picks up the signals of the nexonar Tracker with 6DOF in virtual real time. Several Trackers can be captured with a nexonar Single Camera in an area of approximately 8.8 x 4.8 m.
A nexonar Single IR Camera System records a work area with a depth of 0.2 - 5.5 m. With a single nexonar wide-angle camera in a range up to 20 m, depending on the size of the nexonar IR tracker and the accuracy requirements relevant for the application.
The system can be quickly retrofitted to workplaces. The component boxes do not need complicated wiring. No additional sensors are required for quality assurance.
Even without an ERP system and connection to a control net- work, the Assembly Scout is simple to use.
The nexonar Assembly Scout can be aligned to your application in a short time.
The worker makes contact on a calibration button with a tweezers grip and sets the gripping positions of his finger position by clicking. Now the positions of the two finger tips caught by the 3D camera.
With the help of a nexonar Hard Probe Lite the contact areas of the boxes and the grip sequences can be set. The alignment is easily and quickly done with the nexonar software "Assembly Scout". Different formulas can be configured or loaded.
