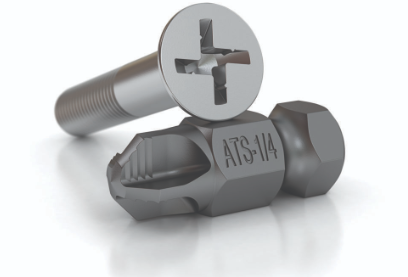

Phillips Drive System: ACR® Ribbed TORQ-SET®
Offers optimum torque while protecting against cam-out
With the ACR® TORQ-SET® Offset Cruciform Drive System a specific sized driver inserts and removes each diameter fastener so that optimum torque is provided in every size. Interlocking ribs applied to the removal side of the driver bit and screw surface ensure fast removal even when the fastener is corroded, seized or frozen. ACR® TORQ-SET® Offset Cruciform Drive System meets the demands of high torque applications without cam-out.
DRIVER SIZES
0 THRU 1.5 INCH
SCREW SIZES
#0 THRU 1 INCH
Features & Benefits
ACR® ribs
-Improved removal without cam-out
-Off-angle driving ability
-Reduces worker fatigue
Offset cruciform shape with straight wing walls
-Greater torque transfer
Removal walls larger than drive walls
-Facilitates disassembly without drill outs
Specific driver for each diameter fastener
-Assures optimum torque for each size
-Assures strong head configuration
Compatible with standard TORQ-SET® drivers
-Allows use of standard tools with ribbed screws
PSC quality inspections
-Assures global system quality and compatibility
This information was provided entirely by The Phillips Screw Company
