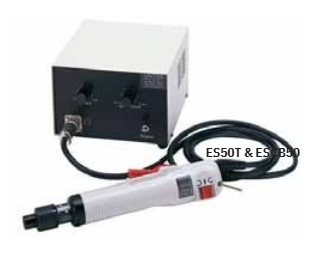

Ingersoll Rand: Delvo Low Torque ES Series
Features
- Torque Range: 0.4 – 9.0 in-lbs (0.05 – 1.0 Nm)
- Speeds: 500 – 900 rpm
- 24 V DC from controller (ESCB50)
- Precise torque control for more efficient and accurate production
- Variable speed and soft-start features built into controller
- Externally adjustable torque control
- Clean room models available
- Two bits, 1.5 m cable, and hanger bail included
- Recommended for low-torque applications requiring precise torque and speed control
Low Torque ES Inline Tool Models:
| Model | Voltage | Torque in-lb(Nm) | Torque in-lb(Nm) | RPM | Type |
Controller Required
|
| ES45T | 24 V DC | 0.50-4.7 (0.06-0.53) | 1.7-6.0 (0.19-0.68) | 600-900 | Lever Start | ESCB50 |
| ES50T | 24 V DC | 0.4-4.7 (0.05-0.53) | 2.0-9.0 (0.23-1.02) | 500-650 | Lever Start | ESCB50 |
| ES50TC | 24 V DC | 0.4-4.7 (0.05-0.53) | 2.0-9.0 (0.23-1.02) | 500-650 | Clean Room Lever Start | ESCB50 |
| Controller | Input Voltage | Output Voltage | Weight | Dimensions in(mm) | Soft Start | Speed Adjust |
| ESCB50 | 115 V AC | 24 V DC | 4.4 lb (1.9 kg) | 6.8"x5.8"x4.3" (171x146x108) |
Yes | Yes |
