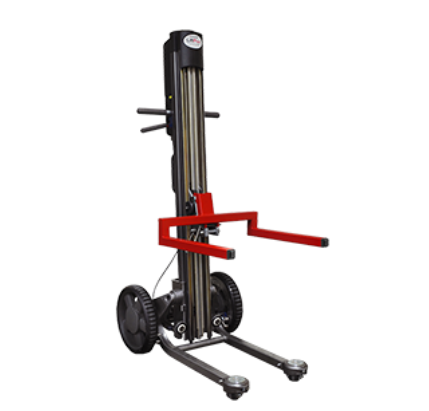

Magliner: LiftPlus®
If you need to lift heavy loads from the floor onto shelving or into working position, you don't want to have to rely only on the muscles and backs of your employees. It's wise to let a stacker lift those heavy or bulky loads.
A stacker is a large machine used in bulk material handling in manufacturing, warehousing, distribution, and general material handling. It combines features of a walk-behind pallet jack with those of a lift truck. The combination is typically called a lift stacker.
The operator walks behind the machine and uses simple one-hand control devices. The LiftPlus®; stacker is powered, and, unlike forklifts, there is no licensing requirement. Whether a forklift or stacker is the best option for your business will depend on load capacity needs.
- Minimizes bending and stretching
- Narrow footprint fits through most doorways and tight spaces; no fork truck required
- Provides variable height work surface
- Supports diverse loading requirements
- Electric screw drive lift system provides smooth, quiet operation
- Quick change adapter allows easy changes between attachments
- Up to 350 lb. lifting capacity (120 lb. on high-speed models)
- Lifts 2”/second (4”/second on high-speed models)
- Easy to operate; no certification required; see instructional video on magliner.com
Specifications:
| 48” Model | 60” Model | 72” Model | |
| Attachment height (fully lifted) | 48” | 60” | 72” |
| Attachment height (fully lowered) | 3.5” | 3.5” | 3.5” |
| Overall height | 60” | 72” | 84” |
| Overall depth | 37” | 37” | 37” |
| Weight (base unit) | 101 lbs. | 108 lbs. | 114 lbs. |
| High speed option | Yes | Yes | No |
| Battery capacity (median load) | 125-150 lift cycles when fully charged | 125-150 lift cycles when fully charged |
125-150 lift cycles when fully charged
|
| Overall width (14” chassis) | 25” | 25” | N/A |
| Overall width (25” chassis) | 33” | 33” | 33” |
| Chassis width | 14” or 25” | 14” or 25” | 25” |
Custom Forks/end effectors:
We are able to help you build custom attachments and end effectors for whatever application you might need it for. Whether it's for carrying heavy and awkwardly shaped items, or maybe it's for a very specific item that needs to be moved around constantly. No matter what the case may be we are here to help bring your ideas to life.
Example:
IMPORTANT BATTERY CHARGING NOTE: The battery must be charged within 3 months of storage to prevent self-discharge. If the battery is not charged within 3 months of storage, permanent loss of capacity may occur. If the powered product will be used regularly, it is recommended that the unit be kept on a charger whenever it is not in use; the batteries will not overcharge. If the powered product is going to be stored and/or not in regular use, the batteries must go through a full charge cycle every 2 weeks to ensure battery life and duty cycle.
Contact us with any questions or for more information
