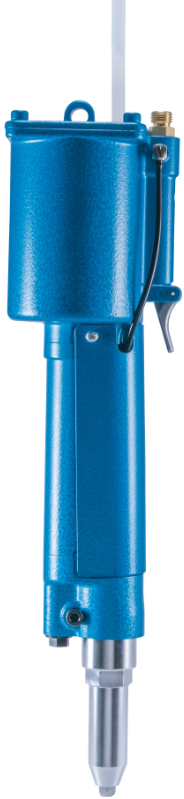

Lobster: ARV015MX (Vacuum System) Inline Type Air Riveter
Very popular for assembly line! Redesigned, improved operating performance!
・Straight ejection of the spent mandrels
・Stroke is increased. 14mm(.55") => 16mm(.63")
・Capable of pulling 4.8mm(3/16") Stainless rivets
・Easier maintenance process
・Vacuum system will maintain rivet to the nosepiece
①Straight ejection of the spent mandrels
・Easier to operate by similar location with balancer and air hose
・Decrease the clog of mandrels by making the Chute hose straight
②Stroke is increased. 14㎜(.55")(Conventional model ) ⇒ 16(.63") ㎜
③Capable of pulling 4.8mm(3/16") Stainless rivets
・with the Ultra Jaws and Soft-Set function
④Easier maintenance process
・Applying one-touch detachable Jaw Case
⑤Rivet will not fall off downwards
・Vacuum system will maintain rivet to the nosepiece
⑥Become more clear design without bulge
| Model No. | (Product) weight | size1 | size2 | size3 | size4 | size5 | size6 | Use range | Operating air pressure | Usage jaws | Traction power |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ARV015MX | 1.8kg | 401mm | 101mm | 64.5mm | 23mm | 41mm | 79mm | φ2.4・3.2・4.0・4.8mm | 0.5~0.6 | "M" | 8 |
