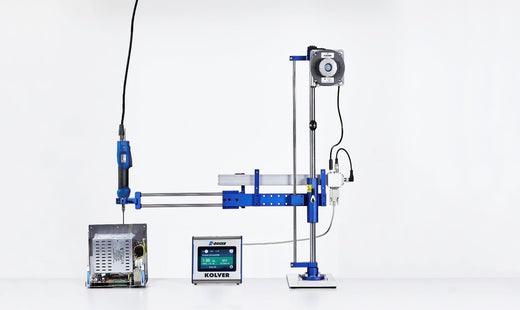

Kolver: K-TLS Intelligent Torque Arm System
What makes K-TLS a game changer?
If you don't know what the TLS system is, TLS = Torque Locating Sensor, this allows pre-set positions of the screw pattern to be registered and the screwdriving system will only activate when in the required location. This results both in error proofing and new operator onboarding!
K-TLS is Kolver's new intelligent positioning system for precision assembly, ensuring that every screw is not only fastened to the correct torque but also in the right position. The key innovation lies in its ability to be fully managed through the K-DUCER, eliminating the need for additional control units for arm positioning. With all the advanced features of the K-DUCER at your disposal, including connectivity and interoperability with MES and PLC systems, K-TLS simplifies the process.
The K-TLS system is fully managed through the K-DUCER, and no additional control unit is required.
What this means is that the end user can work with the same user-friendly interface that they're already familiar with, without having to switch back and forth between different control units.
Simply set the screw positions for a new or existing program and you're good to go.
Need to integrate the K-TLS into an existing MES? No problem.
The K-TLS is truly a plug-and-play solution, simplifying the assembly process and making error-proof assembly intuitive and accessible for everyone.
Key Features:
- Plug-and-play integration with the K-DUCER
- Control unit built into the K-DUCER for a streamlined solution
- Supports 24 sequences, 200 programs, and up to 150 screws per program
- High precision with programmable tolerance settings
- Real-time position data monitoring
- MES and PLC connectivity for seamless integration into existing systems
- Compatible with CAR, LINAR1, LINAR2, LINART, and SAR XYZ arms
- Use two arms and screwdrivers simultaneously via Dock05 with a single K-DUCER
Model:
| Model | Description | Max Torque | Min. Reach | Max. Reach |
| LINAR2/TLS1/A | Linear Arm | 13 in-lb | 7 inches | 26 inches |
| LINART/TLS1 | Linear Arm | 221 in-lb | 5 inches | 29 inches |
| LINAR1/TLS1 | Linear Arm | 221 in-lb | 7 inches | 26 inches |
| LINAR2/TLS1 | Linear Arm | 442 in-lb | 7 inches | 26 inches |
| SAR15 XYZ/TLS1 | Suspended Arm | 133 in-lb | n/a | n/a |
| CAR281/TLS1 | Telescopic Arm | 221 in-lb | 19 inches | 37 inches |
| CAR282/TLS1 | Telescopic Arm | 221 in-lb | 28 inches | 65 inches |
| CAR501/TLS1 | Telescopic Arm | 442 in-lb | 19 inches | 37 inches |
| CAR502/TLS1 | Telescopic Arm | 442 in-lb | 28 inches | 65 inches |
