Kolver: FAB & RAF Series Hand-held Clutch Screwdrivers
FAB & RAF Screwdrivers | Torque range 0.4 − 44 in-lb
FAB & RAF screwdrivers have been well-known in the electronic industry since we first developed them in the early 1990s. FAB and RAF series are Kolver's powerful, reliable and truly cost-effective tools.
Quick to set up, easy to use
FAB and RAF tools are incredibly easy to install and operate. The torque is set externally: you’ll only have to turn the clutch adjusting nut according to the required torque setting. Each screwdriver works in combination with a control unit. Its electronic control circuit cuts the power supply to the screwdriver motor in response to the clutch action as soon as the pre-set torque has been reached.
Simple maintenance
Replacing carbon brushes and greasing the gears once a year is all you need for maintenance. EDU1FR control units for FAB and RAF screwdrivers feature maintenance-free, state-of-the-art electronics and no wearing components. This design results in very low current to the driver’s start switch and clutch switch to extend their life indefinitely.
Safe, clean and low noise
All FAB and RAF models come standard with ESD-safe housings against electrostatic discharge. Their electric motor makes them not only energy efficient but also free of pollutants and contributes to a quieter environment (noise within 55 dB(A). Ergonomic grip, lightweight and compact design for maximum operator comfort.
Basic and advanced functionalities
FAB and RAF work in combination with EDU1FR series controllers, acting as an AC to DC transformer and torque controller with adjustable slow start and speed. More features available when used in combination with EDU2AE/FR controller or EDU1FR/SG with ACE screw counter.
Available Housings
- INLINE – Inline versions available in lever start or push-to-start. Bit Drive: 1/4" hex quick change chuck
- PISTOL GRIP – Trigger start, pistol grip available with top connector (PP/FR/U) or bottom connector (PP/FR). Bit Drive: 1/4" hex quick change chuck

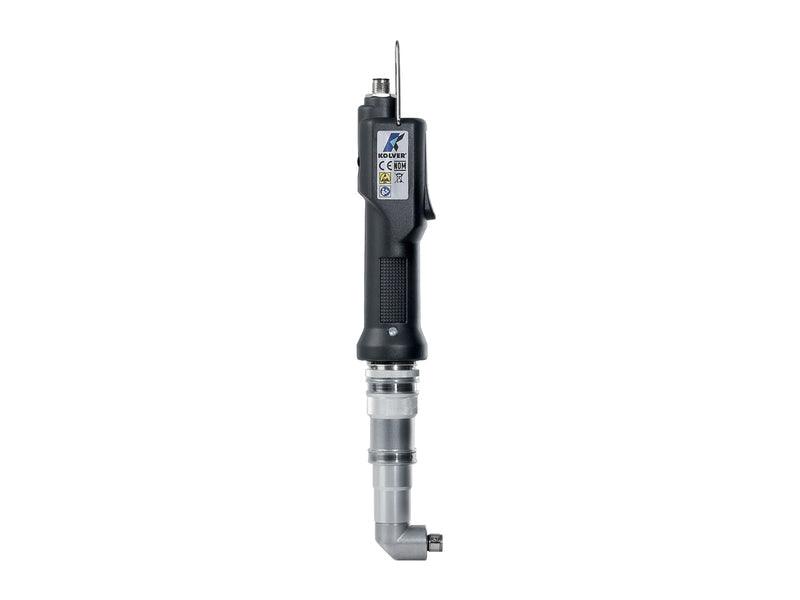

- ANGLE HEAD OPTION – 90° angle heads can be easily attached to inline models. Angle attachments are the ideal solution to operate where space is limited.
Inline FAB Screwdrivers:
| Model | Torque (in-lb) | RPM | Start Option | Part Number |
| FAB03SS/FR | 0.4 - 2.7 | 450 - 650 | Lever Start | 110003/FR |
| FAB10RE/FR | 0.4 - 7 | 600 - 1000 | Lever Start | 110010/FR |
| FAB12RE/FR | 1.8 - 10.6 | 600 - 1000 | Lever Start | 110012/FR |
| FAB12PS/FR | 1.8 - 10.6 | 600 - 1000 | Push-to-start | 112012/FR |
| FAB18RE/FR | 2.7 - 16 | 450 - 650 | Lever Start | 110618/FR |
| FAB18PS/FR | 2.7 - 16 | 450 - 650 | Push-to-start | 112618/FR |
Inline RAF Screwdrivers:
| Model | Torque (in-lb) | RPM | Start Option | Part Number |
| RAF32NS/FR | 6.2 - 28.3 | 600 - 1000 | Lever Start | 120032/FR |
| RAF32PS/FR | 6.2 - 28.3 | 600 - 1000 | Push-to-start | 122032/FR |
| RAF38NS/FR | 8 - 33.6 | 450 - 650 | Lever Start | 120638/FR |
| RAF38PS/FR | 8 - 33.6 | 450 - 650 | Push-to-start | 122638/FR |
| RAF50NS/FR | 8 - 44.3 | 400 - 700 | Lever Start | 120650/FR |
| RAF50PS/FR | 8 - 44.3 | 400 - 700 | Push-to-start | 122650/FR |
Pistol Grip Fab Screwdrivers:
| Model | Torque (in-lb) | RPM | Start Option | Part Number |
| FAB12PP/FR | 1.8 - 10.6 | 600 - 1000 | Bottom connector | 110013/FR |
| FAB12PP/FR/U | 1.8 - 10.6 | 600 - 1000 | Top connector | 110013/FR/U |
| FAB18PP/FR | 2.7 - 16 | 450 - 650 | Bottom connector | 110619/FR |
| FAB18PP/FR/U | 2.7 - 16 | 450 - 650 | Top connector | 110619/FR/U |
Pistol Grip RAF Screwdrivers:
| Model | Torque (in-lb) | RPM | Start Option | Part Number |
| RAF32PP/FR | 6.2 - 28.3 | 600 - 1000 | Bottom connector | 120033/FR |
| RAF32PP/FR/U | 6.2 - 28.3 | 600 - 1000 | Top connector | 120033/FR/U |
| RAF38PP/FR | 8 - 33.6 | 450 - 650 | Bottom connector | 120639/FR |
| RAF38PP/FR/U | 8 - 33.6 | 450 - 650 | Top connector | 120639/FR/U |
| RAF50PP/FR | 8 - 44.3 | 400 - 700 | Bottom connector | 120651/FR |
| RAF50PP/FR/U | 8 - 44.3 | 400 - 700 | Top connector | 120651/FR/U |
Control Units for FAB & RAF Screwdrivers:
| Model | Dimensions (in) | Weight (lb) | Part Number |
| EDU1FR | 5.4 x 4.6 x 2.6 | 1.3 | 010010/FR |
| EDU1FR/SG | 5.4 x 4.6 x 2.6 | 1.3 | 010010/FR/SG |
| EDU2AE/FR | 7.7 x 6.7 x 4.3 | 5.3 | 032000/FR |
