Ingersoll Rand: INSIGHT iQi Low Torque Precision Screwdriver
Product Description
Ingersoll Rand is excited to introduce the Ingersoll Rand® IQi Series, an inline low torque electric screwdriver with offerings available in transducerized and current control configurations. Customers will experience increased efficiency with faster set up, automated workflows and remote system access, while improving quality through advanced fastening strategies, real-time data traceability and the industry’s first tilt angle control. From high-volume assembly to quality-critical manufacturing, iQi Series delivers unmatched efficiency, precision and reliability at a reduced total cost of ownership.
Product Overview
- Transducerized Series Tools - 0.02- 15Nm
- Current Control Series Tools - 0.02- 15Nm
- One Controller to support Current control and Transducerized series tools
- Programmed through Touch screen or Remote web browser
- Program Up to 64 Jobs
- MES and Fieldbus support
INSIGHT iQi Overview (Tool)
- 2 Platforms- Transducer Control / Current Control
- Ergonomic lever design
- Ergonomic grip design >34mm on tools below 2.5 Nm
- ESD safe and overheat protection
- Color Identification Ring- Red = Transducerized, Silver* = Current Control
- Quick change and half moon drive
- 2 Different Body Sizes- 0.02-2.5 Nm, 2-15 Nm
- Reverse lever
- Durable brushless motor 1 million + Fault free cycles
- Rubber over mold grip for operator comfort
- Gearbox designed for durability and precision (Cmk>1.67@+/-7%)
- Color changing 360 degree LED status beam
Tilt Angle Control
-
Industry’s first Tilt Angle ensures precise tool alignment at correct angle against the Joint, this improves thread alignment and reduce cross threads.
- Eliminates cross threads and reduce work cost
- Maintains optimal alignment to prevent fastener and joint damage
- Delivers consistent fastening results when clubbed with torque and angle control

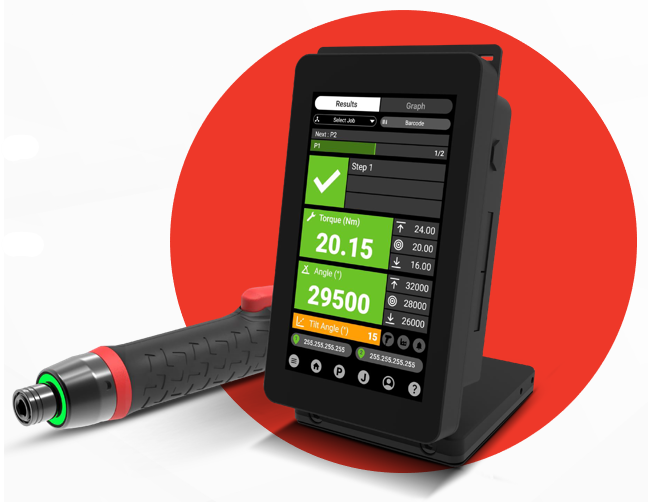

INSIGHT iQi (Controller)
- Remote browser support
- 7” color capacitive touch screen display
- Integrated Ports- Ethernet port x2, USB 2.0 x 4, HDMI x 1, RS232 x 1
- Configure up to 64 Jobs
- Supports quick software upgrades
- Rapid software-based backup and restore
- Live Trace during fastening operation
- 500,000 fastening records
- Intuitive user interface
- 8x8 integrated digital I/O’s
- Integrated MES and Fieldbus support- Open protocol, Ethernet IP, Profinet & Others
- Modular mounting option for: Bench mounts & Wall mounts
-
INCREASED EFFICIENCY
-
50% faster setup time. Reduce setup time by up to 50% with an intuitive web-based remote browser system, reducing the need for manual configurations through physical keypad and touch screen on controller leading to faster deployment.
-
100% Remote Accessibility. Complete remote access for programming and troubleshooting, minimizing on-site presence, lowering cost and maximizing operational flexibility.
-
-
IMPROVED QUALITY
- Reduce rework and quality cost. Detect and prevent tightening errors in real time using advanced torque, angle and seat control strategies, reducing rework and improving quality throughout the production process.
- Industry’s first Tilt Angle ensures precise tool alignment at correct angle against the joint, this improves thread alignment and reduce cross threads.
Controller Models
Transducerized - iQi - T Series:
| Model Number | Torque (Nm) | RPM | Drive Type | Activation |
| IQI2LT0017TQ4 | 0.02-0.17 | 50-1500 | 1/4" QC | Trigger Start |
| IQI2LT0017TM4 | 0.02-0.17 | 50-1500 | Half Moon | Trigger Start |
| IQI2LT0050TQ4 | 0.1-0.5 | 20-1000 | 1/4" QC | Trigger Start |
| IQI2LT0100TQ4 | 0.2-1 | 20-1000 | 1/4" QC | Trigger Start |
| IQI2LT0200TQ4 | 0.4-2 | 20-800 | 1/4" QC | Trigger Start |
| IQI2LT0250TQ4 | 0.5-2.5 | 20-500 | 1/4" QC | Trigger Start |
| IQI4LT0500TQ4 | 2-5 | 20-500 | 1/4" QC | Trigger Start |
| IQI4LT1000TQ4 | 4-10 | 10-300 | 1/4" QC | Trigger Start |
| IQI4LT1500TQ4 | 5-15 | 2-200 | 1/4" QC | Trigger Start |
| IQI2LT0017PQ4 | 0.02-0.17 | 50-1500 | 1/4" QC | Push To Start |
| IQI2LT0017PM4 | 0.02-0.17 | 50-1500 | Half Moon | Push To Start |
| IQI2LT0050PQ4 | 0.1-0.5 | 20-1000 | 1/4" QC | Push To Start |
| IQI2LT0100PQ4 | 0.2-1 | 20-1000 | 1/4" QC | Push To Start |
| IQI2LT0200PQ4 | 0.4-2 | 20-800 | 1/4" QC | Push To Start |
| IQI2LT0250PQ4 | 0.5-2.5 | 20-500 | 1/4" QC | Push To Start |
| IQI4LT0500PQ4 | 2-5 | 20-500 | 1/4" QC | Push To Start |
| IQI4LT1000PQ4 | 4-10 | 10-300 | 1/4" QC | Push To Start |
| IQI4LT1500PQ4 | 5-15 | 2-200 | 1/4" QC | Push To Start |
Current Controlled Inline Screwdrivers iQi - C Series:
iQi Nose Sleeve Options:
| Category | Part Number | Description |
| FRONT NOSE SLEEVE KIT | TK-IQI2LC-739P |
For push-to-start, Small current control tools
|
| FRONT NOSE SLEEVE KIT | TK-IQI2LC-739T |
For trigger start, Small current control tools
|
| FRONT NOSE SLEEVE KIT | TK-IQI2LT-739P |
For push-to-start, Small transducerized tools
|
| FRONT NOSE SLEEVE KIT | TK-IQI2LT-739T |
For trigger start, Small transducerized tools
|
| FRONT NOSE SLEEVE KIT | TK-IQI4LC-739P |
For push-to-start, Large current control tools
|
| FRONT NOSE SLEEVE KIT | TK-IQI4LC-739T |
For trigger start, Large current control tools
|
| FRONT NOSE SLEEVE KIT | TK-IQI4LT-739P |
For push-to-start, Large transducerized tools
|
| FRONT NOSE SLEEVE KIT | TK-IQI4LT-739T |
For trigger start, Large transducerized tools
|
