Ingersoll Rand: Delvo High Torque ES Series Inline
Features
- Torque Range: 4.0 – 40.0 in-lbs (0.5 – 4.5 Nm)
- Speeds: 400 – 2,000 rpm
- 115 V AC plug in with integral 3 m cable
- Precise torque control for more efficient and accurate production
- Two bits, two brushes, and hanger bail included
- Recommended for applications where precise torque control is required
Models:
| Model | Voltage | Torque in-lbs (Nm) | RPM | Weight lb (kg) | Length in (mm) | Drive in (mm) |
| Inline Push-to-Start | ||||||

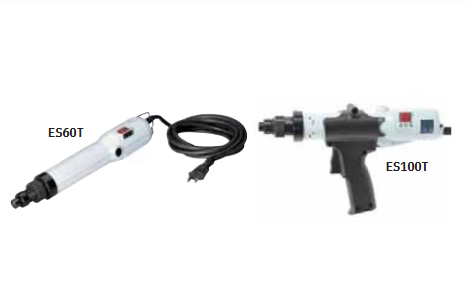

| ES90P | 115 V AC | 4.4 – 16.0 (0.5 – 1.8) | 2,000 | 1.50 (0.68) | 10.00" (254) | 0.25" (6.35) |
| ES60P | 115 V AC | 4.4 – 17.0 (0.5 – 1.9) | 1,000 | 1.50 (0.68) | 10.00" (254) | 0.25" (6.35) |
| ES80P | 115 V AC | 12.0 – 24.0 (1.4 – 2.7) | 1,200 | 1.50 (0.68) | 10.00" (254) | 0.25" (6.35) |
| ES70P | 115 V AC | 10.0 – 26.0 (1.1 – 2.9) | 700 | 1.50 (0.68) | 10.00" (254) | 0.25" (6.35) |
| Inline Lever Start | ||||||
| ES90T | 115 V AC | 4.4 – 16.0 (0.5 – 1.8) | 2,000 | 1.53 (0.69) | 10.00" (254) | 0.25" (6.35) |
| ES60T | 115 V AC | 4.4 – 17.0 (0.5 – 1.9) | 1,000 | 1.53 (0.69) | 10.00" (254) | 0.25" (6.35) |
| ES70T | 115 V AC | 10.0 – 26.0 (1.1 – 2.9) | 700 | 1.53 (0.69) | 10.00" (254) | 0.25" (6.35) |
| Trigger Start with Pistol Attachment | ||||||
| ES100T | 115 V AC | 15.0 – 40.0 (1.9 – 4.5) | 400 | 1.68 (0.76) | 10.00" (254) | 0.25" (6.35) |
| Push-to-Start with Pistol Attachment | ||||||
| ES100P | 115 V AC | 15.0 – 40.0 (1.9 – 4.5) | 400 | 1.65 (0.75) | 10.00" (254) | 0.25" (6.35) |
