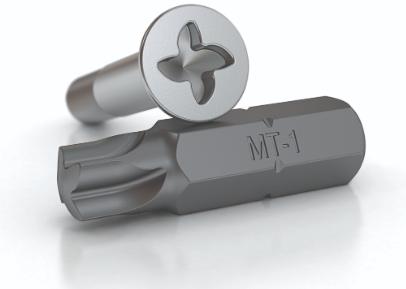

Phillips Drive System: MORTORQ® Spiral
Maximum reliability reduces replacement costs and shrinks production cycle time
The MORTORQ® Spiral Drive System offers outstanding operational and cost efficiencies. Its unique shape provides full contact of the driver over the recess wing resulting in extremely high torque capability without risk of damage to the fastener, tool, or surrounding area. This ensures that MORTORQ® fasteners are able to withstand damage and still be removed.
DRIVER SIZES
MTS-000 THRU MTS-8
SCREW SIZES
#0 (M1.5) THRU 1 IN (M25)
Features & Benefits
Patented curved wings
-Full driver-to-recess wall contact
-Lower loading per mm(squared)
-Optimum torque transfer
High damage tolerance
-Ability to remove damaged, corroded or seized fasteners
-Eliminates drill outs
Phillips Screw Company quality inspections
-Assures global system quality and compatibility
Shallow recess depth
-Stronger head-to-shank design
-Reduces weight
Thicker drive wings
-Stronger drive tool
Larger drive-to-recess clearance
-Enables off-angle driving
-Ability to remove fasteners even with heavy paint build up
High removal torque
-Assures removal of fastener under severe conditions
This information was provided entirely by The Phillips Screw Company
